Names and Functions of the Working Parts

*Note: Cameras shown without a body mount cap, hot shoe cover and triangle ring.

  • 1.

    Still image/Live View/Movie selector dial

  • 2.

    Smart Function button

  • 3.

    ISO button

  • 4.

    Shutter release button

  • 5.

    Main switch

  • 6.

    Front e-dial

  • 7.

    EV Compensation button

  • 8.

    Mode dial lock button

  • 9.

    Mode dial

  • 10.

    Mode dial lock release lever

  • 11.

    Shake Reduction button

  • 12.

    RAW button

  • 13.

    AF Mode button

  • 14.

    Focus method switch

  • 15.

    AE Metering/Delete button

  • 16.

    Operation lock button

  • 17.

    Green button

  • 18.

    Playback button

  • 19.

    Smart Function dial

  • 20.

    AE Lock button

  • 21.

    AF button

  • 22.

    Rear e-dial

  • 23.

    AF point selector lever

  • 24.

    Four-way controller

  • 25.

    OK button

  • 26.

    INFO button

  • 27.

    MENU button

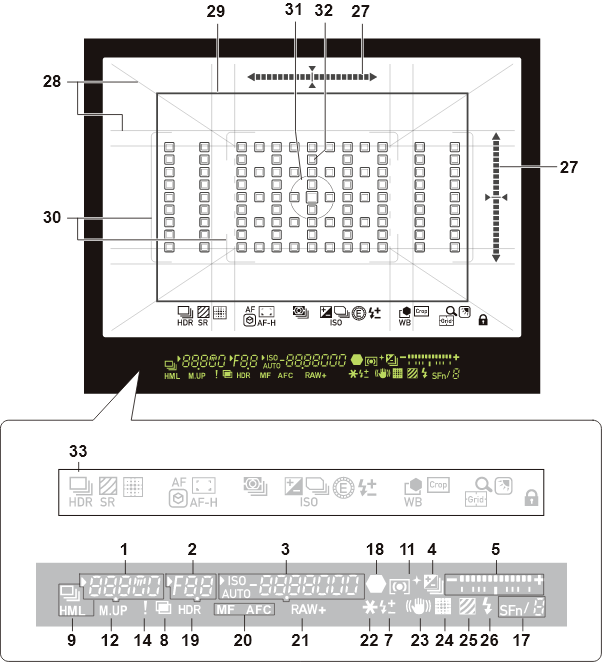

Viewfinder Display

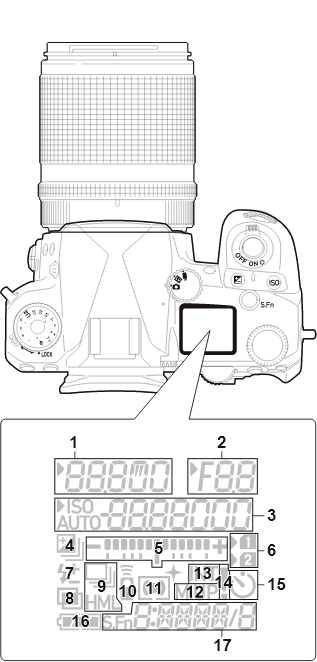

LCD Panel

  • 1.

    Shutter speed / Remaining processing time for Slow Shutter Speed Noise Reduction / AF Mode / Number of shots for Bracketing

  • 2.

    Aperture value

  • 3.

    ISO Sensitivity / Exposure compensation value / Image storage capacity / AF Active Area

  • 4.

    EV Compensation / Bracketing

  • 5.

    EV bar scale

  • 6.

    Card slot number

  • 7.

    Flash Exposure Compensation

  • 8.

    Multi-exposure

  • 9.

    Continuous Shooting

  • 10.

    Remote Control

  • 11.

    AE Metering

  • 12.

    Mirror Up

  • 13.

    Interval Shooting

  • 14.

    Warning Display

  • 15.

    Self-timer

  • 16.

    Battery level

  • 17.

    Smart Function

  • 18.

    Focus indicator

  • 19.

    HDR Capture

  • 20.

    Focus method

  • 21.

    File Format

  • 22.

    AE Lock

  • 23.

    Shake Reduction

  • 24.

    Pixel Shift Resolution

  • 25.

    Anti-Aliasing Filter Simulator

  • 26.

    Flash indicator

  • 27.

    Electronic level

  • 28.

    Grid display

  • 29.

    Cropping frame

  • 30.

    AF Frame

  • 31.

    Spot Metering Frame

  • 32.

    AF point

  • 33.

    Assigned Smart Function

Drive / Pixel Shift Resolution / AF Mode / AF Active Area / AE Metering / EV Compensation / Program Line / E-Dial / Flash Exposure Compensation / Custom Image / Crop / Zoom Review / Outdoor View Setting / HDR Capture / Shake Reduction / Focus Peaking / Hold AF Status / ISO Sensitivity / White Balance / Grid Guide / Operation Control Lock
