Name of the Working Parts
-
1.
Front e-dial
-
2.
Lock button
-
3.
Mode dial
-
4.
Shutter release button
-
5.
Power button
-
6.
Movie/Save destination memory switching button
-
7.
Fn/Delete button
-
8.
ADJ./Rear e-dial
-
9.
ISO/Left button
-
10.
MENU button
-
11.
White balance/Down button
-
12.
DISP button
-
13.
EV Compensation button
-
14.
Macro/Up button
-
15.
Playback button
-
16.
Drive/Right button
-
17.
OK button
Indicators on the Monitor

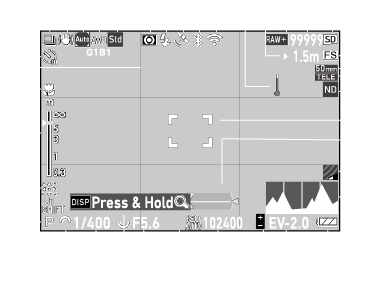

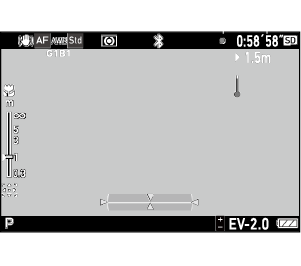

Shooting Screen
-
1.
Drive
-
2.
Shake Reduction/Movie SR/Horizon Correction
-
3.
Focus
-
4.
White Balance
-
5.
Image Control
-
6.
AE Metering
-
7.
Flash Mode
-
8.
GPS positioning status
-
9.
Bluetooth® communication
-
10.
Wireless LAN communication
-
11.
Temperature warning
-
12.
Snap Focus Distance
-
13.
File Format/JPEG Recorded Pixels
-
14.
Number of storable images
-
15.
Storage location
-
16.
Self-timer
-
17.
Grid Guide
-
18.
Macro Mode
-
19.
Focus bar/Depth of field
-
20.
Operation guide

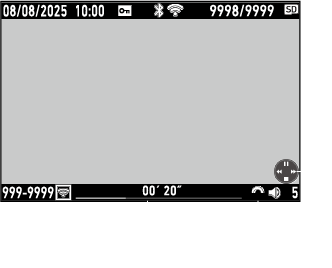

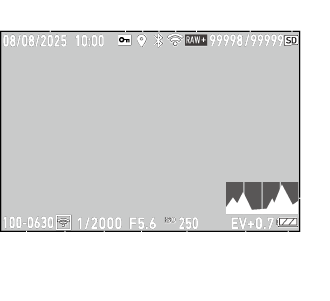

Playback Screen
-
1.
Shooting date and time
-
2.
Protect
-
3.
GPS information
-
4.
Bluetooth® communication
-
5.
Wireless LAN communication
-
6.
File Format/JPEG Recorded Pixels
-
7.
Current file/Total files
-
8.
Data source
-
9.
Histogram
-
10.
Folder number/File number
-
11.
Image transfer status
-
12.
Shutter speed
-
13.
Aperture Value
-
14.
ISO sensitivity
-
15.
Exposure compensation
-
16.
Battery level
-
17.
Length of time of the recorded movie/Elapsed time
-
18.
Operation guide
