This user-friendly function calculates the direction and distance to a given destination from the current position. You can either locate destinations using location data stored on recorded images, or register and/or assign them by uploading location data created on your PC.
| Compatible cameras |
645Z | - | 645D | ○ | K-3 Mark III | - | KF | - | KP | - |
|---|---|---|---|---|---|---|---|---|---|---|
| K-3 | - | K-5II | ○ | K-5IIs | ○ | K-5 | ○ | K-S2 | - | |
| K-S1 | - | K-70 | - | K-50 | - | K-30 | - | K-r | ○ | |
| K-01 | - | |||||||||
Input a desired destination using location data stored on recorded images or GPS location data obtained from social network websites. This function provides you with linear navigation from the current position to the destination, based on the obtained GPS location data.
Select a destination from preset points.
Select a destination from GPS data stored on recorded images.
Select a destination from location data files created on your PC.By sharing detailed data of shooting locations (including the camera's direction) from image files exchanged on the Internet or via e-mails, you can develop a communication network where you can easily and quickly move to desired shooting locations with the guidance of a navigation system.
This function is perfect for active outdoor photographers, as it not only simplifies the sorting and filing of their own images, but it also lets them easily plan exciting, interesting events, such as an orienteering competition using only photographic data as a clue, or a relaxed traveling shooting session without the need for a PC or smartphone.
Distination setup file
The O-GPS2 lets you register up to 40 locations as potential destinations. You can also save them as a "destination setup file" and save the file on an SD memory card as backup data.
You can save up to three destination setup files on a single SD memory card, meaning that a total of 120 locations (40 locations x 3 files) can be stored on the card.
When saving these files, simply follow the instructions presented on the Simple Navigation destination management screen.
[Example] When "GPSDATA_01" is assigned as a saved file title on an SD memory card.
You can read destination setup files (up to three files) stored on an SD memory card into your camera.
When reading in these files, simply follow the instructions presented on the Simple Navigation destination management screen.
Since only one file (with a maximum of 40 locations) can be read into the camera in a single operational sequence, you must repeat the sequence again to read in other files.
[Example] When files "My_select_01" to "My_select_03" are saved on an SD memory card.
If an SD memory card is reformatted, destination setup files stored on it are automatically erased. To avoid accidental loss of such files, we suggest that you copy these files onto your computer as a backup.
Original destination setup files
You can also create your original destination setup files on the computer and read them into the camera.
You can read a destination setup file stored on an SD memory card into the camera.
In this case, you may use three text files titled "GPS_DAT*.TXT" (* = 1, 2 or 3).
Files with other titles cannot be read into the camera.

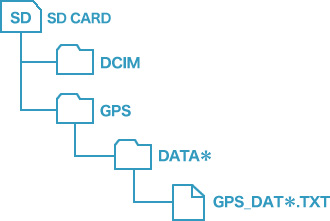

To construct a destination setup file, you must follow the diagram at right.
The numeral * of a DATA * folder must be identical with the numeral * of a GPS_DAT*.TXT file.
•When a destination setup file is read in from an SD memory card, the camera's existing destination setup data is automatically overwritten with the new read-in data while the existing data is erased.
•When saving the camera's destination setup data onto an SD memory card, the existing data on the selected DATA* folder is overwritten with the new data while the existing data is erased.
•With the PENTAX 645D, the SD2 slot must be used for saving and reading in the destination setup data.
The maximum volume of a destination setup file is 32KB (32,768 bits).
Note: When the data volume of a file exceeds 32KB, the excess data cannot be saved.
A maximum of 40 destinations can be registered in a single file.
Only one-bit letters, numerals and symbols, as shown below, can be used for destination setup file titles.
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |
| a | b | c | d | e | f | g | h | i | j | k | l | m | n | o | p | q | r | s | t | u | v | w | x | y | z |
| 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||||||||||||||||
| . | ( | ) | [ | ] | < | > | @ | - | _ | / | : | ; | ! | ? | * | # | + | = | $ | % | ' | " | { | } | ※ |
Note: * indicates a space.
A file title and destination data (names, latitudes and longitudes of destinations) can be stored in each file, and displayed on the camera's LCD monitor.
A file title is described in TITLE=title contents format.
Destinations data is described in DATA=destination, latitude, longitude format.
A maximum of 40 destinations can be stored in a single file.
For actual data description steps, refer to 6. File setup sample below.
The following is preset data.
TITLE=PENTAX
DATA=PENTAX_Itabashi JP,N35.765183,E139.691202
DATA=PENTAX_Shinjuku JP,N35.691744,E139.695467
DATA=PENTAX_Osaka JP,N34.676911,E135.507088
DATA=PENTAX_France,N48.93339,E2.240172
DATA=PENTAX_UK,N51.499112,W0.533009
DATA=PENTAX_Germany,N53.589735,E9.946554
DATA=PENTAX_USA,N39.75636,W105.21981
DATA=PENTAX_Canada,N43.604097,W79.734814
DATA=PENTAX_China,N31.199734,E121.444062
• File title: A maximum of 18 letters, numerals and symbols can be used.
• Destination name: A maximum of 18 letters, numerals and symbols can be used.
• Latitude data: A whole-number sequence is described by one or two numerals (from 0 to 90).
• Longitude data: A whole-number sequence is described by one to three numerals (from 0 to 180).
• A decimal fraction sequence of latitude and longitude data is described with a maximum of six numerals.
