HD PENTAX-D FA
85mmF1.4ED SDM AWNEW!

  • 35mm Full Frame
  • APS-C
  • Single Focus
  • DFA
  • Front
  • Back
  • Top
  • Side
  • Side

  • Side
  • Side
  • Side
  • Side
  • Side

  • Side
  • Side
  • Side
  • Side

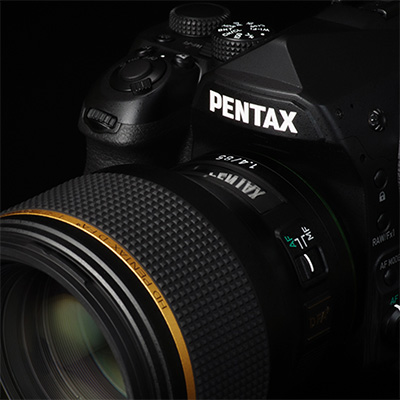

A large-aperture, medium-telephoto lens for use with K-mount digital SLR cameras

In developing the new generation of the top-of-the-line Star series, PENTAX conducted an extensive review of its in-house standards, demanding the most satisfying performance even for use with future PENTAX digital SLRs, which are expected to deliver higher image quality and better performance than current models. Developed in pursuit of ideal image quality, this new lens delivers superb imaging power, without relying heavily on the image sensor or image processer. It lets the photographer enjoy the entire picture-taking process by checking the subject in detail and in real time via a sharp, clear image produced by its high-grade optical viewfinder.

In order to assure the exceptional imaging power demanded in the new-generation, high-performance Star series, this new lens incorporates high-grade Super ED (Extra-low Dispersion) glass optical elements and an aspherical optical element to compensate various aberrations to a minimum — in particular, to effectively minimize axial chromatic aberration to prevent the generation of purple fringing in backlit situations. It also reduces distortion — a serious concern in portrait photography — to nearly zero at a focusing distance of four meters. In addition, PENTAX has developed a new ring-type SDM exclusively for this new lens to realize flawless, high-speed autofocus operation, while adopting an exterior design providing a firm grip to facilitate manual-focus operation. This new lens is designed not only to assure the highest imaging power currently possible, but also to optimize the joy of picture-taking.



*Please apply the latest updater of Digital Camera Utility 5 when you handle images taken by this lens on Digital Camera Utility 5. In case the software version is old, the name of this lens can not be displayed correctly. Digital Utility 4 and below can not display the name of this lens correctly.

*Contrast detection AF during live view may not be in focused with the K-S1.

Black

Included Accessories: Lens Case S130-160, Lens Hood PH-RBG82, Lens Cap O-LC82, Lens Mount Cap K

Buy

Sample Images

  • Aperture: F1.4,   Shutter speed: 1/125sec,   Focal length: 85mm,   White balance: Daylight,   ISO sensitivity: 100,   Finishing touch/Custom image: Portrait,   Captured by PENTAX K-1 Mark II   Photo by Shintaro Shiratori

  • Aperture: F13,   Shutter speed: 1/125sec,   Focal length: 85mm, White balance: Daylight,   ISO sensitivity: 100,   Finishing touch/Custom image: Portrait,   Captured by PENTAX K-1 Mark II   Photo by Shintaro Shiratori

  • Aperture: F2,   Shutter speed: 1/125sec,   Focal length: 85mm,   White balance: Daylight,   ISO sensitivity: 100,   Finishing touch/Custom image: Portrait,   Captured by PENTAX K-1 Mark II   Photo by Shintaro Shiratori

  • Aperture: F1.4,   Shutter speed: 1/640sec,   Exposure compensation: +0.3EV,   Focal length: 85mm,   White balance: Color Temperature Configuration,   ISO sensitivity: 200,   Finishing touch/Custom image: Bright,   Captured by PENTAX K-1 Mark II   Photo by Kentaro Fukuda

  • Aperture: F1.4,   Shutter speed: 1/20sec,   Focal length: 85mm,   White balance: Color Temperature Configuration,   ISO sensitivity: 100,   Finishing touch/Custom image: Bright,   Captured by PENTAX K-1 Mark II   Photo by Kentaro Fukuda

  • Aperture: F8,   Shutter speed: 1/8sec,   Exposure compensation: +0.3EV,   Focal length: 85mm,   White balance: Cloudy,   ISO sensitivity: 100,   Finishing touch/Custom image: Vibrant,   Captured by PENTAX K-1 Mark II   Photo by Kentaro Fukuda

  • Aperture: F1.8,   Shutter speed: 1/5000sec,   Exposure compensation: +0.3EV,   Focal length: 85mm,   White balance: Daylight,   ISO sensitivity: 200,   Finishing touch/Custom image: Bright,   Captured by PENTAX K-1 Mark II   Photo by Kentaro Fukuda

  • Aperture: F2,   Shutter speed: 1/80sec,   Exposure compensation: -1.3EV,   Focal length: 85mm,   White balance: AUTO WB,   ISO sensitivity: 400,   Finishing touch/Custom image: Natural,   Captured by PENTAX K-1 Mark II   Photo by Mitsuo Suzuki

  • Aperture: F1.6,   Shutter speed: 1/400sec,   Exposure compensation: -1EV,   Focal length: 85mm,   White balance: AUTO WB,   ISO sensitivity: 100,   Finishing touch/Custom image: Natural,   Captured by PENTAX K-1 Mark II   Photo by Mitsuo Suzuki

  • Aperture: F1.6,   Shutter speed: 1/800sec,   Exposure compensation: +1EV,   Focal length: 85mm,   White balance: AUTO WB,   ISO sensitivity: 400,   Finishing touch/Custom image: Natural,   Captured by PENTAX K-1 Mark II   Photo by Ichiro Fujisato

Main Features

New-generation, high-performance Star-series lens to deliver ideal image quality
Anticipating the further advancement of SLR camera bodies in the future, PENTAX has designed this lens to deliver extra-clear, high-contrast images with edge-to-edge sharpness by compensating various aberrations to a minimum, while greatly enhancing resolving power — two factors absolutely essential in the next-generation Star series. It provides exceptionally high imaging performance even at open aperture, a beautiful bokeh (defocus) effect and outstanding image rendition at close ranges — all reasons why it produces high-quality, well-defined images. It also boasts an extra-large F1.4 maximum aperture, useful with many different subjects in a range of applications, including portraiture with an effectively defocused background, handheld shooting of indoor scenes and scenic photography. It helps the camera to produce a bright, clear viewfinder image that will inspire the photographer’s creativity and imagination.
State-of-the-art optical technology

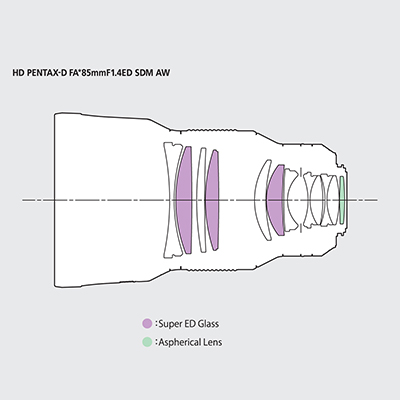

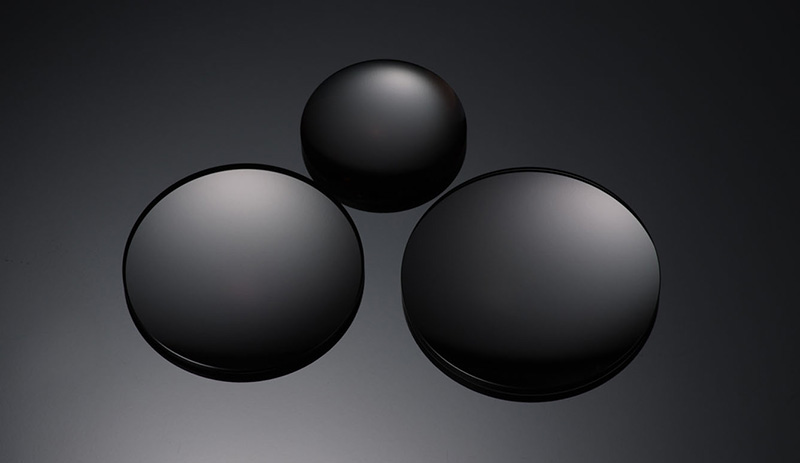

This lens incorporates three Super ED (Extra-low Dispersion) glass optical elements to effectively minimize chromatic aberration, and a glass-molded aspherical optical element to effectively compensate for spherical and comatic aberrations and field curvature to deliver extra-clear, high-contrast images with edge-to-edge sharpness, even at open aperture. It also reduces distortion to nearly zero at a focusing distance of four meters to deliver well-defined, distortion-free images over the entire focusing range, from the minimum focusing distance to infinity. This lens is also treated with high-grade, multi-layer HD* Coating, which reduces average reflectance in the visible ray spectrum to less than 50% of conventional multi-layer coatings, effectively reducing flare and ghost images to a minimum even in demanding lighting conditions such as backlighting.
* HD is the abbreviation of High Definition.

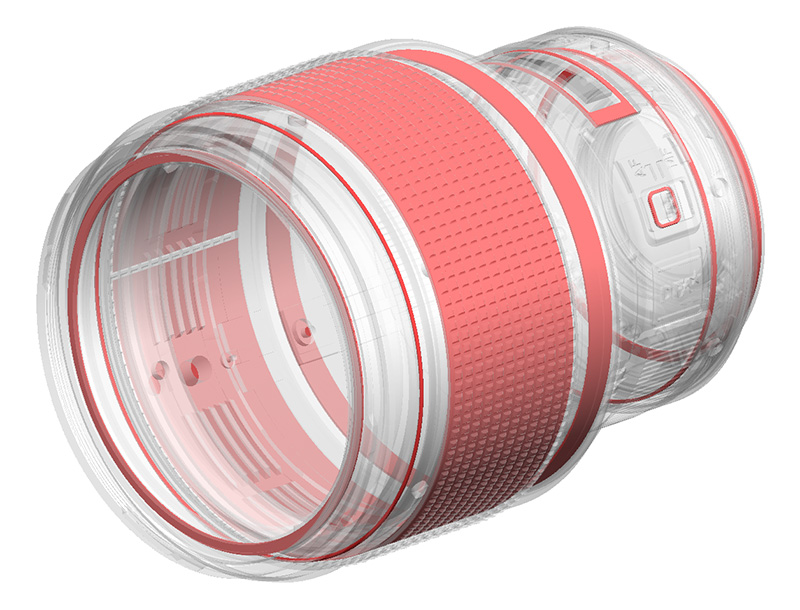

Dustproof, weather-resistant construction
Developed as an AW (All Weather) model, this lens features a dependable dustproof, weather-resistant construction with eight special seals to prevent the intrusion of water into the lens barrel. When paired with a dustproof, weather-resistant PENTAX digital SLR camera body, it assures a durable, reliable digital imaging system that performs superbly in demanding shooting settings — even in rain or mist, or at locations prone to water splashes or spray.

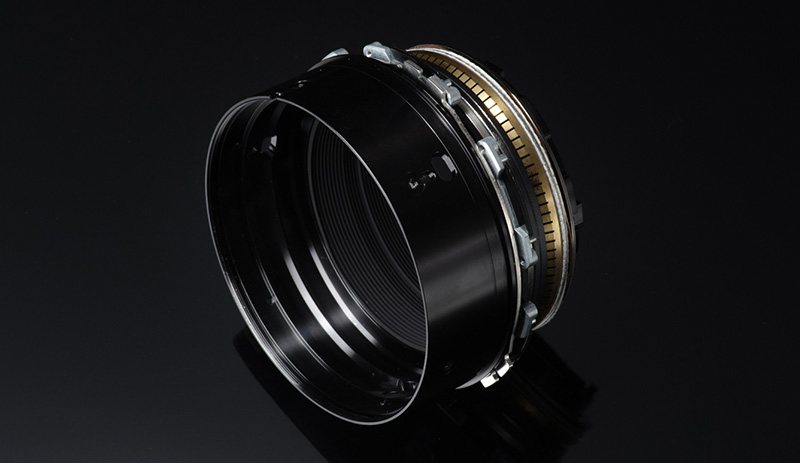

Exclusively designed, large ring-type SDM
In order to deliver the highest image quality possible over the entire focusing range — from the minimum focusing distance to infinity — this lens features an exclusively designed, large ring-type SDM to efficiently drive the focusing mechanism, which consists of a larger number of optical elements than ordinary lenses, and is required to shift heavy rear-optical-element groups in unison. Generating a torque approximately 1.3 times that of the unit installed in the HD PENTAX-D FA 50mm F1.4 SDM AW, this new SDM assures flawless, high-speed autofocus operation.

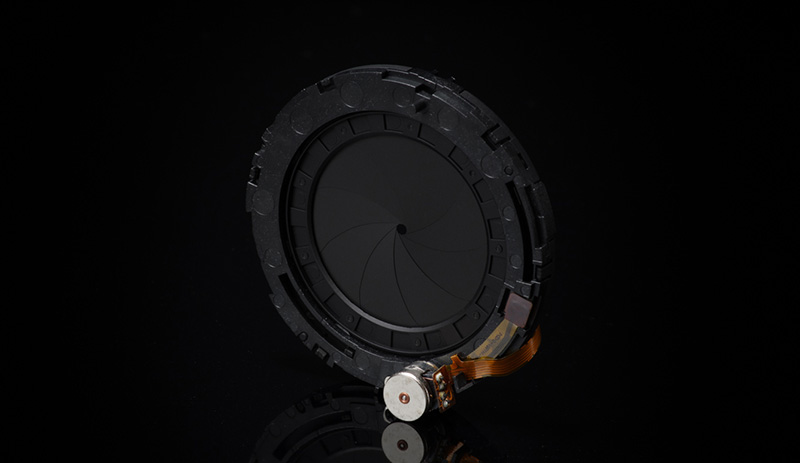

Electromagnetic diaphragm control, to provide high-precision exposure control during video shooting
USAGE NOTE:About KAF4 lens mount

Other features
  1. 1.Nine-blade, round-shaped diaphragm to produce a natural, beautiful bokeh (defocus) effect up to the F2.8 aperture setting, while minimizing the streaking effect of point light sources

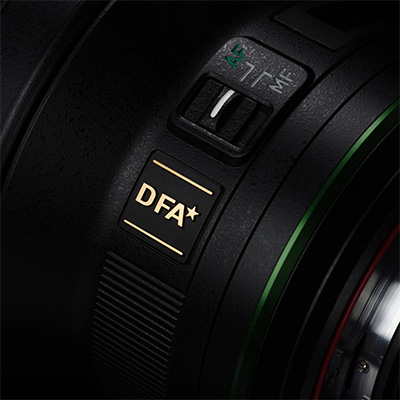

  2. 2.Exterior design that facilitates focus-ring operation in manual-focus shooting and provides a firm hold
  3. 3.Electromagnetic diaphragm-control mechanism* for flawless, high-precision exposure control during video recording

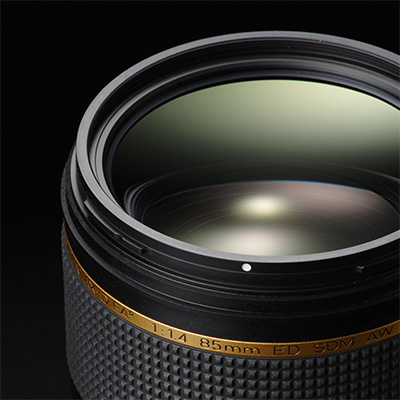

  4. 4.SP (Super Protect) coating to keep the front surface free of dust and spots

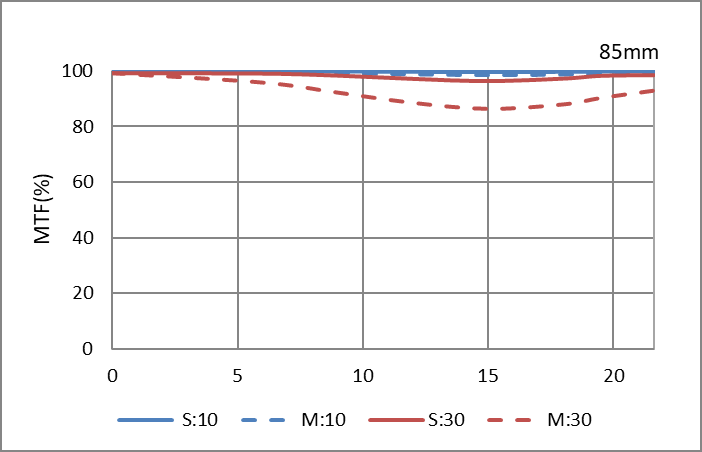

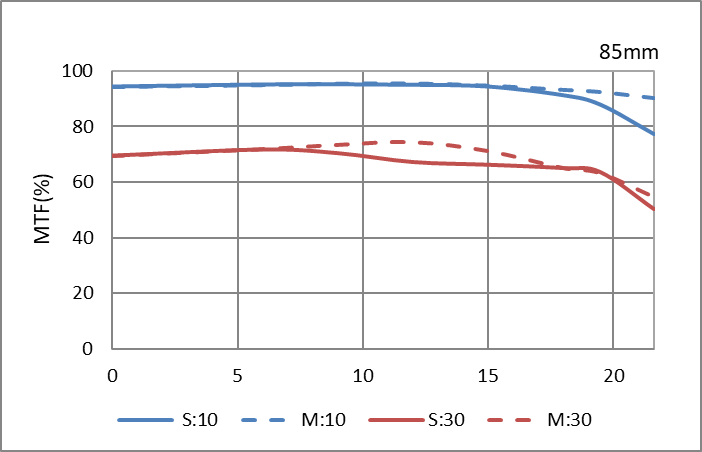

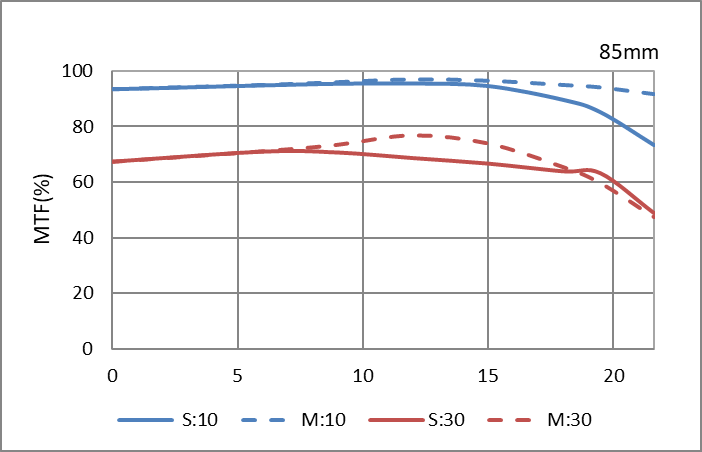

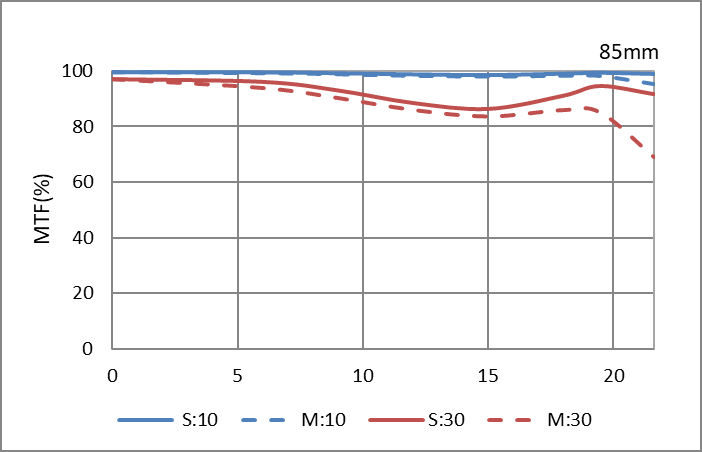

【MTF Chart】
Geometric optics MTF (MTF calculated without referencing the effects of light diffraction phenomenon)

F1.4

F4

F8

Wave optical MTF (MTF calculated referencing the effects of light diffraction phenomenon)

F1.4

Spatial Frequencies S:Sagittal M:Meridional
10 lines/mm
30 lines/mm
Focal length (Equivalent to 35mm format) 85mm
Equivalent to 130mm in 35mm format (when attached to PENTAX APS-C size DSLR cameras)
Maximum Aperture F1.4
Minimum Aperture F16
Lens construction 12 elements in 10 groups
Angle of View (Diagonal) 28.5°
(when attached to PENTAX 35mm full-frame SLR cameras)
19°
(when attached to PENTAX APS-C size DSLR cameras)

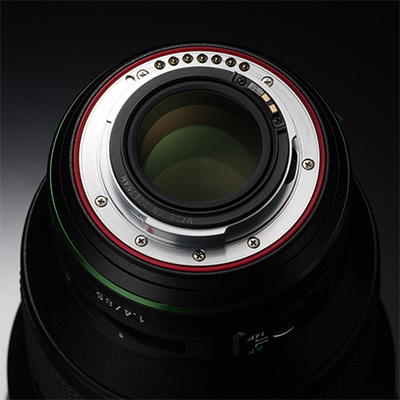

Mount KAF4
Minimum Focusing Distance 0.85m (2.8ft.)
Maximum Magnification 0.12x
Filter Diameter 82mm
Diaphragm Control Electromagnetic diaphragm
Fully automatic
Number of Diaphragm Blades 9
Rounded diaphragm (85mm:F1.4-F2.8)
Aperture Ring N/A
Tripod Mount N/A
Lens Hood PH-RBG82 (included)
Lens Cap O-LC82 (included)
Lens Case S130-160 (included)
Maximum Diameter x Length approx. 95mm x 123.5mm (approx. 3.7in. x 4.9in.)
Weight approx. 1255g / with hood approx. 1355g
(approx. 44.3oz./ with hood approx.47.8oz.)
Temperature -10°C - 40°C (14°F - 104°F)
Humidity 85% or less (no condensation)
Included Accessories Lens Hood PH-RBG82, Lens Cap O-LC82,
Lens Mount Cap K, Lens Case S130-160
Others HD Coating
SP (Super Protect) Coating
AW (All Weather Resistant)
Quick-shift Focus System (QFS/M)
SDM (Ultrasonic Motor)

Compatible Converters

HD PENTAX-DA AF REAR CONVERTER 1.4x AW
