HD PENTAX-DA 55-300mmF4.5-6.3ED PLM WR RE

  • APS-C
  • Zoom
  • DA

A compact telephoto zoom lens, providing enhanced AF performance and a minimum focusing distance of 0.95 meters

This zoom lens provides focal lengths between 84.5mm and 460mm (in the 35mm format)* to cover medium- to super-telephoto ranges. Thanks to its upgraded AF performance, it assures quiet, high-speed AF operation in still-image shooting, as well as smooth AF tracking operation during movie recording to minimize operation noise caused by focus and aperture shifts. Its newly designed, high-quality optics provide a minimum focusing distance of 0.95 meters, expanding the range of photographic applications. With the adoption of a retractable structure, it measures a mere 89 millimeters in length, making it easy to carry around. Coupled with its weather-resistant construction, this zoom lens assures outstanding reliability even in demanding shooting conditions.

* When mounted on a PENTAX APS-C-format digital SLR camera.

PLM Weather-resistant Power focus Quick-Shift Focus SP Coating HD Coating Rounded diaphragm ED (Extra-low Dispersion) Glass Electromagnetic diaphragm

Hood : PH-RBK58 / Lens Cap :O-LC58 / Lens mount Cap K Included
Lens Case : S80-120 Optional
JAN-Code / 4549212 296642

Sample Images

  • Aperture F5.6; Shutter speed 1/1000sec; Focal length 55mm (equivalent to 82mm in 35mm format)
    Photo by Ichiro Murata

  • Aperture F6.3; Shutter speed 1/200sec; Focal length 135mm (equivalent to 202mm in 35mm format)

  • Aperture F5.6; Shutter speed 1/160sec; Focal length 210mm (equivalent to 315mm in 35mm format) Photo by Mitsuo Suzuki

  • Aperture F5.6; Shutter speed 1/1500sec; Focal length 108mm (equivalent to 162mm in 35mm format) Photo by Ichiro Murata

Click here to see works by users

Features / Specifications

High-speed AF operation
With the adoption of a rear-focus system, the focusing lens is 93.6 percent lighter* than the previous version. By driving this focusing lens using a pulse motor (PLM), which is directly linked to a lead screw, this zoom lens operates faster — approximately 8.3 times** at its wide-angle end and approximately 1.7 times** at its telephoto end —and quieter than the existing model.* When mounted on the new PENTAX K-70 digital SLR camera body, it assures smoother, faster AF operation with dimly lit subjects, thanks to an improved AF algorithm that exchanges AF data between the camera body and the lens with greater precision. Operability of its power-assisted focus system during manual-focus operation has also been improved. Since its distance ring is designed to accurately detect the angle of rotation and swiftly react to a change of angle, this zoom lens can shift its focusing lens smoothly in response to distance ring operation.

* When compared with the HD PENTAX-DA 55-300mm F4-5.8ED WR.
** When taking a still image in K-70's viewfinder shooting, with the camera’s AF mode set to AF-S and for subjects positioned at a distance between 1.5 meters to infinity.

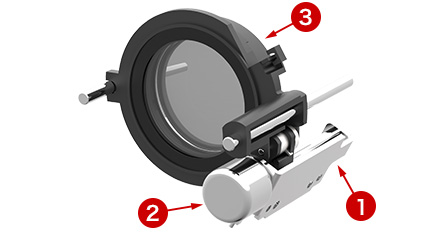

Focusing Mechanism
  • Lead Screw
  • PLM (Pulse Motor)
  • Focus Lens
Phase-matchingAF AF drive time comparison
AF drive time
WIDE (55mm) TELE (300mm)

HD PENTAX-DA 55-300mm F4-5.8ED WR (The current model)

HD PENTAX-DA 55-300mm F4.5-6.3ED PLM WR RE (New model)

Quiet AF operation and electromagnetic diaphragm control, perfect for movie recording
This is the first K-mount lens to feature an electromagnetic diaphragm control system. When mounted on the new PENTAX K-70 digital SLR camera body, it assures smooth, high-precision aperture control during movie recording. Thanks to this state-of-the-art system, it shifts the aperture setting automatically and smoothly, even when the brightness level of the subject changes drastically in movie shooting. Coupled with the PLM mechanism, it also assures smooth AF tracking operation and exposure control, while minimizing the intrusion of focus- and aperture-shift noises during movie-recording operation. As the result, it produces more natural, true-to-life movies in locations such as a theater stage or a sunlight-streaked forest where the brightness level fluctuates considerably, and for such active subjects as athletes and animals.

Electromagnetic Diaphragm Unit

High-quality images, with a minimum focusing distance of 0.95 meters
With focal lengths from 84.5mm to 460mm (in the 35mm format), this telephoto zoom lens provides approximately 5.5-times zoom coverage from medium- to super-telephoto ranges. Its 14-element, 11-group optics include an ED (Extra-low Dispersion) optical element to effectively minimize spherical and chromatic aberrations, while delivering high-resolution, fine-detailed images with rich contrast from the image’s center to its edges and minimal color bleeding at any focal length setting. In addition to the short minimal focusing distance of 0.95 meters, made possible by the rear-focus system, the lens barrel has also been designed to be free of extension during AF operation, making it ideal for a wide variety of applications, such as outdoor, sports and landscape shooting.
Compact telephoto zoom lens
Thanks to its retractable structure, the lens is only 89 millimeters long. Since it weighs just 442 grams, it is extremely compact and handy to carry even in a limited space, such as a bag, making it ideal for casual, day-to-day shooting.

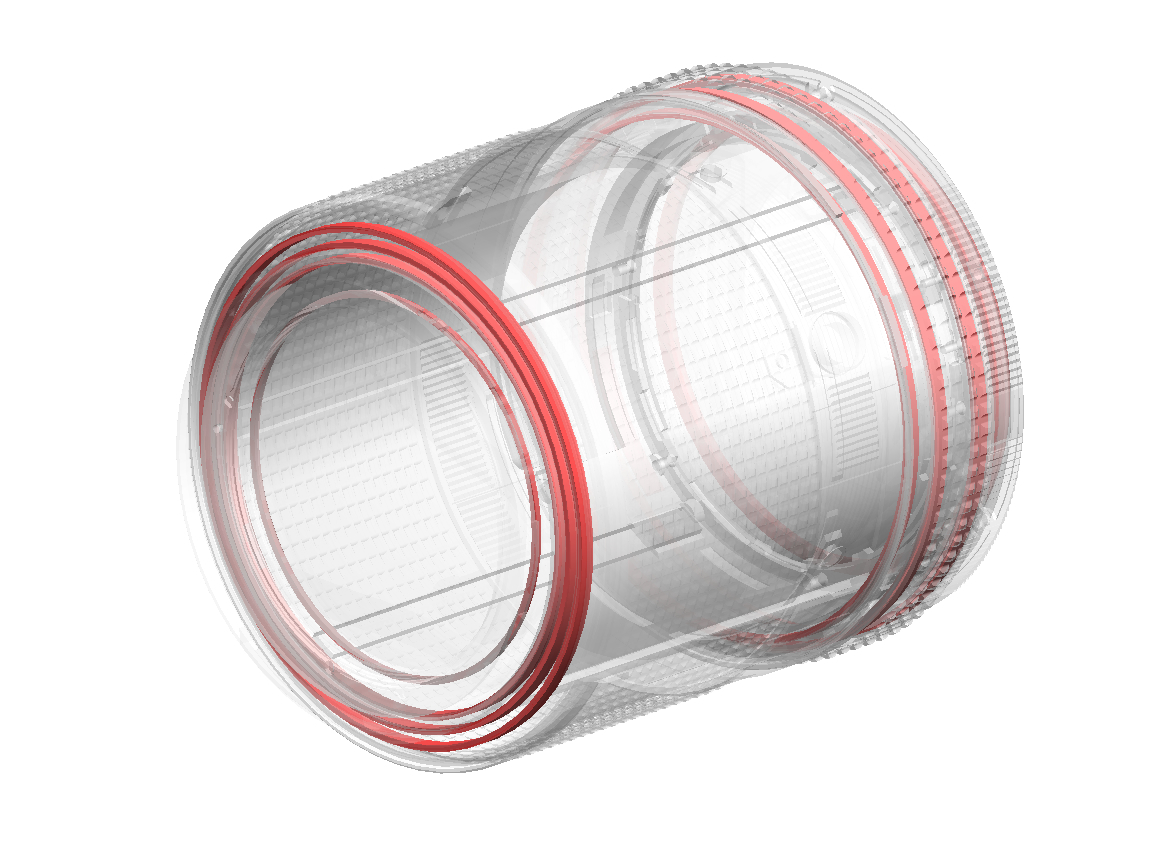

Weather-resistant construction
The lens features a dependable weather-resistant construction with 11 sealing parts to effectively prevent the intrusion of water into the lens interior. When paired with a weather-resistant PENTAX digital SLR camera body, it creates a durable, dependable digital imaging system that performs superbly in demanding shooting settings — even in rain or mist, or in locations prone to water splashing or spray.
HD Coating to optimize image description
The lens is treated with high-grade, multi-layer HD Coating.* Compared with conventional multi-layer coatings, this PENTAX-original coating assures higher light transmittance and less reflection to deliver bright, high-contrast images free of flare and ghost images, even under demanding lighting conditions such as backlight.

* HD stands for High Definition.
Other features
・Quick-Shift Focus System allows the user to instantly switch to manual-focus operation, even when the camera’s AF system is in operation.
・SP (Super Protect) Coating applied to the front surface of the lens to effectively repel water and grease.
・Rounded diaphragm with nine blades to produce a smooth, beautiful bokeh (defocus) effect, while minimizing the streaking effect of point light sources.

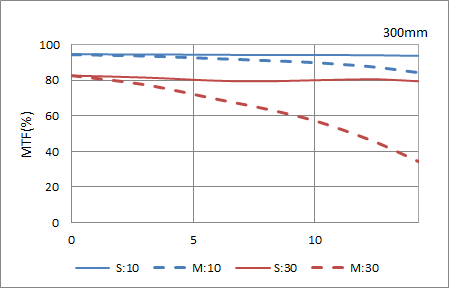

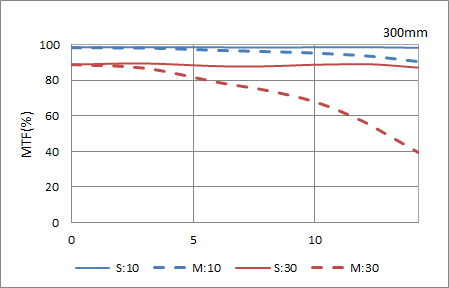

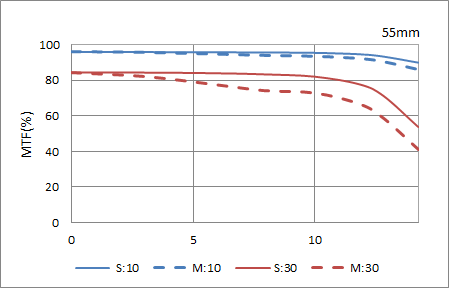

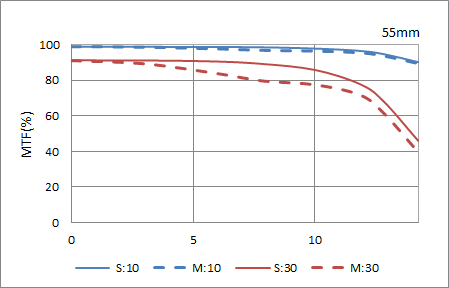

【MTF Chart】
Geometric optics MTF (MTF calculated without referencing the effects of light diffraction phenomenon)



Wave optical MTF (MTF calculated referencing the effects of light diffraction phenomenon)



Spatial Frequencies S:Sagittal M:Meridional
10 lines/mm
30 lines/mm
Since it is impossible to avoid light diffraction phenomenon on the actual lens, wave optical MTF is more realistic. However, geometric MTF is appropriate if you want to compare only the effects of geometric aberration correction on MTF.

What is the MTF chart?

Type Telephoto Zoom
Focal length
(Equivalent in 35mm format)
55-300mm (84.5-460mm)
Maximum aperture F4.5-6.3
Minimum aperture F22-32
Angle of View 29°-5.4°
Lens construction 14 elements / 11 groups
No. of diaphragm blades 9
Minimum focusing distance 0.95m
Maximum Magnification 0.30x
Filter Diameter 58mm
Maximum Diameter x Length approx. 76.5mm x approx. 89mm
Weight approx. 442g (with hood approx. 471g)

Compatibe Comberters (Click here for details)


Phase-matching AF: Rarely, it will not in-focus with Phase-matching AF.
Contrast AF: ○
