[Question] How do I download images from the camera to a Windows computer using the supplied DL-10 software?

The [DL-10] software allows you to download pictures all at once in a camera automatically when you connect a camera to a computer. In order to use the DL-10 will automatically craeate [Digital Camera] folder in [My Documents] folder. With the default settings, the downloaded pictures are saved into a new folder assigning the captured date, which is located in the [Digital Camera] folder. (If you were previously using Caplio Software, the files will continue to be saved in the [Caplio] folder.) Set the correct date and time on the camera before shooting.

• The supplied software supports the following operating system.
Windows 7, Windows Vista, Windows XP, Windows 2000
(Only for x32 bit edition. Further information on Windows 7 64 bit edition, see here.)

1

Check that the camera power is off.

2

Check that DL-10 is activated.

3

Connect the supplied USB cable to the computer's USB port.

4

Connect the USB cable to the USB terminal of your camera. Then, your camera automatically turns on and the "Connecting PC..." message appears.

5

DL-10 automatically starts to download images.

[Note]

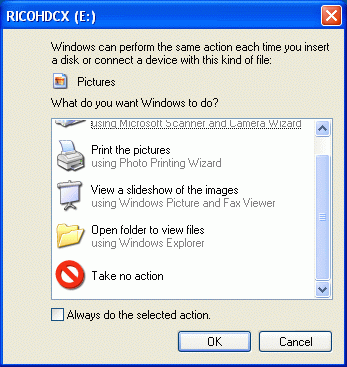

If the following dialog box appears, select the action you want to perform from the list.

•	If you click [Open folder to view files] and [OK], the folder containing the files that have been downloaded using DL-10 will be displayed.
•	If you click [Take no action] and [OK], the dialog box disappears. If you select the "Always do the selected action" checkbox, this dialog box will not appear when you next connect your camera to the computer.

[If the picture downloads will not start atuomatically,]

•	Click the [Save] button in the DL-10 window. (Only if this is your first time connecting your camera to a computer.)
•	Restart the computer and perform Steps 1 to 4 again.
•	Check if the [Saves automatically when connected to USB] checkbox in the [Option Settings] dialog box for DL-10 is selected. If you select the "Always do the selected action" checkbox, this dialog box will not appear when you next connect your camera to the computer.

6

When the "Transfer has completed." message appears, you can see the folder that the images have been downloaded to.
With the default settings, the downloaded pictures are saved into a new folder assigning the captured date, which is located under [My Document] - [Digital Camerea] folder.

Remember the saved location , then click [OK].

7

If you have installed Irodio Photo & Video Studio from the supplied CD-ROM, it will automatically start. You can check the downloaded images using this software.

8

When image transfer is completed, disconnect the camera and the computer. Double-click the "Safely Remove Hardware" icon on the right end of the task bar.

9

Select "USB Mass Storage Device" and click [Stop].

10

Check that "USB Mass Storage Device" is selected, and click [OK].

11

Check that "USB Mass Storage Device" has disappeared, and click [Close].

12

Disconnect the USB cable.

•	If the USB cable is disconnected without disabling the connection, the Unsafe Removal of Device screen may be displayed. Be sure to stop the connection before removing the USB cable.
•	Do not disconnect the USB cable during image downloading. Make sure that downloading has completed, disable the connection, and then disconnect the cable.
•	When images are transferred to a computer, they are saved under new file names. File names in the camera are not used.
•	The images are saved under consecutively numbered file names in order to avoid duplication of file names.
•	Even if the images are saved in different folders, their file names are still consecutively numbered. You cannot initialize the numbers.
•	If you transfer images to a computer using DL-10, their file names are still saved as [RIMG**.jpg] (where ** is a number), even if [Card Sequence No.] is set to [On].
