Specifications

Lens		RICOH lens, 11 elements in 9 groups (5 aspherical elements)
	Focal Length	5 - 25 mm
	(in 35mm format equivalent)	Approx. 28 - 140mm
	Maximum Aperture	F3.5(W) - F5.5(T)
Zoom	Optical Zoom	5X
	Digital Zoom	approx. 8.1X
	Intelligent Zoom	approx. 7X at 10M, approx. 40.5X at 640 (including optical zoom)
Motion Blur Reduction	Still	Pixel Track SR Hi-sensitivity anti-shake mode (Digital SR)
	Movie	Movie shake reduction mode (Movie SR、Movie SR+)
Focus	Type	9-point AF, Spot AF, Auto tracking AF
	Focus Range (From lens face)	Standard: 0.5m - infinity / 1.64ft. - infinity (entire zoom range) Macro:0.1 - 0.6m / 0.33 - 1.97ft. (entire zoom range) 1cm Macro:0.01 - 0.3m / 0.03 - 0.98ft. (middle zoom position) Infinity-landscape, Pan Focus, Manual Focus: available
Number of Effective pixels		Approx. 20 megapixels
Image Sensor		1/2.3" CMOS
Number of Recorded pixels	Still	Size: L(20M)、M(10)、S(5M)、XS(3M)、2M、1M、VGA •( ) in aspect 4:3. • 2M and 1M are available only in the CALS mode. Aspect: 4:3、3:2、1:1 • In the CALS mode, the aspect ratio is fixed to 4:3.
	Movie	4K, 1920, 1280
Sensitivity (Standard Output Sensitivity)		AUTO, Manual (ISO 125 - 6400)
White Balance		Auto, Daylight, Shade, Cloudy, Tungsten light, Fluorescent light(D:Daylight Color, N:Daylight White, W:White Light, L:Warm White), Ring light, Manual
Display	Type	3.0" (aspect ratio 3:2) LCD, approx. 1040K dots, AR Coating(Cover only)
	Adjustments	Brightness, Outdoor View Setting: ±2 Steps
Exposure Control	Metering System	Multi-segment metering, Center-weighted metering, Spot metering
	Exposure Compensation	± 2EV ( 1/3EV steps)
Scene modes		Auto Picture, Program, HDR, Handheld Night Snap, Movie, High Speed Movie, Digital Microscope, Landscape, Flower, Portrait, Underwater, Underwater Movie, Interval Shot, Interval Movie, Surf & Snow, Kids, Pet, Sport, Night Scene, Fireworks, Digital SR, CALS, Green, Depth of field composition
Face detection		Face Detection AF&AE is available for all modes up to 30 faces. Smile Capture, Self-portrait Assist, Self-portrait Assist + Smile Capture, Blink Detection
Pet detection		Detect up to 1 pet's face(auto)
Playback modes		Slideshow, Image Rotation, Small Face Filter, Ink Rubbing Filter, Digital Filter(B&W / Sepia, Toy Camera, Retro, Color, Extract Color, Color Emphasis, High Contrast, Starburst, Soft, Fish-eye, Brightness, Miniature), HDR Filter, Movie Edit, Red-eye Edit, Resize, Cropping, Image Copy, Protect, Start-up Screen, Recover File, Auto Image Rotation
Shutter Speed		1/4000 - 1/4sec.(Mechanical and electronic shutter), 4sec at most. (Night Scene mode setting)
Built-in flash	Modes	Flash-on and Flash-off modes. "Red-eye" compensation function employs a pre-discharge.
	Flash Range	Wide:approx. 0.2 - 5.5m / 0.66 - 18 ft. (ISO Auto) Tele:approx. 0.2 - 3.5m / 0.66 - 11 ft. (ISO Auto)
Drive Modes		One shot, Self-timer, Continuous Shooting, Burst Shooting, M Continuous, S Continuous, Remote Control, Auto Bracketing
Storage Media		Built-in Memory (approx. 27MB), SD/SDHC/SDXC Memory Card, FlashAir™ Card
Power Source		Rechargeable Battery DB-110, AC Adapter Kit K-AC166(Optional)
	Battery life	Still*1: approx. 340 shots (Rechargeable Battery) Playback*2: approx. 260 min. (Rechargeable Battery)
Interfaces		USB3.0(Type-C), HDMI output terminal(Type D)
Water proof / Dustproof		Equivalent to JIS Class 8 waterproof and JIS Class 6 dustproof capabilities
Dimensions		Approx. 118.2 (W)x65.5 (H)x33.1 (D)mm /4.7 (W)x2.6 (H)x1.3 (D) inches (including lens depth)
Weight		Approx. 246g / 8.6 oz. (Included dedicated battery and SD memory card),Approx. 219g / 7.7 oz.(Body only)
Included Accessories		Rechargeable Battery DB-110, USB Power Adapter, Power Plug, USB Cable I-USB173, Hand Strap, Macro Stand
Languages		English, French, Germany, Spanish, Portuguese, Italy, Dutch, Japanese, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkey, Greek, Russian, Thai, Korean, Simplified Chinese, Traditional Chinese
GPS		GPS, GLONASS, QZSS+ SBAS GPS display mode: LAT/LON, UTM, MGRS GPS log, GPS lock, GPS time adjustment, GPS data imprint, UTC data imprint
Electronic Compass		Compass heading :Cardinal, Degrees, Cardinal/Degrees Declination, Compass data imprint

*1 Recording capacity shows approximate number of shots recorded during CIPA-compliant testing. Actual performance may vary depending on operating conditions.
*2 According to the result of RICOH in-house testing.

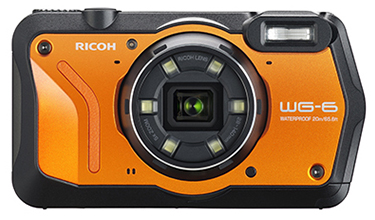

RICOH WG-6

●Still image (shots)

Still image
	20M 4:3 (5184x3888 pixels)			18M 3:2 (5184x3456 pixels)			15M 1:1 (3888x3888 pixels)			10M 4:3 (3648x2736 pixels)			9M 3:2 (3648x2432 pixels)
	★★★	★★	★	★★★	★★	★	★★★	★★	★	★★★	★★	★	★★★	★★	★
Built-in Memory	3	6	9	3	6	10	4	8	12	7	12	18	7	13	20
4GB	480	830	1303	541	932	1460	637	1101	1707	954	1637	2525	1072	1809	2818
8GB	936	1616	2537	1053	1815	2843	1242	2145	3324	1858	3189	4917	2088	3522	5488
16GB	1873	3233	5075	2107	3631	5687	2484	4291	6648	3716	6379	9834	4177	7045	10977
32GB	3744	6463	10147	4213	7259	11370	4967	8579	13292	7430	12753	19661	8351	14085	21947
64GB	7756	13207	20361	8726	14808	23270	10180	17452	27149	15271	25720	40723	16851	28746	44425
128GB	15501	26395	40692	17439	29594	46505	20346	34879	54256	30519	51401	81384	33676	57448	88783
256GB	30519	51401	81385	34879	57448	88783	40692	69758	108513	61038	97662	162770	65108	108513	162770
512GB	61010	102755	162695	69726	114844	177486	81347	139453	216927	122021	195234	325391	130156	216927	325391

Still image
	7M 1:1 (2736x2736 pixels)			5M 4:3 (2592x1944 pixels)			4M 3:2 (2592x1728 pixels)			4M 1:1 (1920x1920 pixels)
	★★★	★★	★	★★★	★★	★	★★★	★★	★	★★★	★★	★
Built-in Memory	9	15	24	11	22	31	13	25	35	15	29	40
4GB	1262	2126	3275	1616	3030	4179	1809	3366	4661	2164	4040	5509
8GB	2458	4140	6378	3146	5900	8138	3522	6556	9077	4214	7867	10728
16GB	4917	8281	12758	6294	11801	16277	7045	13112	18155	8429	15735	21456
32GB	9830	16556	25506	12583	23593	32542	14085	26214	36297	16852	31457	42896
64GB	20361	32578	48868	25720	48868	61085	28746	54298	69811	34905	61085	81447
128GB	40692	65107	97661	51401	97661	122077	57448	108513	139517	69758	122077	162769
256GB	81385	122077	195324	97662	195324	244155	108513	195324	244155	139517	244155	325541
512GB	162695	244043	390469	195234	390469	488087	216927	390469	488087	278907	488087	650783

Still image
	3M 4:3 (2048x1536 pixels)			3M 3:2 (2048x1368 pixels)			2M 1:1 (1440x1440 pixels)			2M 4:3 (1600x1200 pixels) *CALS Mode Only			1M 4:3 (1280x960 pixels) *CALS Mode Only			VGA 4:3 (640x480 pixels)
	★★★	★★	★	★★★	★★	★	★★★	★★	★	★★★	★★	★	★★★	★★	★	★★★	★★	★
Built-in Memory	18	34	45	20	37	51	27	48	63	28	51	66	35	59	77	137	223	297
4GB	2473	4661	6060	2754	5050	6733	3673	6379	8657	3910	6733	8657	4661	8080	10100	17315	30302	40403
8GB	4816	9077	11801	5364	9834	13112	7152	12422	16858	7613	13112	16858	9077	15734	19668	33717	59005	78673
16GB	9633	18155	23602	10728	19668	26225	14304	24844	33718	15227	26225	33718	18155	31470	39337	67436	118013	157351
32GB	19259	36297	47186	21448	39322	52429	28597	49670	67409	30443	52429	67409	36297	62915	78644	134819	235933	314577
64GB	37591	69811	97736	44425	69811	97736	54298	97736	122170	61085	97736	122170	69811	122170	162894	244341	488683	488683
128GB	75124	139517	195323	88783	162769	195323	108513	195323	244154	122077	195323	244154	139517	244154	325539	488309	976619	976619
256GB	139517	244155	325541	162770	325541	325541	195324	325541	488311	244155	325541	488311	244155	488311	488311	976623	976623	976623
512GB	278907	488087	650783	325391	650783	650783	390469	650783	976174	488087	650783	976174	488087	976174	976174	1952349	1952349	1952349

Still image		Built-in Memory	4GB	8GB	16GB	32GB	64GB	128GB	256GB	512GB
20M 4:3 (5184x3888 pixels)	★★★	3	480	936	1873	3744	7756	15501	30519	61010
20M 4:3 (5184x3888 pixels)	★★	6	830	1616	3233	6463	13207	26395	51401	102755
20M 4:3 (5184x3888 pixels)	★	9	1303	2537	5075	10147	20361	40692	81385	162695
18M 3:2 (5184x3456 pixels)	★★★	3	541	1053	2107	4213	8726	17439	34879	69726
18M 3:2 (5184x3456 pixels)	★★	6	932	1815	3631	7259	14808	29594	57448	114844
18M 3:2 (5184x3456 pixels)	★	10	1460	2843	5687	11370	23270	46505	88783	177486
15M 1:1 (3888x3888 pixels)	★★★	4	637	1242	2484	4967	10180	20346	40692	81347
15M 1:1 (3888x3888 pixels)	★★	8	1101	2145	4291	8579	17452	34879	69758	139453
15M 1:1 (3888x3888 pixels)	★	12	1707	3324	6648	13292	27149	54256	108513	216927
10M 4:3 (3648x2736 pixels)	★★★	7	954	1858	3716	7430	15271	30519	61038	122021
10M 4:3 (3648x2736 pixels)	★★	12	1637	3189	6379	12753	25720	51401	97662	195234
10M 4:3 (3648x2736 pixels)	★	18	2525	4917	9834	19661	40723	81384	162770	325391
9M 3:2 (3648x2432 pixels)	★★★	7	1072	2088	4177	8351	16851	33676	65108	130156
9M 3:2 (3648x2432 pixels)	★★	13	1809	3522	7045	14085	28746	57448	108513	216927
9M 3:2 (3648x2432 pixels)	★	20	2818	5488	10977	21947	44425	88783	162770	325391
7M 1:1 (2736x2736 pixels)	★★★	9	1262	2458	4917	9830	20361	40692	81385	162695
7M 1:1 (2736x2736 pixels)	★★	15	2126	4140	8281	16556	32578	65107	122077	244043
7M 1:1 (2736x2736 pixels)	★	24	3275	6378	12758	25506	48868	97661	195324	390469
5M 4:3 (2592x1944 pixels)	★★★	11	1616	3146	6294	12583	25720	51401	97662	195234
5M 4:3 (2592x1944 pixels)	★★	22	3030	5900	11801	23593	48868	97661	195324	390469
5M 4:3 (2592x1944 pixels)	★	31	4179	8138	16277	32542	61085	122077	244155	488087
4M 3:2 (2592x1728 pixels)	★★★	13	1809	3522	7045	14085	28746	57448	108513	216927
4M 3:2 (2592x1728 pixels)	★★	25	3366	6556	13112	26214	54298	108513	195324	390469
4M 3:2 (2592x1728 pixels)	★	35	4661	9077	18155	36297	69811	139517	244155	488087
4M 1:1 (1920x1920 pixels)	★★★	15	2164	4214	8429	16852	34905	69758	139517	278907
4M 1:1 (1920x1920 pixels)	★★	29	4040	7867	15735	31457	61085	122077	244155	488087
4M 1:1 (1920x1920 pixels)	★	40	5509	10728	21456	42896	81447	162769	325541	650783
3M 4:3 (2048x1536 pixels)	★★★	18	2473	4816	9633	19259	37591	75124	139517	278907
3M 4:3 (2048x1536 pixels)	★★	34	4661	9077	18155	36297	69811	139517	244155	488087
3M 4:3 (2048x1536 pixels)	★	45	6060	11801	23602	47186	97736	195323	325541	650783
3M 3:2 (2048x1368 pixels)	★★★	20	2754	5364	10728	21448	44425	88783	162770	325391
3M 3:2 (2048x1368 pixels)	★★	37	5050	9834	19668	39322	69811	162769	325541	650783
3M 3:2 (2048x1368 pixels)	★	51	6733	13112	26225	52429	97736	195323	325541	650783
2M 1:1 (1440x1440 pixels)	★★★	27	3673	7152	14304	28597	54298	108513	195324	390469
2M 1:1 (1440x1440 pixels)	★★	48	6379	12422	24844	49670	97736	195323	325541	650783
2M 1:1 (1440x1440 pixels)	★	63	8657	16858	33718	67409	122170	244154	488311	976174
2M 4:3 (640x480 pixels) *CALS Mode Only	★★★	28	3910	7613	15227	30443	61085	122077	244155	488087
2M 4:3 (640x480 pixels) *CALS Mode Only	★★	51	6733	13112	26225	52429	97736	195323	325541	650783
2M 4:3 (640x480 pixels) *CALS Mode Only	★	66	8657	16858	33718	67409	122170	244154	488311	976174
1M 4:3 (640x424 pixels) *CALS Mode Only	★★★	35	4661	9077	18155	36297	69811	139517	244155	488087
1M 4:3 (640x424 pixels) *CALS Mode Only	★★	59	8080	15734	31470	62915	122170	244154	488311	976174
1M 4:3 (640x424 pixels) *CALS Mode Only	★	77	10100	19668	39337	78644	162894	325539	488311	976174
VGA 4:3 (480x480 pixels)	★★★	137	17315	33717	67436	134819	244341	488309	976623	1952349
VGA 4:3 (480x480 pixels)	★★	223	30302	59005	118013	235933	488683	976619	976623	1952349
VGA 4:3 (480x480 pixels)	★	297	40403	78673	157351	314577	488683	976619	976623	1952349

●CALS mode

Aspect
Size	4:3
	MB	pixels
L	20	5184x3888
S	5	2592x1944
XS	3	2048x1536

・ CALS mode is available to select Aspect 4:3 only.

●Microscope mode

Aspect
Size	4:3
	MB	pixels
XS	3	2048x1536

Number of Recorded pixels of Microscope mode used intelligent zoom is fixed in XS(3M), aspect 4:3 only.

●Movie

Movie
	3840 （3840x2160）	1920 （1920x1080）	1280 （1280x720）
Frame rate	30fps（hh:mm:ss）	30fps（hh:mm:ss）	60fps（hh:mm:ss）	30fps（hh:mm:ss）	120fps（hh:mm:ss）
Built-in Memory	00:00:00	00:00:06	00:00:06	00:00:14	00:00:02
4GB	00:05:15	00:26:42	00:26:42	00:44:09	00:16:44
8GB	00:10:19	00:52:04	00:52:04	01:26:04	00:32:41
16GB	00:20:44	01:44:15	01:44:15	02:52:14	01:05:27
32GB	00:41:32	03:28:30	03:28:30	05:44:25	02:10:57
64GB	01:26:07	07:11:57	07:11:57	11:53:28	04:31:20
128GB	02:52:12	14:23:20	14:23:20	23:45:57	09:02:20
256GB	05:44:29	28:46:46	28:46:46	47:32:00	18:04:45
512GB	11:28:44	57:32:03	57:32:03	95:01:29	36:08:37

Movie	Frame rate	Built-in Memory	4GB	8GB	16GB	32GB	64GB	128GB	256GB	512GB
3840 (3840x2160）	30fps（hh:mm:ss）	00:00:00	00:05:15	00:10:19	00:20:44	00:41:32	01:26:07	02:52:12	05:44:29	11:28:44
1920 （1920x1080）	30fps（hh:mm:ss）	00:00:06	00:26:42	00:52:04	01:44:15	03:28:30	07:11:57	14:23:20	28:46:46	57:32:03
1280 （1280x720）	60fps（hh:mm:ss）	00:00:06	00:26:42	00:52:04	01:44:15	03:28:30	07:11:57	14:23:20	28:46:46	57:32:03
1280 （1280x720）	30fps（hh:mm:ss）	00:00:14	00:44:09	01:26:04	02:52:14	05:44:25	11:53:28	23:45:57	47:32:00	95:01:29
1280 （1280x720）	120fps（hh:mm:ss）	00:00:02	00:16:44	00:32:41	01:05:27	02:10:57	04:31:20	09:02:20	18:04:45	36:08:37

The figures for movies are the total length that can be recorded. The maximum recording time per shooting is 25 minutes or the equivalent of 4GB.

RICOH WG-6 System Requirements

USB interface

Windows®	Windows® 8.1	Windows® 10	Windows® 11
Macintosh	macOS 10.15 Catalina	macOS 11.0 Big Sur	macOS 12 Monterey

Windows®	Macintosh
Windows® 8.1	macOS 10.15 Catalina
Windows® 10	macOS 11.0 Big Sur
Windows® 11	macOS 12 Monterey

Supported OS must be pre-installed in PC and updated to the latest version. USB port must be standard equipped.

Required system for Webcam feature

Supported OS	Windows® 11 (32bit/64bit) Windows® 10 (32bit/64bit) Windows® 8.1 (32bit/64bit) macOS 12 Monterey macOS 11 Big Sur macOS 10.15 Catalina
