Effortless low- and high-angle shooting
Since you can capture extremely low- and high-angle images from a comfortable shooting position, you can exploit new, eye-catching angles to dramatize your images.
*For using with 645Z and K-S1, update firmware from here.
*Compatible devices: smartphones and tablet computers running iOS and Android operating systems
By teaming the FLUCARD FOR PENTAX O-FC1 with a compatible camera, you can enjoy wireless LAN,live-view photography using your smartphone or tablet computer with great ease.
Feature 1: Flexible live-view shooting
Natural expressions of children and animals
Set the camera on a tripod, then release the shutter from a distance. You can capture natural, relaxed expressions of your sensitive subjects without them even noticing.
Easy image confirmation on a larger screen
On a larger tablet computer screen, you can check the entire image in greater detail, even at the corners. This is an outstanding benefit for your shooting, not only in scenic photography, but also in still-life photography of flowers and other small subjects.
Feature 2: An array of handy functions
Live-view display on a smartphone screen, with remote shutter-release function
You can release the camera’s shutter from a distance, while watching a live-view image on your smartphone or tablet computer.

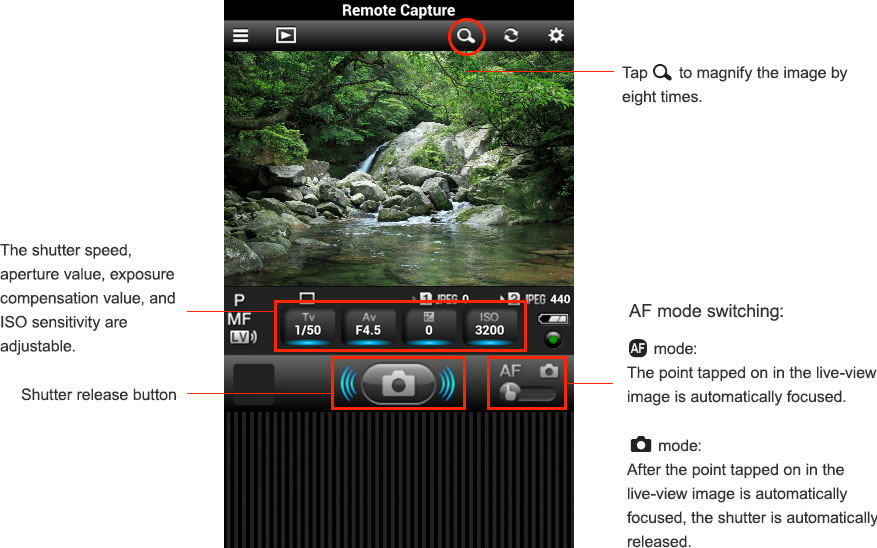

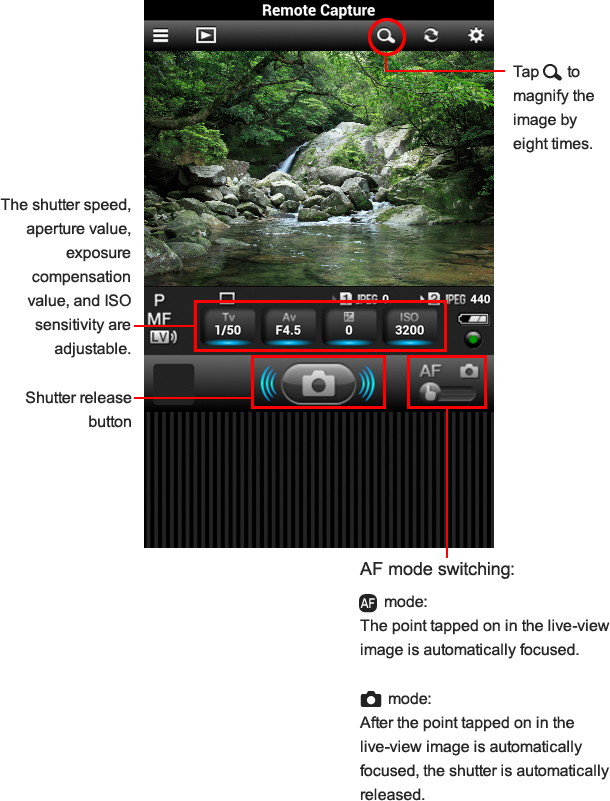

Effortless fingertip control of focus and exposure
The camera’s AF system is activated when you touch the point on the screen where you want to optimize the focus. You can even adjust the exposure and ISO settings with fingertip control.
Easy check of captured images on a smartphone screen
You can recall thumbnails of images recorded on the memory card on your smartphone screen. When you find the desired image, you can transfer its data wirelessly and store it on your smartphone.*
* The amount of time required for image data transfer and storage may vary, depending on the data volume.

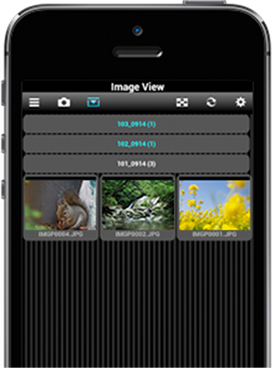

- Thumbnail display

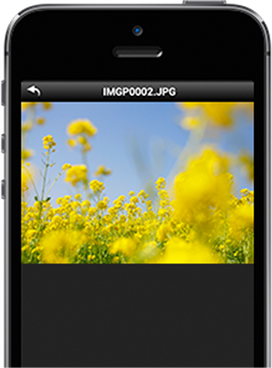

- Full-image display
Setup: Easy interface with a smartphone or tablet computer
- Insert the O-FC1 in the camera’s memory card slot.
- Select “FLUCARD-for-PENTAX” from the list of access points.
- Enter the security code.
- Access the menu screen to input desired settings.
Shooting: Simple touch-screen control of the camera operation
User Guide [Operation] (805KB)
Main Specifications
| Storage Capacity | 16 GB |
|---|---|
| SD Standards | SD Memory Card Physical Layer Version 4.10 |
| SD Speed Class | Class 10 |
| Wireless Standards | IEEE802.11b/g/n |
| Security | Open、WPA2 |
| Transmission Method | DSSS (IEEE 802.11b) OFDM (IEEE 802.11g, IEEE 802.11n) |
| Range (line of sight) | Approx. 7.5 m |
| Communications Speed | 54 Mbps |
| Wireless Frequency | 2.4 GHz band (channels: Ch 1 to Ch 11) |
| Connection Method | Card access point mode |
| Power Consumed | Approx. 1.7 W (max.) |
| Operating Temperature Range | 0～40℃ |
| Size | Approx. 32 mm (L) x 24 mm (W) x 2.1 mm (H) |
| Weight | Approx. 4 g |
| Antenna | Built-in type |
| Buzzer | Built-in type |
Notes:
- The wireless range given is an approximation, measured using RICOH IMAGING in-house testing standards. The actual range may vary depending on the camera body design and the operating condition of the devices used.
- The transfer speed is a theoretical maximum speed, and may differ from the actual transfer speed.
- All sample images used on this page are simulated to demonstrate specific functions of this device, and were not actually taken with it.
