Close range compatible model

Papilio

A high-performance compact model, giving you a clear view from a mere 50cm to infinity.

Papilio Series

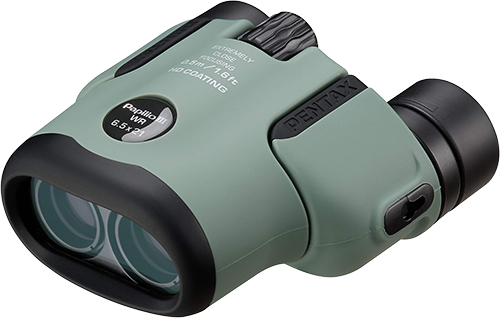

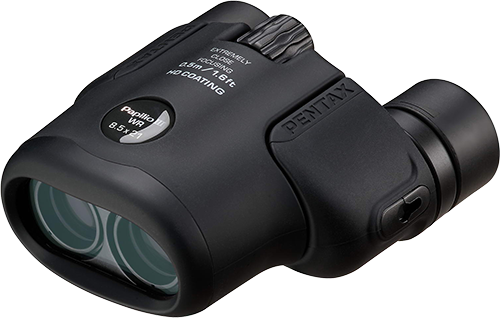

Papilio III WR

Compact binoculars capable of close-distance observation, and the first Papilio-series model to feature a weather-resistant construction for use in various viewing conditions.

  • Porro prism
  • Convergent lens
  • Aspherical lens
  • High refractivity
  • Fully-multi coating
  • HD coating
  • Anti-stain coating
  • Long eye relief
  • Weather-resistant
  • Rubber coat
  • 50cm macro observation
  • Helicoid eyepiece ring
  • Tripod socket provide

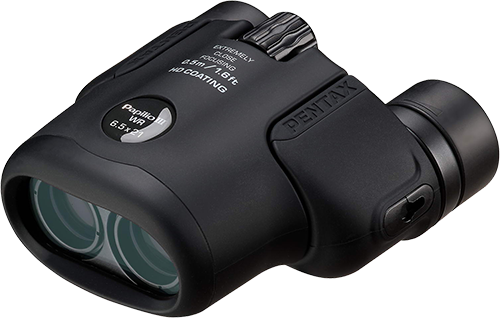

  • Papilio III 6.5x21 WR

    Black

  • Papilio III 6.5x21 WR

    Olive

  • Papilio III 8.5x21 WR

    Black

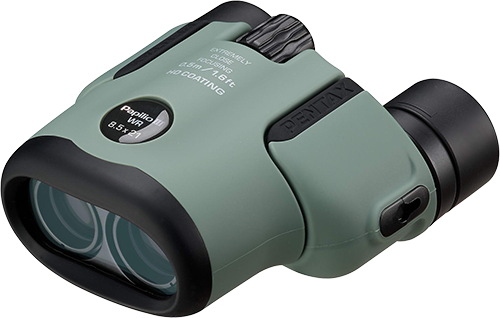

  • Papilio III 8.5x21 WR

    Olive

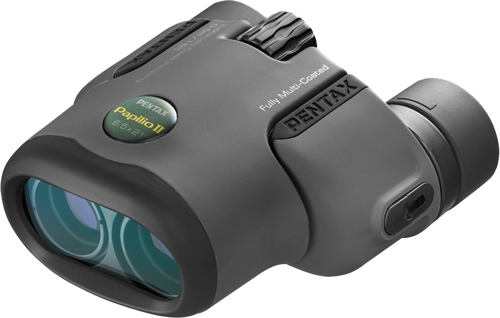

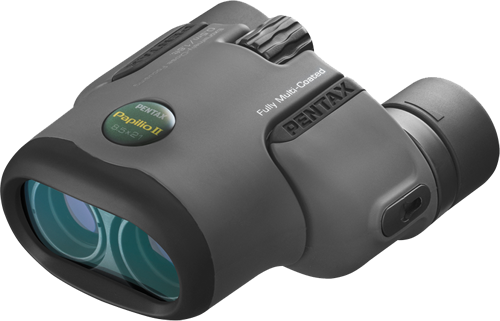

Papilio II

Compact binoculars capable of close-distance observation.

  • Porro prism
  • Convergent lens
  • Aspherical lens
  • High refractivity
  • Fully-multi coating
  • Long eye relief
  • Rubber coat
  • 50cm macro observation
  • Helicoid eyepiece ring
  • Tripod socket provide

  • Papilio II 6.5x21

  • Papilio II 8.5x21

Features

◆Close-distance observation from a minimum focusing distance of approximately 50 centimeters
In general, observing an object from a close distance with a pair of binoculars causes a discrepancy in the visual field between the right and left eyes. In order to compensate for this discrepancy, the Papilio III WR incorporates the PENTAX-original convergence correction mechanism, which slides the objective lenses in conjunction with the focusing distance. This unique mechanism lets the user more comfortably observe subjects at close range without suffering eye fatigue. Since the objective lenses returns to their original position in long-range observation, this model also performs superbly in normal applications, such as birdwatching, hiking, concerts and sports viewing.

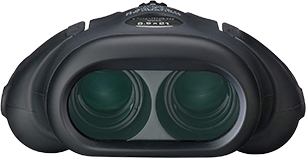

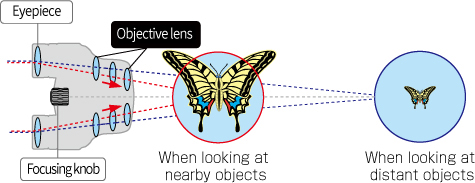

Mechanism of "Macro observation"

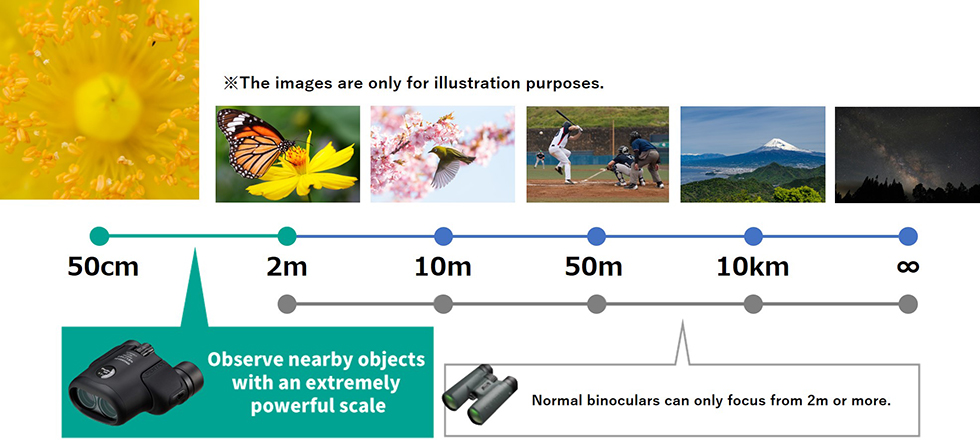

Approximate Observation Distance

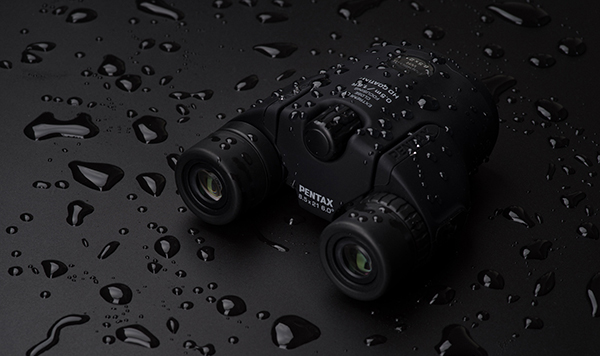

Only on Papilio III ◆The first Papilio-series model to feature a weather-resistant construction
For the first time in the Papilio series, the Papilio III WR features a weather-resistant construction which minimizes the intrusion of water and moisture into the interior, making it a highly dependable observation tool in the rain and mist and at locations prone to water splashes. An anti-stain coating has also been applied to the eyepieces and front plate-glass surfaces to minimize the adhesion of dust and stains.

Only on Papilio III ◆Latest HD Coating to further upgrade optical performance
A high-performance HD Coating has been newly adopted. Compared with conventional multi-coatings, this assures higher transmittance with less reflection. The result is that the Papilio III WR delivers extra-clear, higher-contrast images even under such demanding conditions as backlighting.

◆High-performance optical design
All optical elements of the Papilio III WR are treated with a full multi-coating process to assure the optimum imaging performance, while minimizing unwanted reflections. The combination of the aspherical optical elements and the high-refraction BaK4 index glass prisms also delivers a sharp, clear subject image without distortion, even at the edges of the image field.

◆Easy-to-hold rubber casing
The entire binocular body is encased in a protective rubber casing to assure better holding comfort and superior impact resistance.

◆Compact and portable
As it is compact enough to fit in the palm of your hand, it is easy to carry in a bag or hang around your neck.

◆Long eye relief
This model’s long 15mm eye relief allows even eyeglass-wearers to clearly and comfortably observe the entire field of vision.

◆Other features
・RICOH-original dual-axis eye-space adjustment mechanism for simple, effortless adjustment of the width between the eyepieces
・Helicoid-type eyepiece rings for single-action, push-and-pull adjustment of eyepiece positions
・Click-stop diopter adjustment mechanism to prevent accidental shift of the diopter settings
・Quick-action neck strap, with instant attachment and release operations
・Tripod Adapter U (a currently available, optional accessory) for swift, effortless installation on a tripod

Use Cases

At museums and art galleries
Try using Papilio at museums or at art galleries to look into jewelries, oil paintings, and fine historical works. By looking through binoculars, you can see the details more realistically and can also enjoy the feeling as if the object is floating from the three-dimensional effect.

For botanical and nature observation
Papilio is very useful for mountain climbing, hiking and local strolls. If you look at the flowers near your feet, you will notice the hidden beauty of the flower and butterfly and the other insects coming and going. Papilio will open up a new world with a different macro perspective.

For concerts and sports watching
Not just for nearby objects, Papilio also has excellent performance as a standard binoculars to look at distant points.
The bright vision powered by "Full multi-coating" enhances the realistic feeling when watching sports and live performance.

For stargazings
Although Papilio is well known for its close-range viewing capability, it is also useful for stargazing in outdoor settings. It is equipped with technologies necessary for stargazing such as full multi-coating and aspherical lenses.

Others

  • Why not finding a binocular that matches you perfectly? How to select binoculars based on information from basic knowledge, such as magnification and aperture, to product features is introduced.

  • PENTAX binoculars have been in the world since 1938. Experience the clarity made possible by trusted optical performance and revolutionary coating techniques.
