AF180FG Auto Flash
Dustproof & weather-resistant
P-TTL Auto Flash

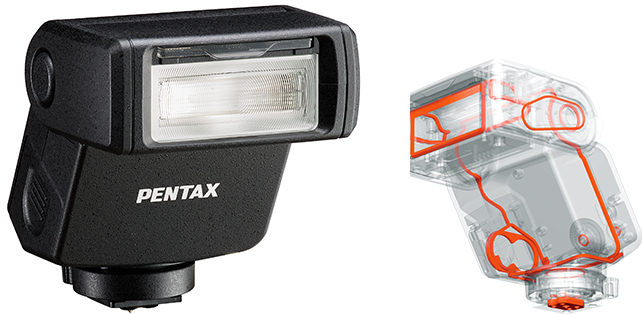

This compact, lightweight auto flash features a maximum guide number of 18 (at ISO100/m) and a dustproof, weather-resistant structure with 18 sealing parts across its body, including the hot shoe.
It provides simplified operation: a single turn of the discharge mode dial, which also functions as the power switch, makes it ready for flash photography.
It also provides other useful features, including: a tilt head mechanism which moves a maximum angle of 135 degrees for bounce flash applications, to capture soft, natural images; and a removable wide-angle panel to cover an angle of view as wide as 13mm (when mounted on an APS-C-format digital SLR camera).
Flash Specifications
| P-TTL Auto | Available |
|---|---|
| External-metering auto flash |
― |
| Manual guide number [ISO100 • m] |
18 |
| Manual guide number [ISO200 • m] |
25 |
| Flash Coverage Angle | Full frame 24mm APS-C 16mm Q Series 4mm Vertical Angle 53° Horizontal Angle 70° |
| Flash Coverage Angle (with wide pannel) |
Full frame 20mm APS-C 13mm Q Series 3mm Vertical Angle 85° Horizontal Angle 98° |
| Bounce flash | Up(~135°) , Down(~10°) |
| Discharge level compensation |
― |
| AF-assist light | ― |
| Size and weight (approx.) |
65mm(W) x 72.5mm(H) x 31mm(D) 141g (flash body only) |
| Power source | Two AAA-cell batteries (Alkaline (LR03) or Nickel-Metal Hydride (Ni-MH) |
| Other functions | • Exclusive use with digital cameras • Dustproof, weather-resistant structure • Automatic power-off (180 sec.) • Trailing-shutter sync mode |
