LENS SPECIFICATIONS
HD PENTAX-D FA★ 70-200mmF2.8ED DC AW

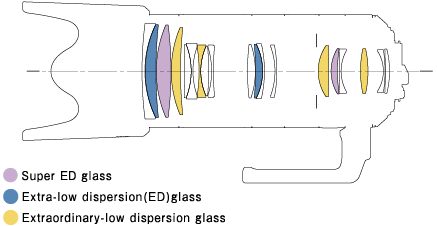

Appearance / Lens structure
Overview

HD PENTAX-D FA★ 70-200mmF2.8ED DC AW minimizes various aberrations compared to other lineups. It is a high-performance, "★ (Star)" series large aperture telephoto zoom lens for use with K-mount digital SLR cameras. It provides focal lengths from 70mm to 200mm with support for a maximum aperture of F2.8 throughout the entire range. The coating technologies such as the newly improved Aero Bright Coating II and HD Coating deliver sharp, clear images free of flare and ghost images, even under demanding lighting conditions such as backlight.

Focal length
(35mm film equivalent)
70-200mm
(equivalent to 107- 307mm)
Maximum aperture F2.8
Minimum aperture F22
Angle of view 23-8.1°
(with PENTAX APS-C size DSLR Camera)
Lens construction
  • 34.5-12.5°(with PENTAX 35mm SLR Camera)
  • 19 elements in 16 groups
Aperture blades 9 elements
Circular aperture (F2.8 -5.6)
Minimum Focusing distance 1.2m
Maximum Magnification 0.13x
Filter size 77m
Maximum Diameter × Length  Approx. 91.5 mm × 203 mm
Weight Approx. 1,755 g (with hood: 1,835 g)
(with hood + Tripod mount: 2,030 g)
