U series

Don't miss a moment. Indoor or out.
Suddenly so close you can almost touch it. That's because PENTAX quality and clarity are within reach, at a price that's within reach, too. These compact porro-prism models feature dual-axis, single body design with synchronized eyepiece adjustment. Aspherical lens elements give you edge-to-edge sharpness. Clear images and clearly affordable.

Products name Papilio II 6.5x21

Papilio II 6.5x21
Papilio II 8.5x21

Papilio II 8.5x21
UP 8x25 WP

UP 8x25 WP
Magnification 6.5x 8.5x 8x
Effective Aperture of Objective Lens 21mm 21mm 25mm
Angle of View 7.5° 6.0° 6.2°
Field if View (at 1,000m) 131m 105m 108m
Exit Pupil 3.2mm 2.5mm 3.1mm
Eye Relief 15mm 15mm 15mm
Relative Brightness 10.2 6.3 9.6
Closest focusing distance 0.5m 0.5m 1.9m
Height 114mm 116mm 110mm
Width 110mm 110mm 116mm
Thickness 55mm 55mm 69mm
Weight 290g 290g 350g
Products name UP 10x25 WP

UP 10x25 WP
UP 8-16x21 ZOOM

UP 8-16x21 ZOOM
UP 8x25

UP 8x25
Magnification 10x 8-16x 8x
Effective Aperture of Objective Lens 25mm 21mm 25mm
Angle of View 5.0° 5°-3° 6.2°
Field if View (at 1,000m) 87m 87/52m 108m
Exit Pupil 2.5mm 2.6mm-1.3mm 3.1mm
Eye Relief 15mm 14mm-11mm 15mm
Relative Brightness 6.3 6.7-1.7 9.6
Closest focusing distance 1.9m 3m 1.9m
Height 112mm 111mm 115mm
Width 116mm 111mm 110mm
Thickness 69mm 55mm 56mm
Weight 350g 310g 300g
Products name UP 10x25

UP 10x25
UP 8x21

UP 8x21

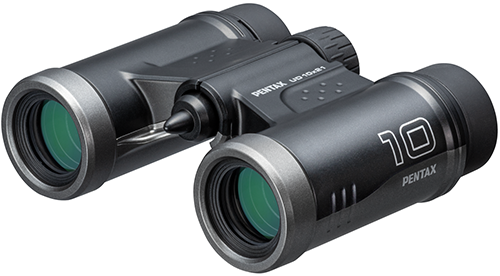

UP 10x21

UP 10x21
Magnification 10x 8x 10x
Effective Aperture of Objective Lens 25mm 21mm 21mm
Angle of View 5.0° 6.2° 5.0°
Field if View (at 1,000m) 87m 108m 87m
Exit Pupil 2.5mm 2.6mm 2.1mm
Eye Relief 15mm 13mm 9.5mm
Relative Brightness 6.3 6.8 4.4
Closest focusing distance 1.9m 2.8m 2.8m
Height 115mm 83mm 80mm
Width 110mm 110mm 110mm
Thickness 56mm 48mm 48mm
Weight 300g 210g 210g
