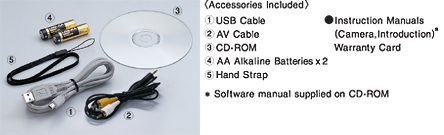

Accessories Included

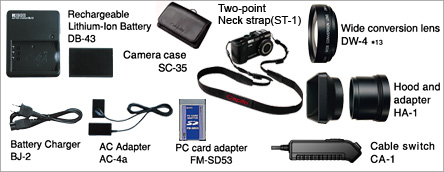

Caplio GX8 Optional Accessories
- *The hood and HA-1 adapter are necessary to use the wide conversion lens. When shooting with the wide conversion lens and using the internal flash, vignetting may occur at the bottom left corner of the monitor.
Caplio GX8 Software
Windows XP | Windows 98/ 98SE/ 2000/ Me |
Mac OS X 10.1.2 - 10.3 |
Mac OS 8.6 - 9.2.2 |
|
---|---|---|---|---|
1. RICOH Gate La | ![]() |
![]() |
![]() |
![]() |
2. Image Mixer 1.6 | ![]() |
![]() |
![]() |
![]() |
3. USB driver *1 | ![]() |
![]() |
![]() |
![]() |
4. WIA driver | ![]() |
![]() |
![]() |
![]() |
5. Mounter | ![]() |
![]() |
![]() |
![]() |
6. Acrobat Reader | ![]() |
![]() |
![]() |
![]() |
7. Direct X | ![]() |
![]() |
![]() |
![]() |
8. DeskTopBrinder Lite | ![]() |
![]() |
![]() |
![]() |
- *1:Ricoh original.
- *2:Compatible with Windows 98SE/2000/Me.
Caplio GX8 Software Operating Environment
Windows | Macintosh | |
---|---|---|
Operating Software |
Windows 98/ 98 Second Edition Windows 2000 Professional Windows Me Windows XP Home Edition/ XP Professional |
Mac OS 8.6 - 9.2.2 Mac OS X 10.1.2 - 10.3 |
CPU | Pentium III 500MB or more | Power PC or faster |
Memory Space |
Windows 98/98SE: 128MB or more Windows 2000 Professional:128MB or more Windows Me: 128MB or more Windows XP Home Edition/XP Professional : 256MB or more |
Mac OS 8.6-9.2.2: 96MB or more (128MB or more recommended) Mac OS X 10.1.2-10.3 : 128MB or more (256 MB or more recommended) |
Hard Disk Space | Windows 98/98SE: 500MB or more (during installation) Windows 2000 Professional: 500MB or more (during installation) Windows Me: 500MB or more (during installation) Windows XP Home Edition/XP Professional: 500MB or more (during installation) |
Mac OS 8.6-9.2.2: 10MB or more (during installation) Mac OS X 10.1.2-10.3: 100 MB or more (during installation and operation) |
Display | Resolution: 640 x 480 dots or more, 256 colors or more (800 x 600 dots or more, 65,000 colors or more recommended) |
Resolution: 640 x 480 dots or more,256 colors or more (800 x 600 dots or more, 32,000 colors or more recommended) |
Other | USB port, keyboard, CD-ROM drive, mouse required | USB port, keyboard, CD-ROM drive, mouse required |
- *Only USB connection is available when connecting Caplio GX8 to a PC.Serial connection is unavailable.
- *Valid for systems with preinstalled OS and USB port.
- *Supplied software can be used for Caplio RX, GX, R1, R1S, RZ1, R1V, R2, G4 series, G3 series, ProG3, 300G, 400Gwide, and RR30. Caplio G3 model S and ProG3 are not compatible with Macintosh.
SD Memory Card Storage Capacity
(Number of Images and Time)
Mode | Record - ing pixels |
Picture mode | Built-in memory |
32 MB |
64 MB |
128 MB |
256 MB |
512 MB |
1GB |
---|---|---|---|---|---|---|---|---|---|
Still | 3264 x 2448 | NC | 1 images | 1 images | 3 images | 7 images | 15 images | 32 images | 61 images |
Fine | 8 images | 9 images | 19 images | 39 images | 78 images | 158 images | 305 images | ||
Normal | 14 images | 16 images | 33 images | 68 images | 136 images | 275 images | 530 images | ||
2592 x 1944 | Normal | 23 images | 25 images | 53 images | 107 images | 213 images | 430 images | 828 images | |
2048 x 1536 | Normal | 36 images | 41 images | 84 images | 170 images | 339 images | 683 images | 1314 images | |
1280 x 960 | Normal | 64 images | 72 images | 148 images | 301 images | 600 images | 1209 images | 2324 images | |
640 x 480 | Normal | 280 images | 315 images | 645 images | 1304 images | 2599 images | 5237 images | 10072 images | |
Text | 3264 x 2448 | --- | 52 images | 59 images | 121 images | 244 images | 487 images | 982 images | 1889 images |
2048 x 1536 | --- | 88 images | 99 images | 203 images | 412 images | 821 images | 1654 images | 3181 images | |
Motion | 320 x 240 | 0'39" | 0'44" | 1'31" | 3'04" | 6'07" | 12'19" | 23'42" | |
160 x 120 | 2'27" | 2'46" | 5'40" | 11'28" | 22'50" | 46'01" | 88'31" | ||
Sound | --- | 57'26" | 64'36" | 132'11" | 267'15" | 532'36" | 1073'00" | 2063'25" |
- *Number of recordable pictures and recordable time may vary depending on the manufacturer and shooting conditions.
- *Average number of images and time.
