WG Accessories

WG Handle Bar Mount

O-CM1472

Accessory to fix the camera on a handle bar.

Features

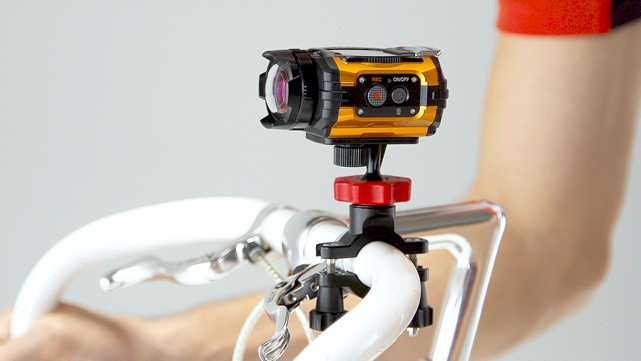

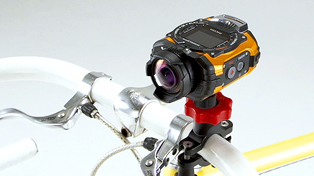

You are able to shoot by fixing a camera with this accessory that presses a round rod-like object such as a pipe.

Applicable Models

  • WG-60
  • WG-M2
  • WG-M1
  • WG-4
  • WG-3
  • WG-2
  • WG-1
  • WG-50
  • WG-30
  • WG-20
  • WG-10

Specifications

●Applicable Pipe Diameter: 20 mm to 35 mm in diameter
●Outer Dimension: Approx. 66 mm (Width) x Approx. 113.5 mm (Height) x Approx. 41.5 mm (Thickness)
●Weight: Approx. 66g

Installation Method

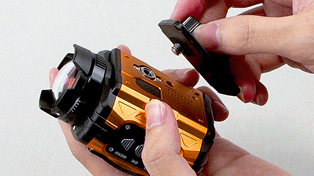

  • 1 Attach the provided camera platform.

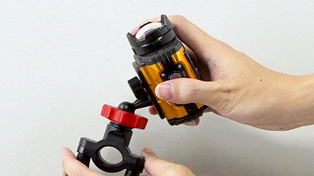

  • 2 Mount WG-M1/M2 or WG Holder on which the camera is set.

  • 3 Remove the clamp, press the bar with the mount and the clamp, tighten the right and left cramp nut for fixation.

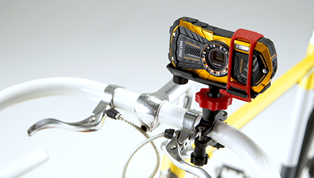

When WG series camera, excluding WG-M1/M2 is used:

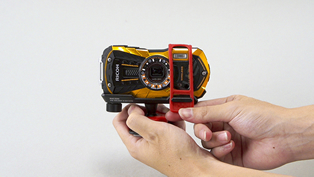

Since WG series cameras, excluding WG-M1/M2 cannot be fixed, always mount a camera to the separately sold "WG Holder O-CH1470"before attaching the camera.
