4. Development Story

A familiar standard lens can be your special partner


A large-aperture, medium telephoto lens with superb imaging
performance and thoroughly minimized aberrations

Development Story

The HD PENTAX-D FA85mmF1.4ED SDM AW is a medium telephoto single-focus lens in the new-generation Star series packed with PENTAX technologies.PENTAX’s section leaders talk about their enthusiasm for development and the appeal of the product.

Product Planning

The reason why we chose “85mmF1.4”


At fan events, I have met many of our users who cherished their “smc PENTAX-FA85mmF1.4ED[IF]”. I was told by many of them that it is simply a great lens. We wanted to offer an 85mmF1.4 specification lens, which doesn’t exist in our current lineup, as a new-generation Star-series lens with an amazing performance and a different type of imaging vector from the “smc PENTAX-FA85mmF1.4ED[IF]”.

The road to the new PENTAX “85mmF1.4”


The purpose in developing this lens was clear, beginning with the desire to create a simply high-performance lens. We took comparison shots with our lenses and competitor lenses, carefully examining the direction of the new lens including image resolving performance and bokeh effects. Out of the many examining areas we pursued, we couldn’t decide until the very end how to reduce purple fringing. We went over this issue many times with the optical design team, but the results did not reach what we have expected. Optical design team commented that there were limits in the lens construction when using the convex optical element in the front most position. So we thought and thought, and finally came up to the conclusion that adding a compensating lens group with a concave lens element to the front most position and incorporating many Super ED glass elements could suppress aberrations. Because the optical design was almost completed, we were faced to decide whether or not to completely change the lens construction and start over from scratch. The new optical design was a ray of light to realize the highly idealistic lens we had had in mind from the very beginning. Both the development and product planning teams agreed that we should start over from scratch.

Our vision on the use of


In the end, I want people to use this as a portrait lens. For those who don’t usually take portraits, this lens will be a good opportunity to take on the challenge. I hope that users will appreciate the quality of viewfinder images while enjoying not only the brightness, but also the sense of depth when looking at the subject through the viewfinder.
I believe the resulting image will be more beautiful than the users imagine. I recommend “Natural” or “Flat (contrast adjusted from default)” for the Custom Image setting. In addition to portraits, I hope that the users will try shooting in natural lighting, such as sunlight filtering through leaves. I believe they will enjoy the reproduction of soft lighting contrasts and beautiful bokeh effects without fringing. But the users should never look directly at the sun (also avoid such framing) as this large-aperture medium telephoto lens is extremely dangerous. If sunlight enters the frame, it can let in enough light to burn the shutter curtain.

Product Exterior Design

How the new-generation Star-series lens should be


Although the basic design of this lens is a continuation of the first new-generation Star-series lens “HD PENTAX-D FA50mmF1.4 SDM AW” and the second “HD PENTAX-DA★11-18mmF2.8ED DC AW”, we paid particular attention to how we should incorporate the exterior design of the past Star-series lenses on this new lens. Drastically changing the impression of the lens makes it impossible to identify it as part of the same series, but too little change fails to give the impression of a new generation. First, we aimed to carry on the simple, strong design of the Star-series lens while minimizing any decorative embellishments for a simple form. We consider that the lens hood is a part of the lens, so we tried to create a more refined style with the dedicated lens hood integrated into the overall lens. We also instituted a design policy to harmonize the coloring and placement of the iconic Star-series lens gold ring and the familiar green ring of PENTAX lenses in order to give a sense of solidarity and unwavering reliability as we expand the new-generation Star-series lens lineup.

In other words, we dismantled the design elements that create past lens products, reviewed them, and carefully selected which best fits the Star-series lens, then rebuilt them to arrive at a new generation styling.

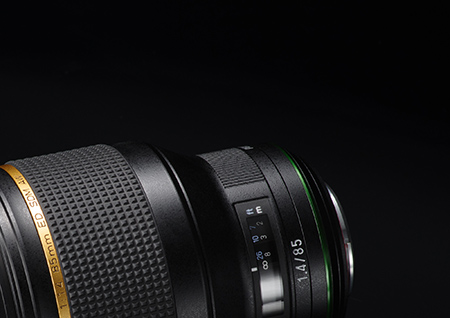

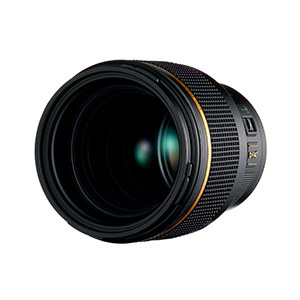

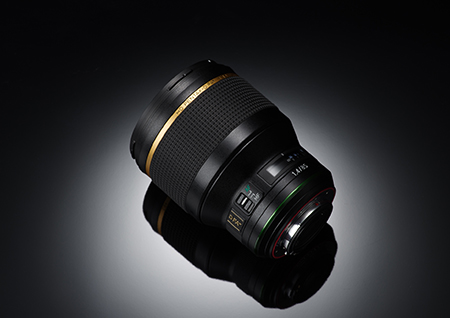

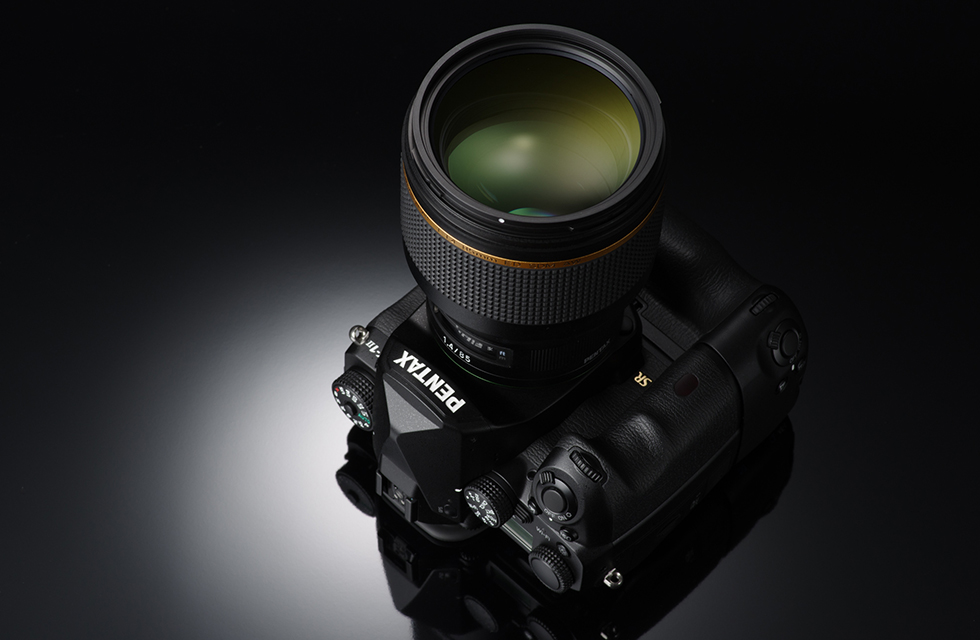

Exterior design of HD PENTAX-D FA85mmF1.4ED SDM AW


The product design is unique in the way that it neatly houses the large front lens elements inside the barrel. The voluminous internal structure which extends from the mount to the middle features design elements similar to the “50mmF1.4” in the same series. A knurled finish not available on the “HD PENTAX-D FA50mmF1.4 SDM AW” mount end was added as a finger grip for turning the lens when attaching or removing it, and in order to reduce loss of control due to the weight of the lens itself. After achieving satisfying controls, we made repeated adjustments not only to various elements but to the overall balance in order to achieve a unified look for the series.

In terms of functional aspects, we also paid particular attention to the lens hood, applying rubber to protect the edge of the hood from scratches when changing lenses or when setting the camera down during shooting. Although this was seen on previous FA ★ lenses, we believe it is a significant function considering the shooting range of this lens.

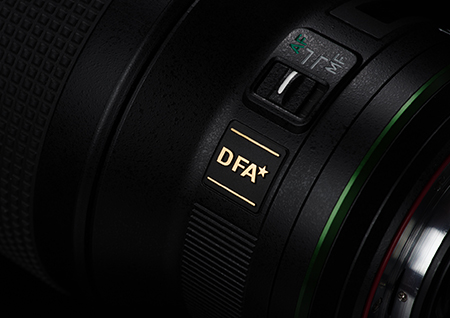

Knurling on the mount end

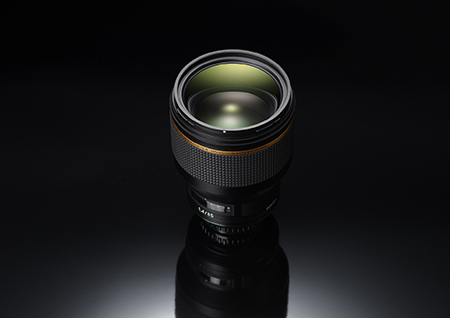

A design that neatly houses the front lens elements

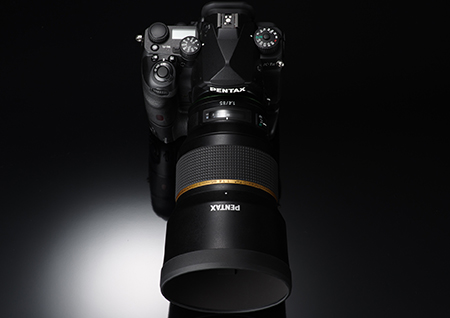

Rubber protecting the edge of the lens hood

Optical Design

A major design policy change


In the initial stages of development, we proceeded with design while maintaining lens size restrictions. For example, lens elements were added based on the past product “smc PENTAX-FA85mmF1.4ED[IF]” with the goal of delivering imaging for the digital age. However, even with some improvements to MTF, it was not possible to correct for axial chromatic aberration at an acceptable level. During the design process, we were also faced with the limitations in focusing lens element weight and lens diameter size due to the previously-mentioned restrictions.

Because reduction of axial chromatic aberration was one of the themes which need to be achieved in “D FA85mmF1.4”, the later design policy was drastically changed. We made it our top priority to achieve optical performance appropriate to a D FA lens without being too caught up in keeping the lens size small. We interacted with the mechanical design team repeatedly, and as Iwasaki from the product planning team mentioned, we expanded our range of options to the lens construction type selection.

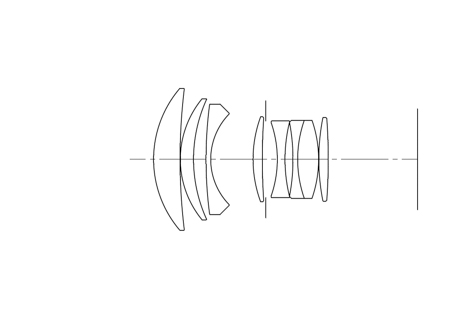

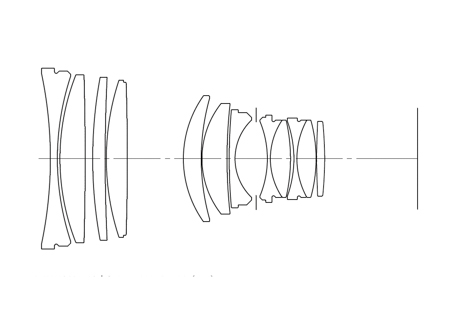

Comparison of new and old lens constructions


smc PENTAX-FA85mmF1.4ED[IF]

Problem-solving lens construction and technologies

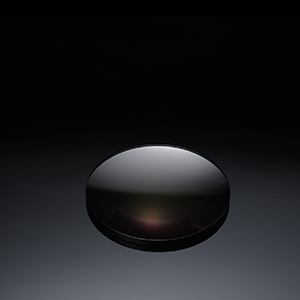

Super ED glass

Concave lens closest to subject


As a result, we opted for a lens construction with the rear Gauss-type lens group (focus lens group) and the front compensating lens group as the base construction that is used in “HD PENTAX-D FA50mmF1.4 SDM AW”. Utilizing two Super ED glass elements in the front group and one in the rear group effectively compensates for chromatic aberration, and a single aspherical lens reduces spherical aberrations and curvature of field aberrations, ensuring uniform resolving performance and contrast from the center to the edges of the frame. Of course, as Super ED glass is an expensive material, this is our first lens to use three Super ED glass elements.

When holding the lens, you’ll notice the concave lens which is closest to the subject. The three Super ED glass elements are highly effective in correcting for chromatic aberration, and the divergence effects of the concave lens also contribute significantly to compensating for various aberrations such as chromatic aberration. We set the competitor products in the same class in recent years with amazing performance as the benchmark for this lens, but there are some lenses in the 86mm filter diameter. Although the filter diameter of this lens is also large due to a change in design policy, we were somehow able to keep it in 82mm similar to the lenses such as “HD PENTAX-D FA 24-70mmF2.8ED SDM WR” thanks to the concave lens in the front. However, the characteristics of this placement result in a larger light flux diameter behind the concave lens due to divergence effects. The focus lens group weight constraints and the task of placing the SDM to ensuring that the product itself was not too large caused the mechanical design team quite a bit of trouble.

As for coating, Aero Bright Coating II used in “HD PENTAX-D FA★50mmF1.4 SDM AW” is not used on this lens. As for “HD PENTAX-D FA★85mmF1.4ED SDM AW”, we put effort into reducing ghost images via the lens construction design and reduced lens internal reflection by maximizing the effect of HD Coating to achieve a high level of image creation that PENTAX pursues and a superb color balance.

Lastly, during the manufacturing process, the part of the optical system will be moved, and to adjust spherical aberration for each lens. Depending on the amount of residual spherical aberration, maximum aperture imaging can become too soft due to flares, so we pursued a very strict level of adjustment precision in mechanical construction and adjustment methods in order to achieve a favorable sense of flaring and resolution.

Each person in charge of mechanical construction and adjustment methods worked to achieve such a strict level of precision, resulting in the imaging characteristics and performance innate to the lens.

Mechanical Design

A major design policy change


The mechanical design of the lens barrel and internal mechanisms required for obtaining superb optical performance, the drive system for enhancing responsiveness during shooting, and the control of these were quite a bit challenging.

Achieving superb performance in the optical design


Because this is a large-aperture medium telephoto lens, if sunlight enters the frame, it can let in enough light to burn the shutter curtain. Beams of light are wide, so even if the light source is completely outside of the angle of view in a simulation, it reflects off various surfaces such as the lens barrel and edge of the lens, and in many cases it heads straight for the image plane. This was basically solved with the shape and anti-reflective coating. However, we had to compete for the space required in the optical design to achieve a shape as a countermeasure. Flares occurred even when anti-reflective coating was applied to the space, and adding more anti-reflective coating resulted in production problems at the factory. We took on step by step tasks such as reworking the shape and the area of coating a number of times before finally solving the problem.

The 85mmF1.4 is a lens with a very shallow depth of field. It is heavy and its own weight can cause misalignment of the optical axis, leading to changes in the resolution, so it was quite tough to achieve the high level of precision required and ensure that the resolution didn’t change before and after adding components in the manufacturing process.

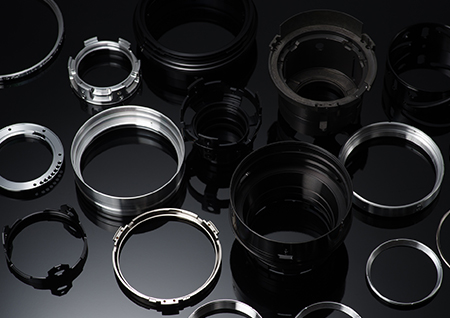

We looked at every possible method such as redesigning frame components, switching to high-strength materials, adjusting optical aberrations, and optimizing the manufacturing process, finally arriving at a level of precision that allowed for commercialization.

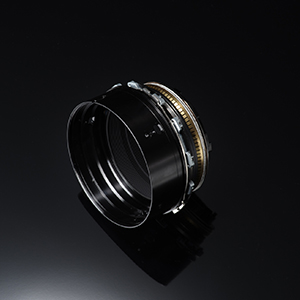

New high-torque SDM



In order to shift the heavy rear focus lens group, which consists of a large number of lens elements, this lens features a new SDM with the dedicated ring-type ultrasonic wave motor. It has approximately 1.3x the torque of “HD PENTAX-D FA50mmF1.4 SDM” AW, delivering high-speed, smooth autofocusing. We also developed an optimized driver simultaneously with the motor. It is so efficient that we were able to reduce power consumption drastically compared to other 50mmF1.4 lenses. Torque and drive speed tend to be focused on when talking about the drive system, but optimizing added lubricant, and establishing material and coating conditions contributes to durability and stable performance.

Delivering stress-free shooting

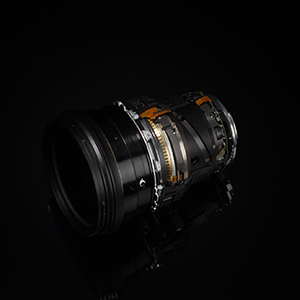

Lens barrel and interior mechanisms which cleared all requirements


Because the drive mechanism of the rear group (focus lens group) consisting of eight lens elements makes the group 1.4 to 1.5 times heavier than “HD PENTAX-D FA50mmF1.4 SDM AW”, we had no choice but to add a tension mechanism to prevent peripheral image changes due to rattling and tilting of the lens group when the drive system stops.
However, applying tension to parts of the drive system affects drive speed. Therefore, thorough streamlining of the drive mechanism was necessary to prevent a drop in drive speed, resulting in measures against deformation of the SDM transfer mechanism, placement of multiple linking levers, adoption of a bearing mechanism for the drive cam, and lightening of moving lens group. Also, the amount of movement and lens weight in the optical system called for the optimal solution, resulting in bouncing ideas back and forth many times with the optical design team.

These step by step solutions and coordination with the optical design team resulted in a stable focus drive mechanism.

In the end, numerous improvements to the mechanism resulted in drive system control that delivers approximately the same acceleration and deceleration time as “HD PENTAX-D FA50mmF1.4 SDM AW”. I believe these efforts resulted in nearly the same autofocus drive responsiveness for both products.

Furthermore, because the construction utilizes a powerful motor to move the large focus lens group, motor control via conventional power startup and stopping results in noticeable drive starting and stopping noise, but we succeeded in silent operation by making some control adjustments. As you can see, by solving a variety of challenging issues in the PENTAX lens development history, we were able to successfully create “HD PENTAX-D FA85mmF1.4ED SDM AW”.

Comfortable controls even for manual focusing

Oara and Ito

We paid attention not only to autofocus drive, but also to the controls when turning the focus ring for manual focusing. The spring that holds down the high-torque SDM builds up force, and can feel a bit weak when performing manual focus operations. The desired control sensation was achieved by adding a slip mechanism for enhancing sensation as well as conducting repeated tests of the SDM component materials and the lubrication in the drive mechanism with the persons in charge of the SDM. Instead of using the autofocus only, we hope that people try shooting with manual focus and enjoy the Quick-shift Focus System (QFS).
