Discontinued : Standard Lenses Discontinued Lens list for Digital single-lens reflex camera
smc PENTAX-DA 18-55mmF3.5-5.6AL
- Zoom
APS-C
This is an interchangeable lens specifically for PENTAX digital SLR cameras that was designed with an image circle to match the 23.5mm ×15.7mm imaging element.
Compared to interchangeable lenses for 35mm SLR cameras with the same specifications, this lens provides high cost performance with a remarkably more compact, lightweight design.
Features / Specifications
- Attaching to a PENTAX digital SLR camera enables a focal distance from 27.5mm to 84mm in the 35mm film format, making it ideal as an everyday lens that covers the range from wide angle to medium telephoto.
- Aspherical lenses are used to correct various types of aberration and enable a compact size.
- The lens does not include an aperture ring for simplicity in both functionality and design. Instead, the iris is adjusted on the camera.
- "Quick-Shift Focus System" for enabling manual focus operation after focusing by AF without any switching operation.
| Type | Normal Zoom |
|---|---|
| Focal length (Equivalent to 35mm format) | 18-55mm(27.5-84.5mm) |
| Maximum aperture | F3.5-5.6 |
| Minimum aperture | F22-38 |
| Angle of View | 76°-29° |

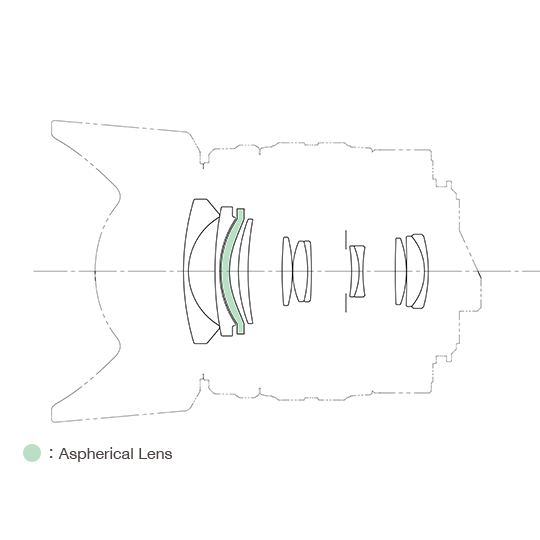

| Lens construction | 12 elements / 9 groups |
| No. of diaphragm blades | 6 |
| Closest focusing distance | 0.25m |
| Maximum reproduction ratio | 0.34x |
| Filter size | 52mm |
| Diameter x length | 68 x 67.5 mm |
| Weight | 225g |
Compatible Converters
A1.4X-S A2X-S
