June 23, 2011
Five Q mount interchangeable lenses
designed for exclusive use with the PENTAX Q digital camera;
a choice of High-performance or Unique series
to satisfy diversified photographic requirements
 01 STANDARD PRIME |
 02 STANDARD ZOOM |
 03 FISH-EYE |
 04 TOY LENS WIDE |
 05 TOY LENS TELEPHOTO |
HOYA CORPORATION PENTAX Imaging Systems Division is pleased to announce the launch of five interchangeable lenses designed for exclusive use with the new PENTAX Q digital interchangeable lens system camera. Featuring the newly designed Q lens mount, these new lenses come in two distinctive series: The two models of the High-performance series offer exceptional image rendition, while the three models of Unique series assure the effortless capturing of creative images.
The five new lenses have been developed for exclusive
use with the newly launched PENTAX Q digital interchangeable lens system
camera - currently the world's smallest, lightest model in its class.*
They are all designed to be super compact and ultra lightweight, by
optimizing their image circle to the size of the CMOS image sensor installed
in the new Q mount camera body. This makes them the perfect partners
for the pocket sized, go anywhere PENTAX Q. By providing two distinctive
lens series - the High-performance series emphasizing image rendition,
and Unique series with outstanding cost performance and ease of lens
changes - this new Q mount series gives PENTAX Q users a unique lens
lineup that assures all the benefits of a digital interchangeable lens
system camera, including the fun of creating different perspectives
and visual effects through quick, effortless lens changes.
As the first set of the new Q mount lineup, PENTAX

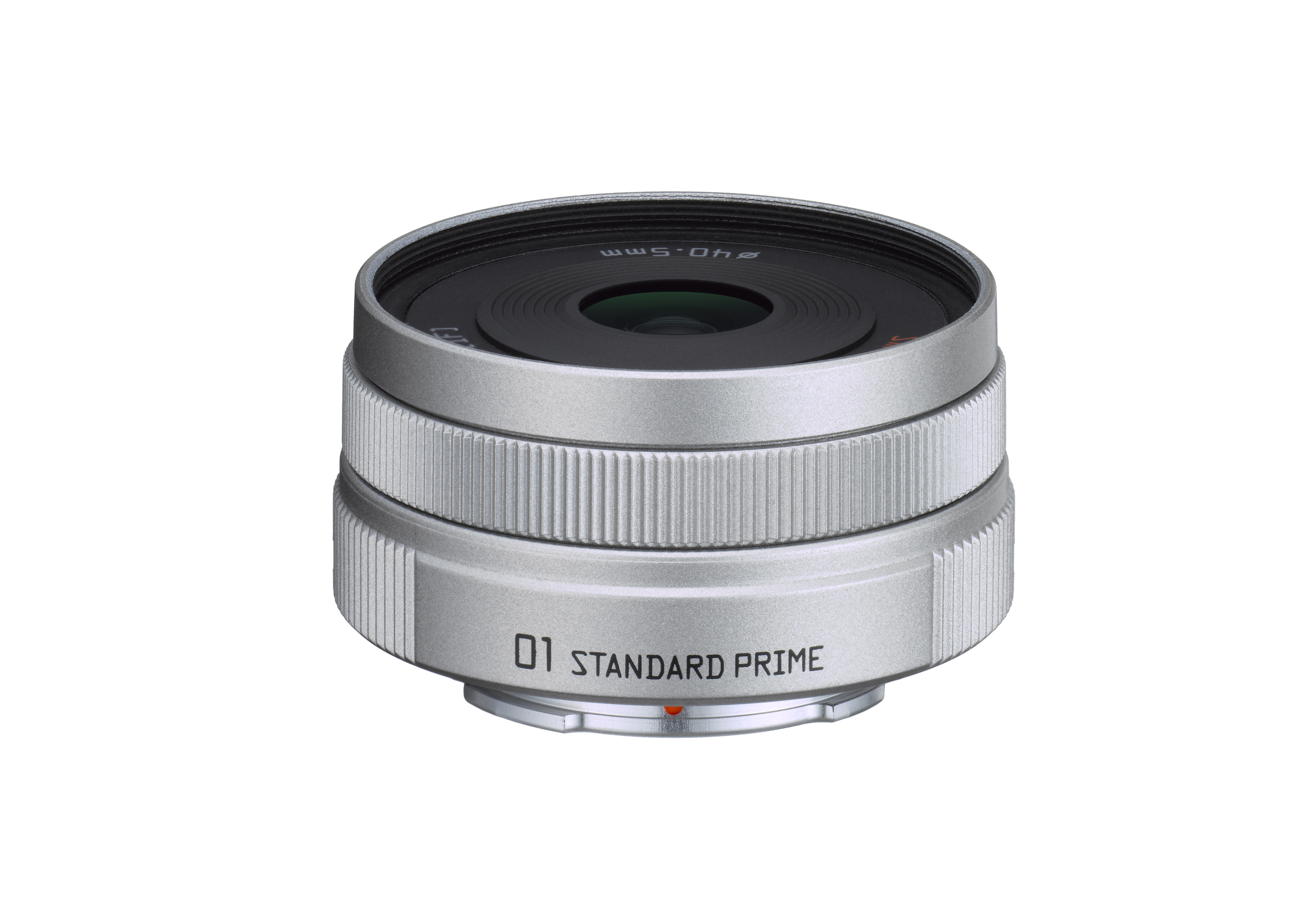

launches the "PENTAX-01 STANDARD PRIME" unifocal standard lens
and the "PENTAX-02 STANDARD ZOOM" standard zoom lens in the High-performance
series; and the "PENTAX-03 FISH EYE" unifocal ultra-wide-angle
lens, the "PENTAX-04 TOY LENS WIDE" unifocal wide-angle lens

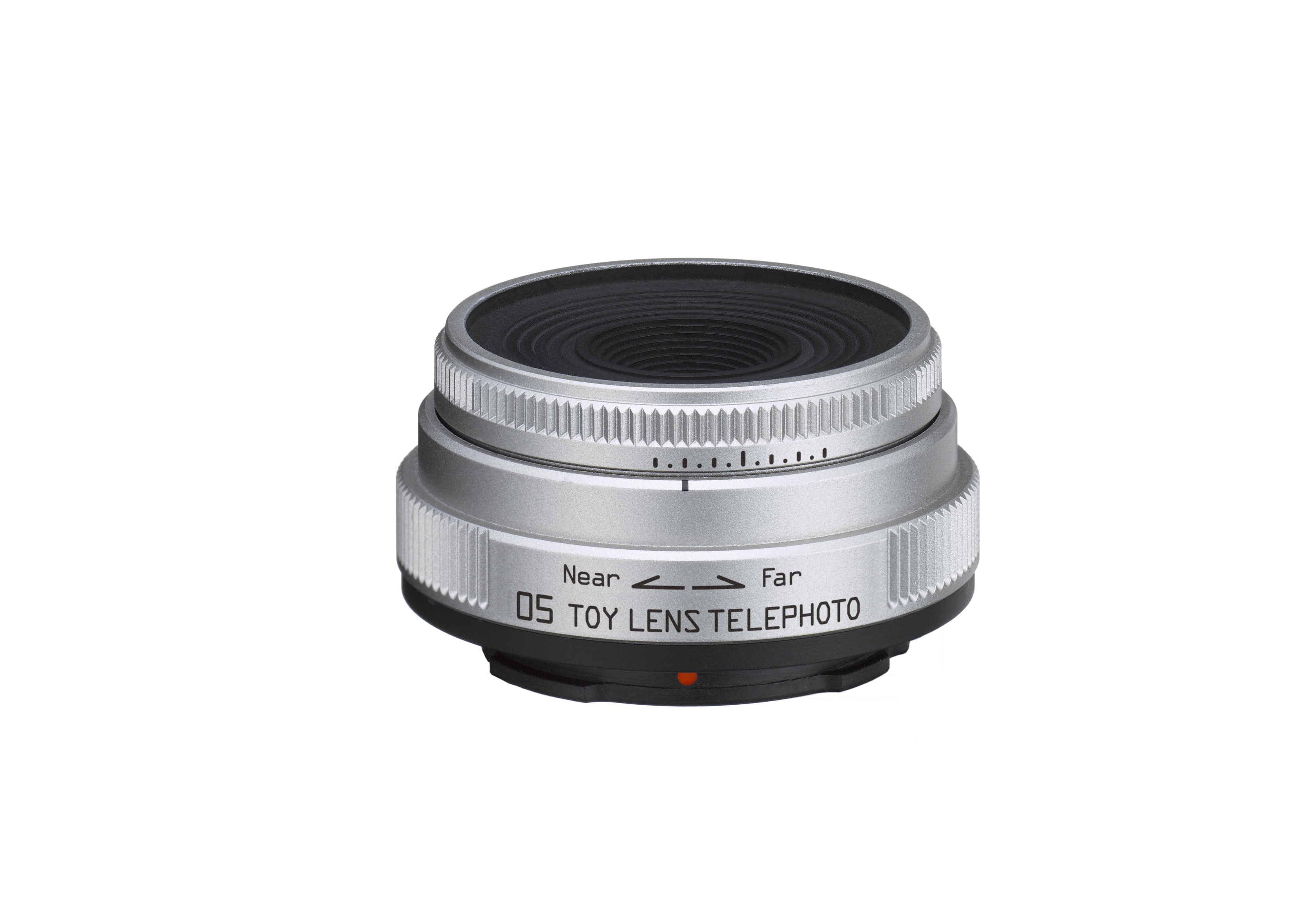

and the "PENTAX-05
TOY LENS TELEPHOTO" unifocal telephoto lens in the Unique series.
The two TOY LENS models are designed to produce a distinctive toy-camera-like
visual effect.
* The world's smallest
and lightest digital interchangeable lens system camera, as of June 15,
2011 (based on PENTAX research).
Common features of the two High-performance series models
The High-performance series has been developed to bring
out the optimum imaging power in the PENTAX Q digital camera by combining
exceptional image rendition with effortless handling, while also offering
a high grade finish. Featuring the state-of-the-art optics incorporating
special optical glass elements and PENTAX exclusive lens coating technology,
this series delivers beautifully defined, high quality images that are sharp
and high contrast, even at their edges. The AF motor installed in the lens
barrel assures smooth, quiet focusing operation. Thanks to the lens shutter
mechanism, the PENTAX Q's built-in auto flash can be synchronized even to
the camera's top shutter speed of 1/2000 second (or 1/250 second when using
an accessory flash unit). The lenses are also equipped with a built-in ND
(neutral density) filter, which comes in handy when shooting with open aperture
at bright locations or when using slower shutter speeds.
Common features of the three Unique series models
This series offers outstanding value against its price,
and allows every photographer to produce a variety of distinctive, dramatic
images simply by altering the angle of view and perspective through quick,
effortless lens changes. They all feature manual focus operation, fixed aperture
and plastic lens mount, and have no lens shutter unit - the main factors contributing
to the massive reduction in size and weight and making them far more affordable
than conventional interchangeable lenses.
Exclusive optional accessories
-
PENTAX-100 PL Filter
When attached to the "PENTAX-01 STANDARD PRIME" or "PENTAX-02
STANDARD ZOOM", this 40.5mm polarizing filter minimizes reflections
on the water or glass surface, which are difficult to remove during digital
processing, to assure crisp, high contrast images.
-
MH-RA 40.5mm
A metallic, dome-shaped lens hood for exclusive use with the "PENTAX-01 STANDARD
PRIME" lens.
-
PH-SBA 40.5mm Lens
A plastic, square-shaped lens hood for exclusive use with the "PENTAX-02 STANDARD
ZOOM" lens.
Specifications
|
High-performance Series |
Unique Series |
Product Name |
PENTAX-01 STANDARD PRIME |
PENTAX-02 STANDARD ZOOM |
PENTAX-03 FISH EYE |
PENTAX-04 TOY LENS WIDE |
PENTAX-05 TOY LENS TELEPHOTO |
Lens Mount |
PENTAX Q (Metal mount) |
PENTAX Q (Plastic mount) |
Flange Focal Length * |
9.2mm |
Lens Construction |
8 elements in 5 groups |
8 elements in 7 groups |
6 elements in 5 groups |
4 elements in 3 groups |
3 elements in 3 groups |
Angle of View |
49.5° |
76.0° - 29.0° |
160° |
64° |
24.5° |
Focal Length (in 35mm format) |
8.5mm (47mm) |
5mm - 15mm (27.5mm-83.0mm) |
3.2mm (17.5mm) |
6.3mm (35mm) |
18mm (100mm) |
Aperture |
F1.9 |
F2.8 - F4.5 |
F5.6 |
F7.1 |
F8 |
Diaphragm Control |
Automatic |
Fixed |
Lens Shutter |
O |
- |
ND Filter |
O |
- |
SP (Super Protect) Coating |
O |
- |
Minimum Focusing Distance |
0.2m |
0.3m (whole zoom area) |
0.09m |
0.07m |
0.27m |
Maximum Magnification |
approx. 0.05x |
approx. 0.06x |
approx. 0.06x |
approx. 0.15x |
approx. 0.08x |
Filter Diameter |
40.5mm |
Not compatible |
Maximum Diameter |
45.5mm |
48.5mm |
40.6mm |
40.6mm |
40.6mm |
Minimum Length |
23.0mm |
48.0mm |
30.5mm |
25.0mm |
19.5mm |
Weight |
approx. 37g |
approx. 96g |
approx. 29g |
approx. 21g |
approx. 18g |
Hood |
MH-RA 40.5mm (option) |
PH-SBA 40.5mm (option) |
Not compatible |
* The distance from the lens mount surface to the image sensor surface.
• PENTAX is a trademark of HOYA CORPORATION.
• Design and Specifications are subject to change without notice.
