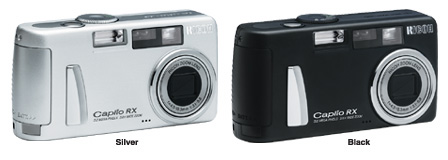

Caplio RX

Caplio RX

Caplio RX

Major Specifications

Item Description
Recording Format Still: JPEG(Exif ver. 2.21)DCF *1 support, DPOF support
Text:TIFF(MMR system)
Motion: AVI(Open DML Motion JPEG format compliant)
Sound: WAV(Exif ver. 2.21)
Video Signal Method NTSC/PAL switchable
Recording Media SD Memory Card TM(3.3V 8/16/32/64/128/256/512MB),
MultiMediaCard TM(16/32/64MB)
Built-in memory(8MB)
CCD 1/2.7-inch primary-color CCD with 3.34 million square pixels(effective 3.24million pixels)
Resolution Still: 2,048 x1,536, 1,280 x 960, 640 x 480
Text: 2,048 x1,536, 1,280 x 960
Motion: 320 x 240, 160 x 120
Recording Mode Still(Continuous, S-Continuous, M-Continuous),
Scene(Portrait, Sports, Landscape, Night Scene, Text, High-sensitivity), Motion, Sound
Picture Mode Fine, Normal
Storage capacity
(No. of pictures)
(Internal 8MB Memory) *2 		Still: 4(2,048 x1,536 Fine), 8(2,048 x1,536 Normal)
8(1,280 x 960 Fine), 14(1,280 x 960 Normal)
43(640 x 480 Normal)
Storage capacity(time)
(Internal 8MB Memory) *3 		Motion:
18seconds(320 x 240),65seconds(160 x120)
Sound:
14minutes 2seconds
Storage data capacity Still:
Approx. 1.29MB(2,048 x1,536 Fine),
Approx. 671KB(2,048 x1,536 Normal)
Approx. 686KB(1,280 x 960 Fine),
Approx. 356KB(1,280 x 960 Normal)
Approx. 82KB(640 x 480 Normal)
Lens Focal range f: 4.3-15.3mm(equivalent to 28-100mm for 35mm film camera)
Brightness F: 3.1(W)-5.8(T)
Lens structure 8 glass elements in 8 groups
Digital Zoom x3.4(Maximum x12.2 in combination with optical zoom)
Shutter Still: 8, 4, 2, 1-1/2,000sec.
(electronic/mechanical shutter)
Motion: 1/30-1/2,000sec.(electronic shutter)
Object distance Approx. 0.3m-∞ (Macro: Approx. 0.01m-∞ , Telemacro: Approx. 0.13m-∞ )
ISO Sensitivity Auto(equivalent to ISO125), ISO64, ISO100, ISO200, ISO400, ISO800
View Finder Real-image optical zoom finder
LCD Monitor 1.8-inch translucent amorphous silicon TFT LCD(approx. 85,000 pixels)
Flash *4 Auto(automatic flash in backlight), Red-eye Reduction, On, Slow Synchro, Off
Effective Flash Range:0.2-3.0m(W), 0.14-2.5m(T) (ISO800)
Focus Autofocus, Manual Focus, Fixed Focus(Snap), ∞
Exposure Adjustment TTL-CCD photometric system: Multi(256 segments),
Center Weight, Spot
Exposure Compensation Manual compensation(+2.0-2.0EV in 1/3EV steps), Auto-bracket(-0.5EV, ±0, +0.5EV
White Balance Auto, Daylight, Overcast, Tungsten Light, Fluorescent Light, Manual(One Push), White Balance Bracket
Self Timer Delay: Approx. 10sec., 2sec.
Interval Timer Shooting interval: 30sec. -3hours
PC Interface USB 1.1(compatible with PCs with Windows98/98SE/2000 Professional/Me/XP Home Edition/XP Professional pre-installed or Macintosh with Mac OS 8.6-9.2.2 or Mac OS X10.1.2-10.3)
AV Interface Audio Out, Video Out
Power Source Optional rechargeable lithium-ion battery, 2 AA batteries(alkaline, nickel, NiMH), or optional AC adapter
Shooting Capacity *5 Using DB43: Approx. 4,300pictures(continuous), approx. 400pictures(normal)
Continuous reproduction of still pictures: Approx. 340minutes
Using AA alkaline batteries: Approx. 150pictures(normal)
Dimensions(W x D x H) 111.6 x 29.0 x 56.0mm(excluding projection)
Weight Approx. 165g(excluding battery, SD Memory Card, hand strap)
Operating temperature 0-40°C

  • *1:DCF is the abbreviation of JEITA Standard "Design rule for Camera Files system. "
    ( It does not guarantee perfect inter-camera compatibility. )
  • *2:General guide for still-picture recording capacity
  • *3:Maximum. 30sec. per shot(320 x 240), maximum 120sec. per shot(160 x 120)
  • *4:Maximum flash range is effective at ISO800
  • *5:Under Ricoh measurement parameters (room temperature) . Actual performance may vary depending on the conditions of use.
    Continuous mode: 640 x 480 flash off, zoom not used, and Monitor Display off (power-saving mode)
    Normal mode: Approx. 30-second intervals, using flash and zoom for 1 out of 2 photos, and Monitor Display off(power-saving mode)
    AA alkaline batteries allow usage of approx. 75 minutes.
