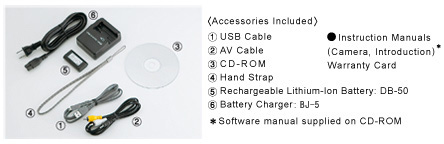

Accessories Included
Caplio R2 Optional Accessories
| Accessory name |
|---|
| Rechargeable Battery Set: BS-5 |
| Rechargeable Lithium-Ion Battery: DB-50 |
| AC Adapter: AC-4b |
| PC Card Adapter: FM-SD53 |
Caplio R2 Software
| Windows XP | Windows 98/ 98SE/ 2000/ Me |
Mac OS X 10.1.2 - 10.3 |
Mac OS 8.6 - 9.2.2 |
|
| 1. RICOH Gate La |  |
|
--- | |
|---|---|---|---|---|
| 2. Image Mixer 1.6 | |
|
--- | --- |
| 3. USB driver* | |
|
|
|
| 4. WIA driver | |
--- | --- | --- |
| 5. Mounter | --- | --- | |
|
| 6. Acrobat Reader | |
|
--- | --- |
| 7. Direct X | |
|
--- | --- |
- *Ricoh original.
Caplio R2 Software Operating Environment
| Windows | Macintosh | |
| Operating Software |
Windows 98/ 98 Second Edition Windows 2000 Professional Windows Me Windows XP Home Edition/ XP Professional |
Mac OS 8.6 - 9.2.2 Mac OS X 10.1.2 - 10.3 |
|---|---|---|
| CPU | Pentium III 500MB or more | Power PC or faster |
| Memory Space |
Windows 98/98SE: 128MB or more Windows 2000 Professional:128MB or more Windows Me: 128MB or more Windows XP Home Edition/XP Professional : 256MB or more | Mac OS 8.6-9.2.2: 96MB or more (128MB or more recommended) Mac OS X 10.1.2-10.3 : 128MB or more (256 MB or more recommended) |
| Hard Disk Space |
Windows 98/98SE: 500MB or more (during installation) Windows 2000 Professional: 500MB or more (during installation) Windows Me: 500MB or more (during installation) Windows XP Home Edition/XP Professional: 500MB or more (during installation) |
Mac OS 8.6-9.2.2: 10MB or more (during installation) Mac OS X 10.1.2-10.3: 100 MB or more (during installation and operation) |
| Display | Resolution: 640 x 480 dots or more, 256 colors or more (800 x 600 dots or more, 65,000 colors or more recommended) | Resolution: 640 x 480 dots or more,256 colors or more (800 x 600 dots or more, 32,000 colors or more recommended) |
| Other | USB board, keyboard, CD-ROM drive, mouse required | USB board, keyboard, CD-ROM drive, mouse required |
- *Only USB connection is available when connecting Caplio R2 to a PC.Serial connection is unavailable.
- *Supplied software can be used for Caplio RX,GX,R1,R1S,RZ1,R1V,G4 series,G3 series,ProG3,300G, 400Gwide, and RR30. Caplio G3 model S and ProG3 are not compatible with Macintosh.
SD Memory Card Storage Capacity (Number of Images and Time)
| Mode | Record - ing pixels |
Picture mode | Built-in memory |
32 MB |
64 MB |
128 MB |
256 MB |
512 MB |
1GB |
| Still | 2560 x 1920 | Fine | 14 images | 15 images | 31 images | 63 images | 126 images | 255 images | 491 images |
|---|---|---|---|---|---|---|---|---|---|
| Normal | 24 images | 25 images | 52 images | 105 images | 210 images | 424 images | 816 images | ||
| 2048 x 1536 | Fine | 19 images | 20 images | 41 images | 83 images | 166 images | 334 images | 643 images | |
| Normal | 37 images | 39 images | 80 images | 163 images | 325 images | 654 images | 1259 images | ||
| 1280 x 960 | Fine | 36 images | 38 images | 79 images | 159 images | 318 images | 641 images | 1233 images | |
| Normal | 69 images | 72 images | 149 images | 301 images | 600 images | 1209 images | 2324 images | ||
| 640 x 480 | Normal | 300 images | 315 images | 645 images | 1304 images | 2600 images | 5239 images | 10072 images | |
| Text | 2560 x 1920 | --- | 37 images | 39 images | 80 images | 163 images | 325 images | 654 images | 1259 images |
| 2048 x 1536 | --- | 69 images | 72 images | 149 images | 301 images | 600 images | 1209 images | 2325 images | |
| Motion | 320 x 240 (15 frames/sec.) |
1'23" | 1'27" | 2'57" | 5'59" | 11'56" | 24'04" | 46'17" | |
| 320 x 240 (30 frames/sec.) |
0'42" | 0'44" | 1'30" | 3'02" | 6'04" | 12'13" | 23'30" | ||
| 160 x 120 (15 frames/sec.) |
5'01" | 5'18" | 10'51" | 21'57" | 43'44" | 88'07" | 169'27" | ||
| 160 x 120 (30 frames/sec.) |
2'38" | 2'48" | 5'45" | 11'37" | 23'10" | 46'42" | 89'48" | ||
| Sound | --- | --- | 61'32" | 64'38" | 132'13" | 267'17" | 532'38" | 1073'11" | 2063'27" |
- *Number of recordable pictures and recordable time may vary depending on the manufacturer and shooting conditions.
- *Average number of images and time.
