WG Flat Adhesive Mount 2
O-CM1532
Accessory to fix the camera horizontally.
WG Accessories
Features

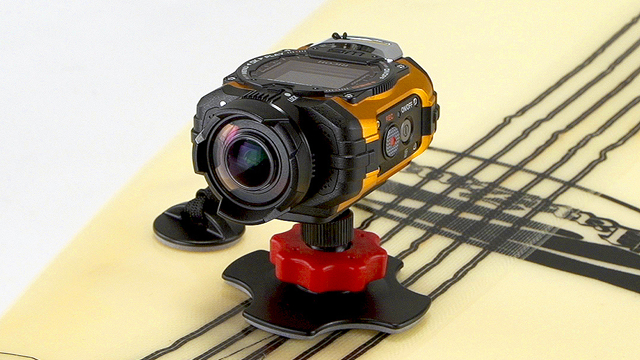

A large and powerful contact area allows the camera to be attach to a flat surface.
Applicable Models
- WG-60
- WG-M2
- WG-M1
- WG-4
- WG-3
- WG-2
- WG-1
- WG-50
- WG-30
- WG-20
- WG-10
Specifications
●Size of Contact Area: 75 mm in diameter
●Outer Dimension Body: Approx. 68 mm (Width) x Approx. 50 mm (Height) x Approx. 68 mm (Thickness) Fall Preventive Mount: Approx. 35 mm (Diameter) x approx.. 12 mm (Height)
●Weight Body: Approx. 44 g Fall Preventive Mount: Approx. 5g
Installation Method
-

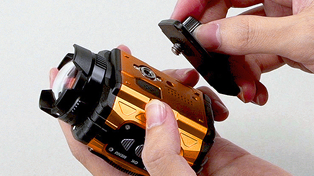

1 Attach the provided camera platform.
-

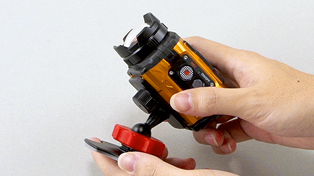

2 Mount WG-M1/M2 or WG Holder on which the camera is set.
-
3 Remove the release seal on the bottom of the adhesive mount and place the mount on a flat surface like a table.
When WG series camera, excluding WG-M1/M2 is used:
Since WG series cameras, excluding WG-M1/M2 cannot be fixed, always mount a camera to the separately sold "WG Holder O-CH1470"before attaching the camera.
*Although this camera is provided with a waterproof design equivalent to IP68, waterproof performance is not garanteed against all level of water pressure. Excessive force to the camera such as dropping, hitting, or high pressure may cause a loss in waterproof performance.
