HD PENTAX-DA 21mmF3.2AL Limited
- APS-C
- Single Focus
Thin wide-angle lens with 25mm thickness using the latest HD coating and round iris diaphragm
Wide-angle lens with a full length of only 25mm featuring superior mobility. Wide angle with suitable expanse for usage as a regular lens. A hybrid aspherical lens and floating mechanism are used for providing sharp, crystal-clear images at all shooting distances.
Black
Dedicated Case / Dedicated Hood MH-RBB43 / Dedicated Cap Included
JAN-Code / 4549212 273643
Silver Discontinued
Dedicated Case / Dedicated Hood MH-RBB43 / Dedicated Cap Included
JAN-Code / 4549212 273667
Features / Specifications
- New HD coating
- This lens uses a new-generation multicoating that reduces the reflection rate in the visible spectrum up to 50% or more than conventional multicoating. This enables the reduction of flare and ghosting for the shooting of clear, high-contrast images even under backlighting and other adverse conditions.
- New round iris diaphragm
- A round iris diaphragm is used to enable imaging of soft round out-of-focus (bokeh) effect for illumination, shimmering on water surfaces, and other point light sources.
- Wide-angle lens equivalent to focal length of 32mm and ideal for snapshots
- The new optical system design tailored specifically to digital image characteristics enables a thin body design with a thickness of only 25mm, or 32mm when the hood is attached. The focal length is equivalent to 32mm in the 35mm film format, and when combined with the pan-focus effect, makes it ideal for snapshots for capturing daily events.
- High quality machined aluminum finish
- All major components use a machined aluminum material, from the lens barrel to the hood and cap. This gives the body an exceptional solid feel to the touch.
- Unique imaging performance found only in the Limited series.
- The optical system uses hybrid aspherical lenses and a floating mechanism for providing imaging with a three-dimensional feel and high contrast, high-resolution, sharp images, and other powerful expressive capabilities found only in the Limited series of lenses.
- DA lens specifically for digital SLR cameras
- The image circle was designed to match the CCD size of 23.5mm×15.7mm for providing a simple lens design without an iris ring.
- SP (super protect) coating for protecting the lens surface
- A special coating is used on the front lens for repelling water and oils. This enables any water and oils on the lens to be easily removed for effective protection of the lens surface.
- Seamless AF/MW switching operation
- New AF/MF switching mechanism "Quick-Shift Focus System" for instantly switching to MF if the focus ring is turned after focusing by AF. This enables smooth operation without the need for any switching operation.
- Enables filter attachment without changing the lens length
- The total lens length does not change even if a 43mm filter is attached to the inner side of the hood. A 49mm filter can also be attached to the lens.
*When using with 35mm film SLR cameras, images cannot be joined at the image edges.
Type | Wide |
---|---|
Focal length (Equivalent to 35mm format) | 21mm(32mm) |
Maximum aperture | F3.2 |
Minimum aperture | F22 |
Angle of View | 68° |

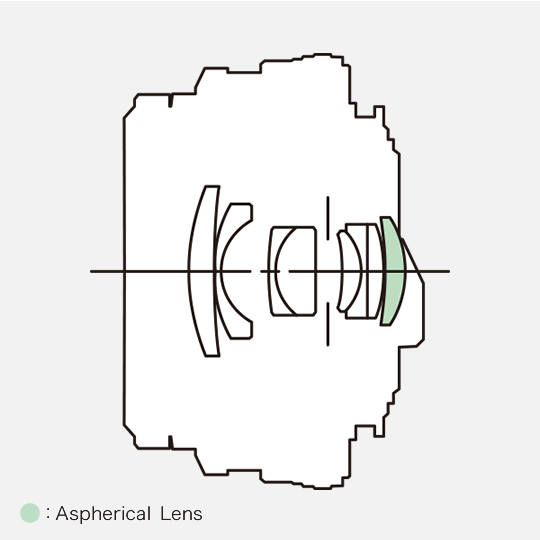

Lens construction | 8 elements / 5 groups |
No. of diaphragm blades | 7 |
Closest focusing distance | 0.2m |
Maximum reproduction ratio | 0.17x |
Filter size | 43mm or 49mm |
Diameter x length | 63 x 25 mm |
Weight | 134g |
Compatible Converters
A1.4X-S A2X-S
