Press Release

September 11, 2012

HD PENTAX-D FA645 MACRO 90mm F2.8 ED AW SR
A medium-telephoto lens ideal for portraiture,
designed for exclusive use with medium-format digital SLR cameras

HD PENTAX-D FA645 MACRO 90mm F2.8 ED AW SR

PENTAX RICOH IMAGING COMPANY, LTD. is pleased to announce the launch of the HD PENTAX-D FA645 MACRO 90mm F2.8 ED AW SR interchangeable medium-telephoto lens, designed for exclusive use with PENTAX medium-format digital SLR cameras. Thanks to the incorporation of PENTAX-original HD Coating — a newly developed, high-grade multi-layer lens coating — and the PENTAX-innovated, lens-installed SR (Shake Reduction) mechanism, this medium-telephoto lens assures bright, velvety image description that is ideal for portrait photography.

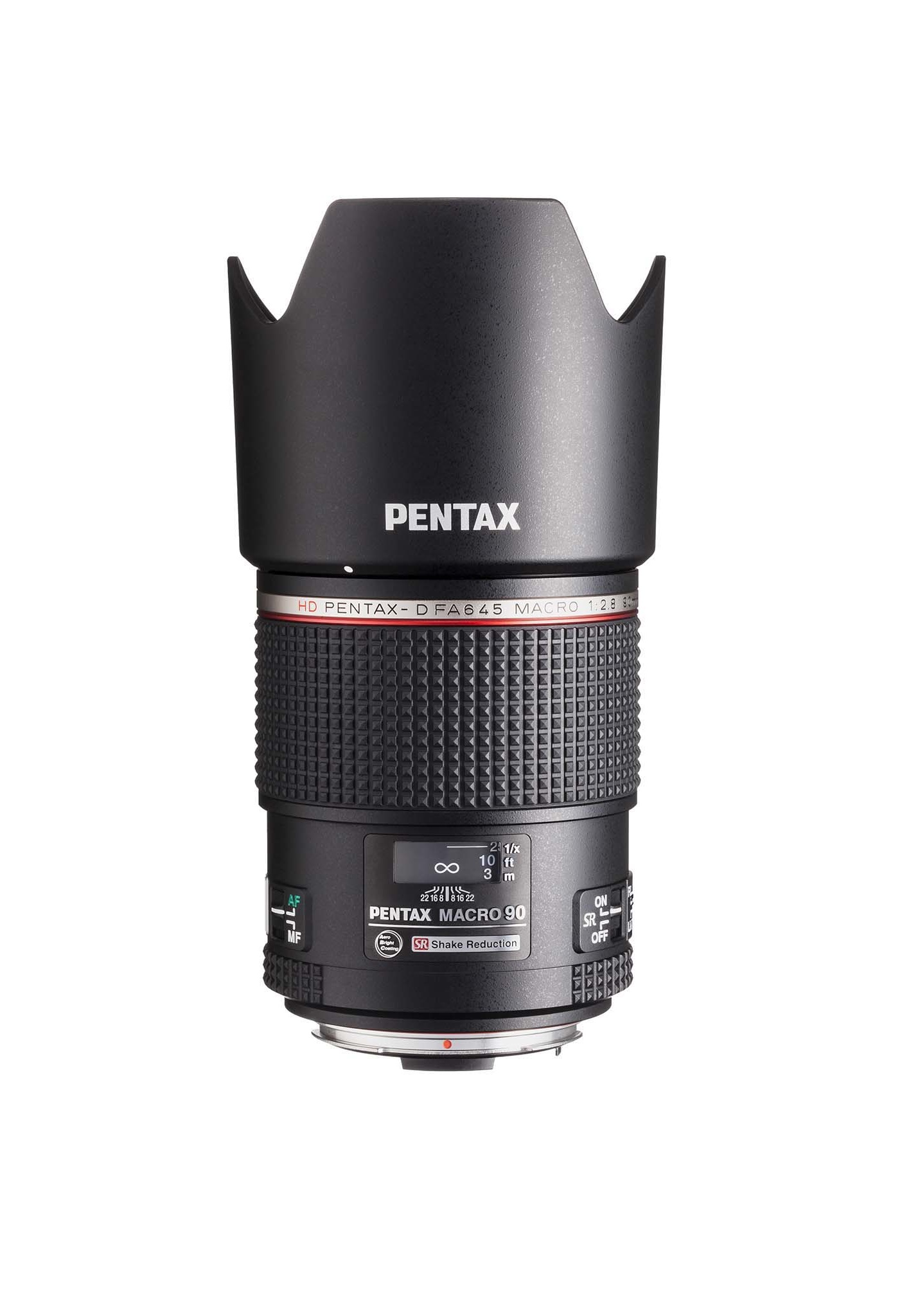

HD PENTAX-D FA645 MACRO 90mm F2.8 ED AW SR [ ⇒ Product Image]
Major Features
  1. Velvety image description ideal for portraiture

    When mounted on a PENTAX 645D medium-format digital SLR camera body, this medium-telephoto lens offers a focal length of approximately 71mm (or approximately 56mm when mounted on a PENTAX 645 film-format camera body) in the 35mm format. By incorporating two ED (extra-low dispersion) elements and one glass-molded aspherical element in its optics, it assures high-resolution image reproduction over the entire image field, while effectively minimizing chromatic aberration, a problem commonly associated with fast lenses.

    At larger apertures, this lens defines the subject with fine, delicate lines and soft, velvety edges. Coupled with a beautiful bokeh (out-of-focus rendition) effect created by a very shallow depth of field, it is an ideal lens for portrait photography. At smaller apertures, it produces sharp, solid images to make it useful for applications other than portraiture, such as scenic and still-life photography. It also offers macro photography at a maximum magnification of 0.5 times. In close-up applications, its floating mechanism effectively compensates for the curvature of the field to assure sharp, well-defined images.
  2. New HD Coating and Aero Bright Coating to optimize light transmittance and minimize reflection

    This lens is treated with a newly developed, high-grade multi-layer lens coating called HD Coating.* Compared with conventional multi-layer coatings, this new coating offers higher light transmittance with reduced reflection, to deliver sharp, clear images free of flare and ghost images, even under demanding lighting conditions such as backlight. By coupling this coating with the PENTAX-exclusive, high-grade Aero Bright Coating,** this lens optimizes light transmittance while minimizing refraction.

    * HD stands for High Definition, and signifies the lens’s capacity to reproduce images that excel in transparency, definition, resolution and rendition.
    ** A PENTAX-original lens coating process developed through the use of advanced nanotechnology. Using a silica aerogel with a uniform porous structure as the base material, this coating produces clear, high-quality images by assuring an outstanding anti-reflection performance over a broad wavelength range.

  3. PENTAX-original, lens-installed SR mechanism

    This is the first lens to incorporate the PENTAX-innovated SR (Shake Reduction) mechanism within the lens barrel. Since this mechanism effectively compensates for camera shake up to approximately 3.5 shutter steps, the user is assured of sharp, blur-free images even under conditions prone to camera shake, such as when handholding the camera at poorly lit locations without flash illumination, or when photographing sunset scenes.
  4. Dustproof, weather-resistant construction

    As a new model of the AW (All Weather) series, this lens features a dependable dustproof and weather-resistant construction with 11 special seals to effectively prevent the intrusion of dust and water into the lens interior. By mounting this lens to a PENTAX 645D camera body, the user is assured of a durable, reliable imaging system that performs superbly in demanding outdoor settings — even in rain or mist, or at locations prone to water splashes or spray.
  5. New exterior design signifying HD series

    While inheriting traditional design features of PENTAX medium-format lenses, such as a twill-patterned focus ring and metal rings, this lens features a red anodized ring at the front end of the focus ring to signify the new HD PENTAX lens series and enhance its exclusive appearance.
  6. Other features

    1. Quick-Shift Focus system for instant switching to manual-focus operation after the subject is captured in focus by the camera’s AF system
    2. SP (Super Protect) coating applied to the front surface of the lens to effectively repel water and grease and easily wipe off dust and stain
    3. Rounded diaphragm to produce a smooth, beautiful bokeh (out-of-focus rendition), while minimizing the streaking effect of point light sources
HD PENTAX-D FA645 MACRO 90mm F2.8 ED AW SR Specifications
Focal Length 90mm
(Equivalent to 71mm in 35mm format with 645D body)
(Equivalent to 56mm in 35mm format with Film645 body)
Aperture F2.8
Minimum Aperture F22
Lens Construction 11 elements in 9 groups
Angle of View 34° (with 645D body)
42.5° (with Film645 body)
Lens Mount 645AF2
Minimum Focusing Distance 0.413m (1.36ft)
Maximum Magnification 0.5x
Filter Diameter 67mm
Diaphragm control Fully Automatic
Number of Diaphragm Blades 9
Rounded aperture(F2.8-5.6)
Aperture ring N/A
Tripod compatibility N/A
SR Inside lens shake reduction
Lens hood PH-RBL77
Lens cap Lens Cap O-LC67
Lens case S120-150
Maximum Diameter & Minimum Length φ90.5mm x 111.6mm (φ3.56 inch x 4.39 inch)
Weight 1040 g / 36.69 oz
Bundle Case, Hood, Lens cap, Mount cap
Notes Aero Bright Coating
HD Coating
SP (Super Protect) Coating
AF is DC Motor only (645AF2)

* Design and Specifications is subject to change without notice.
