[Question] How to resize the captured image in the camera.

You can reduce the image size of the captured image and create a new file with a different size.

Original	Resized
4:3F / N, 3:2F 1:1F, 16:9F, 4:3F, 4:3F 4:3F / N	4:3F 4:3F
4:3F	4:3F

Caution

*You can resize only still images. Movies or MP files cannot be resized.

The procedures for this operation are shown below.

1	Press the playback button.


2	Press the [ADJ./OK] button to display the file you want to resize.


3	Press the [MENU] button when the file appears.


4	The playback menu appears. Press the [ADJ./OK] button to select [Resize], and press the button .


5	Press the [ADJ./OK] button to select or .


6	Press the [ADJ./OK] button. The display indicates that the image is being resized, and then the resized image is recorded. The original image remains unchanged.

Page Top

[Memo]

•[3:2F] image has the 3:2 aspect ratio. Resized the [3:2F] images are reduced to 4:3 images with black borders at the top and bottom.
•[16:9F] image has the 16:9 aspect ratio. Resized the [16:9F] images are reduced to 4:3 images with black borders at the top and bottom.
•[1:1F] image has the 1:1 aspect ratio. Resized [1:1F] images are reduced to 4:3 images with black borders added on the left and right sides.

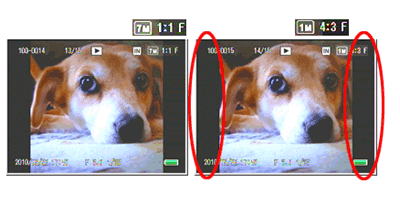

Example: If you resize the [1:1F] image (left), the created image becomes 4:3 aspect ratio with black borders added on the left and right sides (right).
1:1F resize example

Page Top

Answer ID: EDC03035
Date created: April 12, 2010
Date modified: --
Product: CX3
Operating system: --
Category: Hardware operations
