CX6 : What thumbnamil view options are available in the Playback mode ?

Single-frame view, 20 frame view, 81 frame view, Calender view, and Date view are available in the Playback mode.

Playback mode operations

  • 1 Press Playback button button to go to the Playback mode. When the camera is off, pressing and holding Playback button button longer than 1 second will start up the camera in the Playback mode.

    Playback button

  • 2 Every time turning the zoom lever toward Thumbnail button (Thumbnail), the display will change from ; single-frame view, 20 frame view, 81 frame view, Calender view, Date view.
    In the Date view, choosing an image and pressing the ADJ./OK button will change to the single-frame view. Turning the zoom lever toward Zoom (zoom) will make the view back to the last one.

    Zoom lever

Changing views

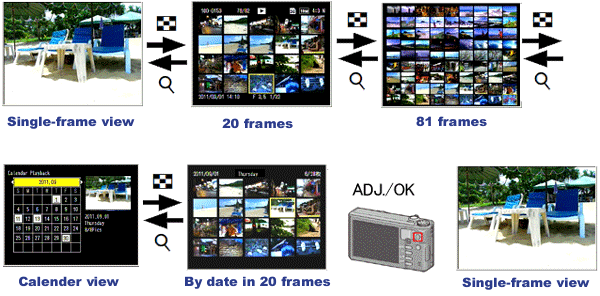

Every time turning the zoom lever toward Thumbnail button (Thumbnail), the view will change as follows.

view changes

[20 frames / 81 frames view operations]

  • To choose an image, push the ADJ./OK button to Up/Down/Right/Left directions. Press the ADJ./OK button will display the selected image as the single frame view.

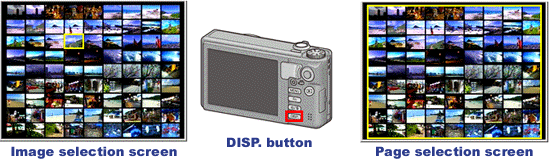

  • Pressing the DISP. button will switch view between the image selection screen and the page selection screen. To switch pages in the page selection screen, push the ADJ./OK button to Up/Down/Right/Left directions.
  • switch view

[Calender view operations]

  • The calender displays in the left, and the dates that have captured images are displayed in white. To select a date, push the ADJ./OK button to Up/Down/Right/Left directions.
  • To change month in the calender, push the ADJ./OK button to Up direction to move the cursor to the Year/Month. With being highlighted the Year/Month, push the ADJ./OK button to left, right .
  • Calender view

[Date view operations]

  • In the Date view, choosing the image by pushing the ADJ./OK button to Up/Down/Right/Left directions, and pressing the ADJ./OK button will display the selected image as the single frame view.

Answer ID: edc06100
Date created: November 16, 2011
Date modified: --
Product: CX6
Operating system: --
Category: Hardware specifications, Hardware operations
