02 STANDARD ZOOM

  • Zoom
  • High-Performance

This easy-to-use standard zoom lens covers the range from wide angle to medium telephoto.

This is an easy-to-use standard zoom lens that covers wide angle to the medium telephoto range and provides a focal length equivalent to 23.0mm to 69.0mm when the Q7 is attached. The optical system uses a total of four special optical glass lenses, including extra low-dispersion aspherical lenses and extraordinary low-dispersion aspherical lenses for enabling delineation performance with various types of chromatic aberration corrected over the entire zoom range. Closeup photography up to a minimum of 30cm is also possible over the entire zoom range.

5mm to 15mm (equivalent to 23.0mm to 69.0mm in 35mm film format) F2.8 to F4.5

Built-in lens shutter Built-in ND filter SP Coating Auto-aperture Metal-mount

Lens Front-cap / Q Lens Mount-cover Included, Hood : PH-RBB40.5 Optional
JAN-Code / 4961333 208272

Discontinued

Sample Images

  • Aperture F4.5, Shutter speed 1/100sec, Focal length 15.0mm

  • Aperture F5.0, Shutter speed 1/80sec, Focal length 13.2mm

  • Aperture F4.5, Shutter speed 1/400sec, Focal length 5.0mm

  • Aperture F3.2, Shutter speed 1/15sec, Focal length 5.3mm

  • Aperture F3.2, Shutter speed 1/60sec, Focal length 5.0mm

  • Aperture F4.5, Shutter speed 1/80sec, Focal length 5.0mm

Features / Specifications

Type Normal Zoom
Focal length (Equivalent to 35mm format) 5-15mm(23-69mm) ※Q7 Length
Maximum aperture F2.8-F4.5

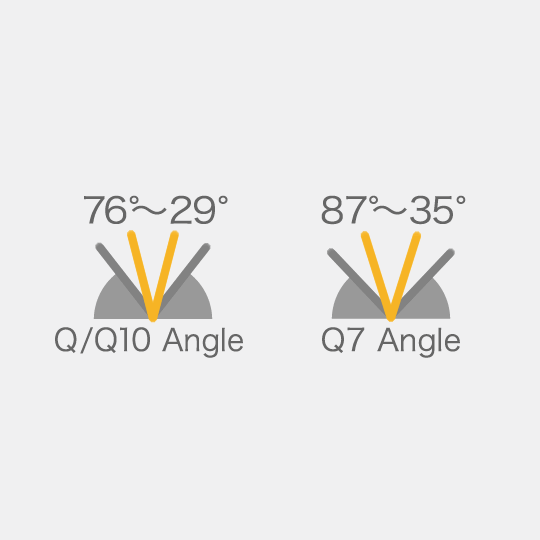

Angle of View 87°-35° ※Q7 Angle
Lens construction 8 elements / 7 groups
No. of diaphragm blades 5
Closest focusing distance 0.3m
Maximum reproduction ratio Approx. 0.06x
Filter size 40.5mm
Diameter x length 48.5 x 48 mm
Weight Approx. 96g
