smc PENTAX-FA 77mmF1.8 Limited

  • 35mm Full Frame
  • APS-C
  • Single Focus
  • FA Limited

Medium telephoto lens with a viewing sensation that closely resembles the naked eye

This lens includes a host of powerful technologies, including high-refraction glass and ghostless coating for nicely-varied delineation performance up to a minimum shooting distance of 0.7m and expressive capability with abundant gradations capable of capturing even subtle shadows. The F1.8 brightness and 9-blade aperture enables a natural out-of-focus (bokeh) effect that instills depth to the image. The Shippo-yaki finger points stand out in this compact machined aluminum body.

Body AF Aperture Ring

Black

Dedicated Case / Dedicated Hood MH-RA49 / Dedicated Cap Included
JAN-Code / 4961333 050635

Silver

Dedicated Case / Dedicated Hood MH-RA49 / Dedicated Cap Included
JAN-Code / 4961333 048267

Sample Images

  • Aperture F5.6, Shutter speed 4sec, Focal length 77.0mmm, White balance Daylight, ISO sensitivity 100, Finishing touch Landscape

    Click here to see works by users

Features / Specifications

Impressive delineation performance
The design was based on the numerical evaluation by various testing instruments and also incorporates advanced evaluation using actual images. The result is an appropriate softness at aperture opening, and as the aperture closes, enables sharp imaging performance and rendering that provides a sense of space, gradations, and three-dimensional feel.
FREE system for focusing
This lens uses the FREE system that moves only the front group while keeping the rear group stationary in the lens system when focusing. This enables stable imaging performance from near to far distances.
Design with a sense of elegance and precision
The lens body uses an aluminum material for providing a design with a sense of elegance and precision. The camera body uses "finger points" made of a green Shippo-yaki material* for providing a firmer gripping sensation.

*Shippo-yaki is one by one handmaid material, therefore the tone of a color differs individually.

Type Telephoto
Focal length (Equivalent to 35mm format) 77mm(118mm)
Maximum aperture F1.8
Minimum aperture F22
Angle of View 21°

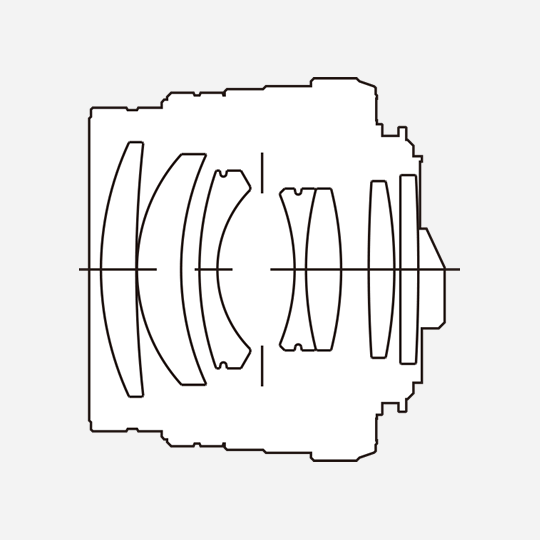

Lens construction 7 elements / 6 groups
No. of diaphragm blades 9
Closest focusing distance 0.7m
Maximum reproduction ratio 0.14x
Filter size 49mm
Diameter x length 64 x 48 mm
Weight 270g

Compatible Converters (Click here for details)

A1.4X-S A2X-S HD PENTAX-DA AF REAR CONVERTER 1.4x AW*

* When mounted, this converter closes down the lens’s maximum aperture by one stop.
