Externals

  • Nomenclature
  • Viewfinder display
  • LCD panel display

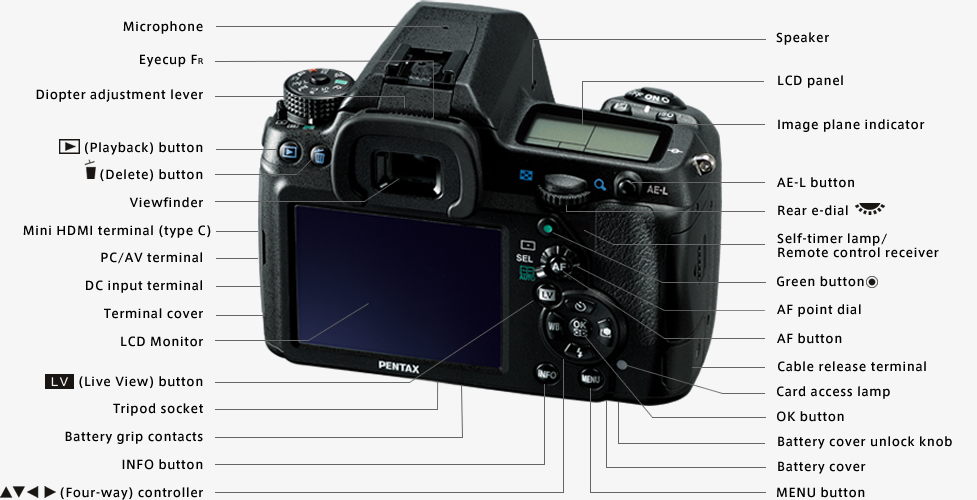

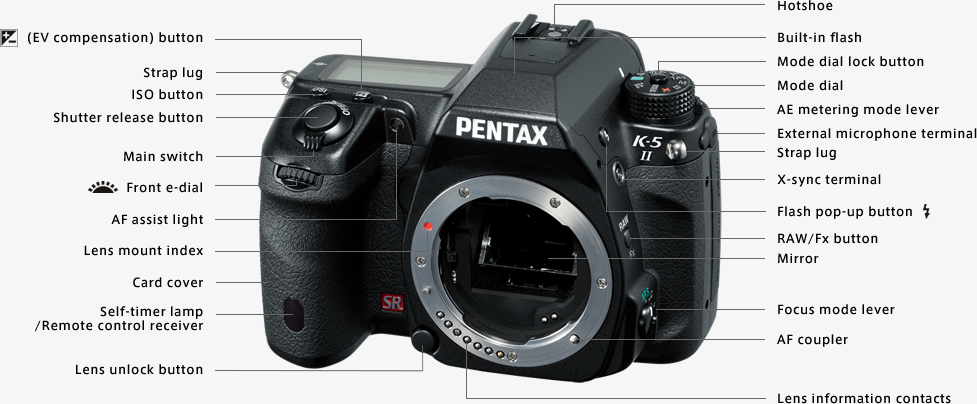

Nomenclature

Note: In these illustrations, the camera is shown with a body mount cap, a hotshoe cover and strap rings removed.

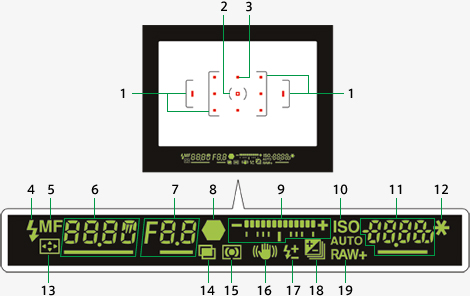

Viewfinder display

  •  1AF frame
  •  2Spot metering frame
  •  3AF point
  •  4Flash indicator
  •  5Manual focus
  •  6Shutter speed
  •  7Aperture value
  •  8In-focus indicator
  •  9EV bar scale
  • 10ISO/ISO AUTO
  • 11Sensitivity/Remaining
             image storage capacity
             (indicated after shutter release)
  • 12AE lock
  • 13AF point shift
  • 14Multiple exposure
  • 15AE metering
  • 16Shake reduction
  • 17Flash exposure
             compensation
  • 18EV compensation/
             Auto bracketing
  • 19File format

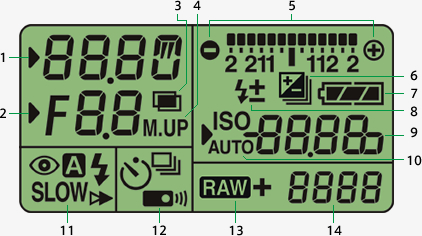

LCD panel display

  •  1Shutter speed
  •  2Aperture value
  •  3Multiple exposure
  •  4Mirror-up
  •  5EV bar scale/Digital level
  •  6EV compensation/
             Auto bracketing
  •  7Battery level
  •  8Flash exposure compensation
  •  9ISO/exposure
             compensation value
  • 10ISO/ISO AUTO
  • 11Flash mode
     : Flash charged
    (Flash recommendation with blinks)
     : Red-eye reduction
     : Auto discharge
    SLOW : Slow-shutter sync
     : Trailing-curtain sync
    W : Wireless sync
  • 12Drive mode
     : AF Single
     : AF Continuous
     : Self-timer
     : Remote control
  • 13File format
    RAW : RAW
    RAW+ : RAW+JPEG
  • 14Remaining image
             storage capacity
             USB connection mode
    Pc-S : MSC mode
    Pc-P : PTP mode
