*Waterproof performance is not guaranteed if the camera is exposed to impact such as being dropped or hit.
*The camera is not guaranteed to be free of trouble or damages under every condition.

• To enhance the waterproof performance of the camera, the front of the lens is protected by glass. As any dirt or water on the glass will affect the quality of pictures taken, the glass should be kept clean at all times.
• Wipe off any dirt or sand on the waterproof packing or the packing contact surface. The camera's waterproof function may be compromised by loose packing, or cracks or dents in the packing or packing contact surface.
• Be sure to check that the battery / card / terminal cover is securely locked before using the camera.
• The temperature range in which the camera can be used is -10°C to 40°C.
  If the camera is subjected to rapid temperature changes, condensation may from on the inside and outside of the camera. It may cause failure of the camera.
  Therefore put the camera in a bag or plastic bag and take the camera out when the difference in temperature has subsided.

• You can take it underwater for a maximum of 120 minutes and to a depth of 5 meters. After use the camera in the water, wait for 5 ~ 10 minutes to keep water-repellent of the microphone and speaker.
• Do not open the battery/ SD card/ terminal cover in the water.
• Avoid opening the battery/SD card/ terminal cover at the beach or near water.
• Avoid using the camera under the following conditions.It may momentarily be subjected to water pressure beyond that covered in the guarantee and water may enter the interior of the camera.
  1. Jumping into the water while holding the camera.
  2. Swimming while holding the camera in your hand.
  3. Using the camera in environments where the water is splashed forcefully such as whitewater and waterfalls.

• *Wipe off any water or dirt with a dry cloth after using the camera in the water. Avoid cleaning with agents such as soapy water, mild detergents, and alcohol as this may compromise the waterproof performance of the camera

• Take care of the camera in manner of below.
  (1) Be sure to check that the power is turned off.
  (2) Be sure to check that the battery / card / terminal cover is securely closed.
  (3) Then leaving the camera in a bowl of pure water for 20 minutes.
  (4) Wipe off any water with a dry cloth promptly.
  *Avoid cleaning with agents such as soapy water, mild detergents, and alcohol as this may compromise the waterproof performance of the camera.
• Avoid opening the battery/card cover at the beach or by the sea. Wait until the camera is completely dry before changing the battery or the SD Memory Card. Avoid changing the battery or card where the camera is likely to get wet or dirty, and make sure that your hands are dry
• Wipe off any dirt or sand on the waterproof packing or the packing contact surface. The camera's waterproof function may be compromised by loose packing, or cracks or dents in the packing or packing contact surface. If there is any such damage, contact your nearest PENTAX Service Center.
• Periodic checks are recommended every 1 to 2 years in order to maintain high performance. Contact your nearest PENTAX Service Center regarding changing the packing. (A charge will be made)
• The waterproof function does not apply to the camera's accessories.

• Wipe off any dirt or sand on the waterproof packing or the packing contact surface.
• Be sure to check that the battery / card / terminal cover is securely locked before using the camera.
• Avoid opening the battery / card/ terminal cover at the beach or by the sea.
• Leaving the camera on the sand at the beach may cause the camera to exceed its operating temperature (-10°C to 40°C) or cause the speaker or microphone to became blocked with sand.

*Note: The temperature range in which the camera can be used is -10°C to 40°C (14°F to 104°F), however, if the camera is subjected to rapid temperature changes, condensation may form on the inside and outside of the camera, therefore it is not recommend to use the camera in the bath or hot spring.

• Camera Strap* (0-ST20)
• USB cable* (I-USB7)
• AV cable* (I-AVC7)
• Rechargeable lithium-ion battery* (D-LI78)
• Battery charger (D-BC78)
• AC plug cord (D-C024)
• Software CD-ROM(S-SW87)
• Operating Manual
• Quick Guide

*Note: No camera case or SD (SDHC) Memory Cards are included with the camera.
*Note: Accessories marked with an asterisk (*) can also be purchased separately.

• Sports strap (O-ST81)
• Genuine leather strap (O-ST24)
• Strap * (O-ST20)
• Strap (O-ST8)
• USB cable* (I-USB7)
• AV cable* (I-AVC7)
• Rechargeable lithium-ion battery* (D-LI78)
• Camera case (O-CC81)
• Camera case (O-CC79)
• Protector jacket (O-CC932)
• Battery charger kit K-BC78
  [Battery charger* (D-BC78), AC plug cord]
• AC adapter kit K-AC78
  [AC adapter D-AC64, DC coupler D-DC78, AC plug cord]

* Accessories marked with an asterisk (*) is the same as the bundled item.

*The SD(SDHC) memory card of the following manufacturer confirms the operation.

*Note: When recording a movie, using a Class 6 or faster SD (SDHC) Memory Card . It allows you to shoot the movie without having to stop mid-way.
*Note: If saving still images, using a Class 6 or faster SD (SDHC) Memory Card. It gives no noticeable improvement in the continuous shooting speed but faster SD (SDHC) Memory card is recommended.
*Note: "Recommended" denotes only that the operation of the product has been checked by Pentax and in no way constitutes a guarantee to customers that the product is suited to their requirements.
*Note: Class 6 --- SD (SDHC) Memory Card with a guaranteed write speed faster than 6MB/s(48Mbps).

• Card that are unused or that have been used on other devices, such as another camera or a computer, must first be formatted on the Optio W80.

  * Note that formatting a card erases all the data on the card, including protected images and sound files.

• Do not bend the SD (SDCH) Memory Card or subject it to violent impact. Keep it away from water and store away from high temperature.
• Do not remove an SD (SDHC) Memory Card or turn the camera off while you are recording data or playing back images or audio, or while the camera is connected to a computer via a USB cable. Doing so will result in the corruption of stored data and/or damage to the SD (SDHC) Memory Card.
• Avoid using or storing the card where it may be exposed to static electricity or electrical interference.
• SD (SDHC) Memory Cards have a limited life-span.
  If a card is left unused for a long period, it may no longer be possible to read the data stored on the card. Important data should be backed up regularly.
• The SD Nemory Card is equipped with a write-protect switch. Setting the switch to LOCK protects the existing data by prohibiting recording of new data, deletion of existing data or formatting of the card on either the camera or a computer.
• The data on the SD Memory Card mat be deleted in the following circumstances.
  We do not accept any liability for data that is deleted
  1. Whe the SD Memory Card is mishabdled by the user.
  2. When the SD Memory caed is exposed to static electricity or electrical intererence.
  3. When the card has not been used for long time.
  4. When the card is ejected or the battery ie remmoved while the data on the card is being recorded or accessed.

* Recording pixels is fixed at 5M at the Continuous shooting mode (H).
* It is a standard in initialization. It varies depending on the writing speed of recording media, the number of record pixels, and recording conditions.

1. High-Sensitivity SR (Shake Reduction) mode (Digital SR)
   This is a shooting mode that reduces camera shake and subject blur by automatically selecting a high camera sensitivity (up to ISO 6400) depending on the ambient brightness during shooting. Note that the number of recorded pixels is fixed at 5M (2592 x 1944) in this mode.

2. Pixel Track SR (Shake Reduction) mode
The camera automatically correct for camera shake in the image.
*In the following situations Pixel Track SR is not operated.

• ISO64-100
• ISO64-200
• ISO64-400
• ISO64-800 (Initial setting)
• ISO64-1600

*If D-Range is set Highlight Correction, ISO setting is set from ISO100.

• ISO64-6400 [Digital SR] mode is selected

*When [Digital SR] mode is selected, the ISO range is fixed (ISO64-6400) and cannot be changed.
*Recording pixels is fixed at 5M.
*If D-Range is set Highlight Correction, ISO setting is set from ISO100.

* In this mode, AE metering is set to multi-segment metering.

*Conversion equivalent to a maximum of approx. 21mm.
*The number of recorded pixels for images captured with Digital Wide mode is fixed at 5M.

*Note: Face Priority mode is always ON in this mode. (The Face Priority mode may not work depending on the condition) The recordable image size is fixed at 3M in Half-Length Portrait mode

*The number of recorded pixels for Digital Panorama mode is fixed at 2M.
*The number of recorded pixels after combined image may vary according to the number of taking image or combind content.

• Interval : 10 sec.-99 min. Recording a picture interval 10 Seconds to 99 minutes
• Number of Shot : 2 images to 1000 images.
  (You can set this to up to 1000 shots. However, this cannot exceed the number of recordable images.)
• Start Delay : 0 min.~24 hours

*Note: The date imprinted on the picture with the date style set on the [Date Adjust] screan.
*Note: The date imprinted with the Date imprint function cannot be deleted.

*Note: fps: frames per second
The user can choose from the above recorded pixels and frame rate settings.

*Movie SR mode is ON in initial setting.

*Note: Depending on the condition of the recognized faces, an image may not be captured automatically because the Smile Capture function will not work.

* Operation is not guaranteed for all computers with the recommended requirements.
* Even on computers that meet the above requirements, the software may not run correctly depending on the computer settings and the other installed software applications.
* Card reader that is compatible with your computer's operating system is also required.

* Operation is not guaranteed for all computers with the recommended requirements.
*Above recommended requirements is minimum necessary environment to play back and edit movie.

*Note: If an option other than Japanese, English or Korean is selected in the initial settings, the video output is set to [PAL].

1. Press the power switch. (Capture mode)
2. Press the MENU button.
3. Press the four-way controller (right) once to open the Setting screan.
4. Press the four-way controller (down) 5 times to select [Language].
5. Press the four-way controller (right) once to open the Language screan.
6. Use the four-way controller to select the language.
7. Press the OK button.
   *Note: To change the date and time, follow the steps in [Adjusting the date]
8. Press OK button. (Back to the capture mode)

Setting menu		Select the your language

1. Press the power switch. (Capture mode)
2. Press the MENU button.
3. Press the four-way controller (right) once to open the Setting screen.
4. Press the four-way controller (down) 2 times to select [Date Adjust].
5. Press the four-way controller (right) once to display the [Date Adjust] screen.
6. Date Style] setting
   Press the four-way controller (right) once to move the selection frame.
   Use the four-way controller (up/down) to select [yy/mm/dd], [dd/mm/yy] or [mm/dd/yy].
   Next, press the four-way controller (right) once to move the selection frame.
   Use the four-way controller (up/down) to select [12h] (12-hour display) or [24h] (24-hour display).
   After making your selection, press the four-way controller (right).
7. [Date] setting ([yy/mm/dd] selected as the date style)
   Press the four-way controller (down) once to move the selection frame to [Date].
   Press the four-way controller (right) once and then use the four-way controller (up/down) to select the [Year] setting.
   Press the four-way controller (right) once and then use the four-way controller (up/down) to select the [Month] setting.
   Press the four-way controller (right) once and then use the four-way controller (up/down) to select the [Day] setting.
   After completing the settings, press the four-way controller (right).
8. Press the four-way controller (down) once to move the selection frame to [Time].
   Press the four-way controller (right) once and then use the four-way controller (up/down) to select the [Hour] setting.
   Press the four-way controller (right) once and then use the four-way controller (up/down) to select the [Minute] setting. After completing the settings, press the OK button.
9. Press the OK button. (The Setting screen reappears.)
   Press the OK button (The camera returns to Capture mode.)

Setting menu		Select the data style

Adjusting the data		Adjust the time

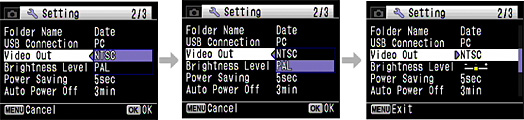

Setting the video output (changing f rom PAL to NTSC)

1. Turn the camera on. (Capture mode)
2. Press the MENU button.
3. Press the four-way controller (right) once to open the [Setting] screen.
4. Press the four-way controller (up) 7 times to select [Video Out].
5. Press the four-way controller (right) once and then use the four-way controller (up/down) to change the setting from [PAL] to [NTSC].
6. Press the OK button. [Confirming the setting]
7. Press the OK button. (The camera returns to Capture mode.)

*Note: The shutter sound and operation sounds can also be disabled in the same way.

* Is the flash mode set to [Flash Off]? Set the mode to [Auto] or [Flash On].
* The drive mode is set to [Continuous Shooting] or [Burst Shooting], the focus mode is set to [Infinity] or [1 cm Macro], or the shooting mode is set to [Movie] or [Digital Panorama].

1. The subject is too far away in a dark location.
   If the subject is too far away, the picture becomes dark because the light of the flash does not reach the subject.
   Use the following as a guide to flash photography: (with Auto selected as the ISO setting)
   * Wide-angle: Approx. 0.3 m to 3.9 m
   * Telephoto: Approx. 0.4 m to 2.5 m
2. The background is too dark.
   When you photograph someone against a dark background, even if your subject is correctly exposed, the light from the flash may not reach the background, so that it appears too dark in the resulting image. You can take a picture that perfectly captures both your subject and nighttime scenery by selecting Night Scene mode (with the [Flash On] flash mode selected) and using a tripod.

• Digital SR mode
• Digital wide mode (after composite)
• When the sensitivity is set to 3200 or 6400.
• Burst shooting mode

• Half-length Portrait mode
• Frame Composite mode (During Frame composite)
• First captured image on Digital wide mode (before composite)

• Each caputured image on Digital Panorama mode

• CALS mode

*The number of recorded pixels for images captured with Digital Wide mode is fixed at 5M.

Note: Depending on the shooting environment, the noise from zooming is recorded

1. Press the power switch. (Capture mode)
2. Press the Play-back button. (Playback mode)
3. Press the four-way controller (down). (Playback mode palette)
4. Press the four-way controller (down) to select [Image/Sound Copy].
5. Press the OK button to display the screen for selecting the copy destination.
6. Press the OK button to copy the data.
7. Press the Play-back button or press the shutter release button down halfway to return to Capture mode.

   Playback Mode Palette		Copy destination selection

*Note: This function can only be selected when an SD (SDHC) Memory Card has been inserted in the camera.

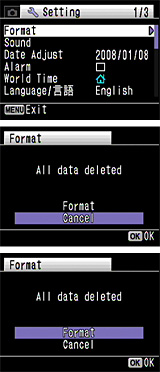

1. Press the power switch. (Capture mode)
2. Press the MENU button.
3. Press the four-way controller (right) once to display the [Setting] menu.
4. Press the four-way controller (up) once to select [Format].
5. Press the four-way controller (right) once to display the [Format] screen.
6. Press the four-way controller (up) once to select [Cancel] -> [Format].
7. Press the OK button to format the card.
8. When formatting e nds, the camera returns to Capture mode.

*Note that formatting a card erases all the data on the card, including protected images and sound files.

• Avoid using or storing the card where it may be exposed to static electricity or electrical interference.
• Do not remove an SD (SDHC) Memory Card or turn the camera off while you are recording data or playing back images or audio, or while the camera is connected to a computer via a USB cable.

1. Press the power switch. (Capture mode)
2. Press the MENU button.
3. Press the four-way controller (right) once to display [Setting].
4. Press the four-way controller (down) 7 times to select [USB Connection].
5. Press the four-way controller (right) once to display [MSC] and [PTP].
6. Press the four-way controller (down) once to select [MSC].
7. Press the OK button to change the USB connection mode to [MSC].
8. Press the MENU button. (Capture mode)

* Check that the camera and computer ends of the USB cable are both inserted fully into the connection sockets.
* If the computer has multiple USB ports, try using another port.
* If the camera is connected via a USB hub, connect it directly to the computer.

*Note: The recorded pixels setting is fixed at 3M.
*Note: The Frame Composite function cannot be used on movies or images taken in 3:2 or 16:9.

1. Press the power switch. (Capture mode)
2. Press the MENU button.
3. Press the four-way controller (up) 6 times to select [Memory] in [Rec.Mode].
4. Press the four-way controller (right) once to display [Memory].
5. Press the four-way controller (up) once to select [File No.].
6. Press the four-way controller (left/right) to clear the checkmark from the [File No.] setting.
7. Press the MENU button twice. (Capture mode)
8. If you use [Delete All], the file numbering will restart at 0001 from your next shot.

* If any of the images are protected, the numbering may not revert to 0001.
Remove the protection and use [Delete All] again, or use [Format].

*Note: The date imprinted with the Date Imprint function cannot be deleted.
*Note: The date is imprinted on the picture with the date style set in the [Date Adjust] screen.

* If the camera determines that flash is required and the flash mode is Flash On, [AUTO] remains on the display and does not change to show the sensitivity value.

1. Press the power switch. (Capture mode)
2. Press the MENU button.
3. Press the four-way co ntroller (right) once to display [Setting].
4. Press the four-way controller (down) 8 times to select [Video Out].
5. Press the f our-way controller (right) once to display [NTSC] and [PAL].
6. Press the four-way controller (up) once to select [NTSC].
7. Press the OK button. ([Setting])
8. Press the MENU button. (Capture mode)

*You cannot connect the output of this camera to a SECAM format television.

1. If [Date Imprint] is set to [On] in the camera's recording menu The date is embedded in the image itself, so the image should just be printed normally.
   * If you are printing your images using the bundled ACDSee for Pentax 3.0 software, you should uncheck the [Imprint Date] option in the print output settings when printing.
2. If [Date Imprint] is set to [Off] in the camera's recording menu
   * If printing using a print service You can have the date imprinted on your images by taking a memory card with DPOF AUTOPRINT settings in which the [Date] option is checked to a DPOF-compatible print service. Some photo processing lab services may not print using the specified settings. Check with your photo processing lab for details.
   * If printing using the bundled ACDSee for Pentax 3.0 software You should check the [Imprint Date] option in the print output settings when printing.
