Press Release

January 30, 2013

PENTAX WG-3 and PENTAX WG-3 GPS
Top-of-the-line waterproof digital compact cameras, featuring
underwater shooting to a depth of 14 meters, a large-aperture
zoom lens and dual anti-shake protection

PENTAX WG-3 Black
PENTAX WG-3
Black
PENTAX WG-3 GPS Green
PENTAX WG-3 GPS
Green

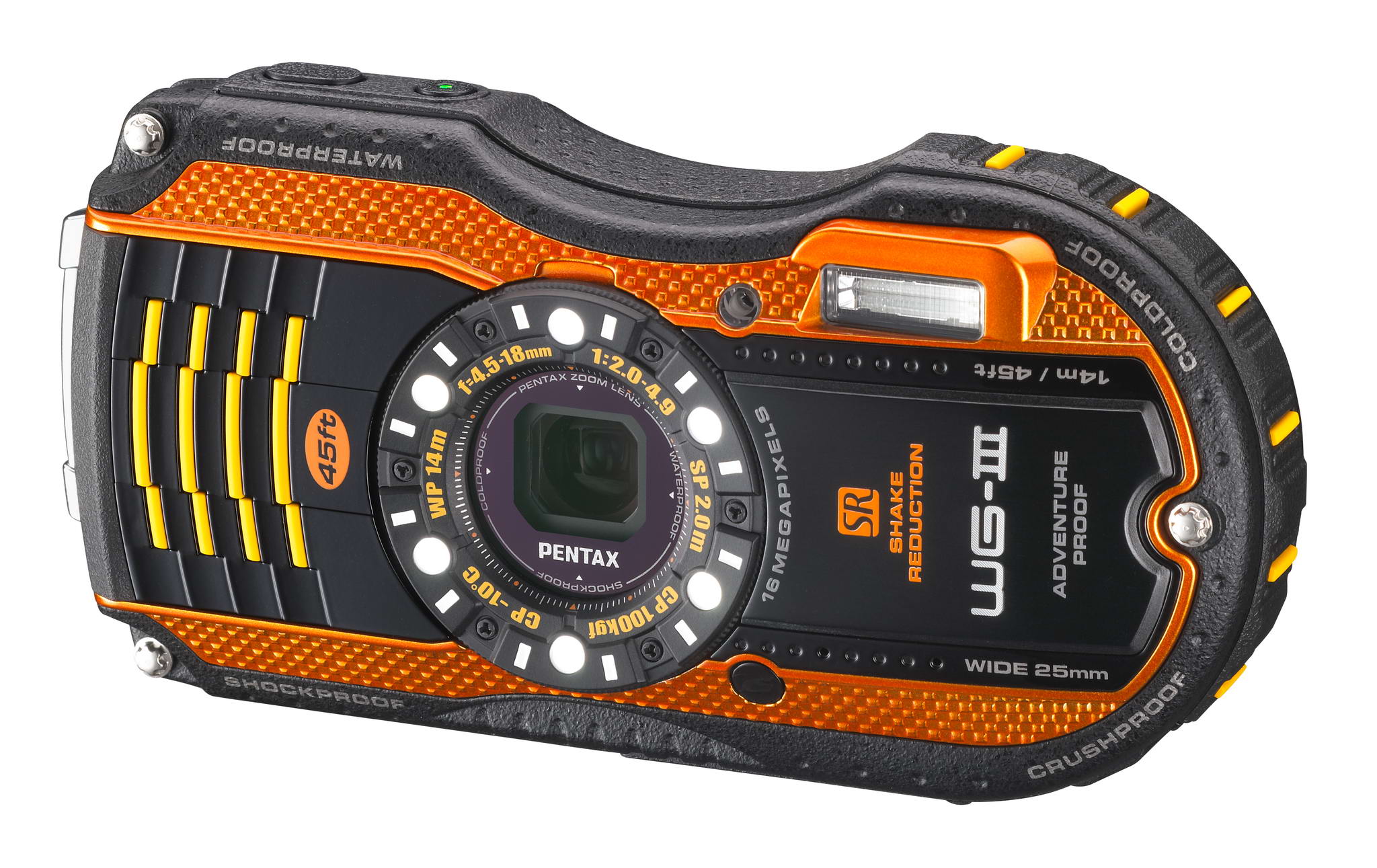

PENTAX WG-3 Orange
PENTAX WG-3
Orange PENTAX WG-3 GPS Purple
PENTAX WG-3 GPS
Purple

PENTAX RICOH IMAGING COMPANY, LTD. is pleased to announce the launch of the PENTAX WG-3 and PENTAX WG-3 GPS digital compact cameras. In addition to the best waterproof and shock-resistant performance among PENTAX waterproof digital cameras, these new models feature a high-performance, large-aperture zoom lens and a dual shake-reduction system to capture high-quality images both in the water and in the field.

Developed as the top-of-the-line models of the dependable, heavy-duty PENTAX WG series, the WG-3 and WG-3 GPS offer the series’ best waterproof performance (down to 14 meters underwater) and shock resistance (against a fall from a height of two meters). They also feature a newly designed, large-aperture, four-times optical zoom lens (with the maximum aperture of F2.0 at wide-angle end), a high-sensitivity, back-illuminated CMOS image sensor, and a new-generation imaging engine to deliver high-quality, low-noise images — even in the water, at night and indoors where the subject is poorly illuminated. Adding such outstanding features as –10°C cold resistance, dual shake reduction system, Full HD movie recording (1920 × 1080n pixels) and a high-performance, wide-frame 3.0-inch LCD monitor, the WG-3 and WG-3 GPS perform dependably and brilliantly in a wide variety of demanding outdoor scenes.

The PENTAX WG-3 GPS model also features advanced GPS functions to record position data and travel log data onto captured images — along with a pressure/altitude/depth gauge, a digital compass and a wireless recharging system — to facilitate outdoor shooting.

PENTAX WG-3
♦ Black [ ⇒ Product Image] ♦ Orange [ ⇒ Product Image]
PENTAX WG-3 GPS
♦ Green [ ⇒ Product Image] ♦ Purple [ ⇒ Product Image]
Major Features
  1. Heavy-duty construction for underwater shooting to 14 meters deep, and up to two continuous hours

    By further enhancing the watertight capability of the camera body, PENTAX has upgraded the WG-3 and WG-3 GPS’s underwater performance to 14 meters, compared to 12 meters for their predecessors, and for up to two hours of continuous operation (equivalent to IPX8 or JIS Class 8 waterproof performance). These cameras are also designed to be highly shock-resistant*, dustproof,** cold-resistant,*** and crushproof.**** All these features make the WG-3 and WG-3 GPS dependable, heavy-duty imaging partners in harsh, demanding outdoor conditions.

    * Measured under PENTAX-original testing standards (from a height of 2.0 meters, onto a surface of 5cm-thick plywood), conforming to Method 516.5-Shock of the MIL-Standard 810Fm.
    ** Measured under PENTAX-original testing standards, equivalent to IPX6 or JIS Class 6.
    *** Measured under PENTAX-original testing standards, in which the camera is proven to withstand temperatures as low as –10°C.
    **** Measured under PENTAX-original testing standards, in which the camera is loaded with weights up to 100 kgf, or kilogram force.

  2. 4X optical zoom lens with maximum aperture of F2.0 and 25mm wide-angle coverage

    The newly designed optical zoom lens offers a maximum aperture of F2.0 to capture bright, clear images with minimal noise, even under dimly lit underwater conditions. With its four-times zoom coverage from 4.5mm to 18mm (equivalent to approx. 25mm wide angle to approx. 100mm medium telephoto in the 35mm format), this versatile zoom lens accommodates a wide range of applications — from macro shooting of flowers to wide-angle shooting of spectacular landscapes. The camera’s Intelligent Zoom function also extends the zoom range to approximately 28.8 times to cover the focal length of an approximately 720mm super-telephoto lens (in the 35mm format) to capture extra-high-magnification images without compromising image quality.
  3. High-performance, back-illuminated CMOS image sensor

    The WG-3 and WG-3 GPS come equipped with a state-of-the-art, back-illuminated CMOS image sensor, which is superior in high-sensitivity and low-noise characteristics to conventional sensors and assures high-speed readout of image data signals. Coupled with a new-generation imaging engine, this image sensor delivers a top sensitivity of ISO 6400 and super-high-resolution images with 16.0 effective megapixels. These models also provide advanced image processing functions made possible by the latest super-resolution technology to assure sharp and clear images. They even offer such innovative features as a Handheld Night Snap mode, which automatically captures four images of the same scene and produces a single blur-free, composite image from them.
  4. Dual anti-shake protection for sharp, blur-free images

    The WG-3 and WG-3 GPS’s dual shake reduction system combines an image-sensor-shift-type SR (Shake Reduction) mechanism with a Digital SR mode to more effectively compensate for the adverse effects of camera shake and subject shake in shake-prone conditions, such as when capturing poorly lit subject with ambient light only, or when shooting sunset scenes.
  5. Six LED Macro Lights to assist close-up shooting

    By positioning six LED Macro Lights around the circumference of the lens barrel for macro shooting, the WG-3 and WG-3 GPS provide brighter, more uniform illumination on the subject when the Digital Microscope mode is selected.* With the Macro Lights, the user can clearly see a magnified view of a microscopic world often unnoticeable with the naked eye on the camera’s LCD monitor and effortlessly capture eye-catching images. In order to minimize camera shake and subject shake, the instant illumination enhance function allows for the use of a higher shutter speed by automatically raising the illumination level of the Macro Lights at the moment of shutter release. In addition, the Macro Lights can provide other user-friendly features, such as a Self-Portrait Assist mode to check if the subject’s face is safely captured within the picture frame using the blink of an LED lamp, and a LED lighting mode to use the Macro Lights as a lighting device in the dark.

    * When the Digital Microscope mode is selected, the recorded size is fixed at 2.0 megapixels (at 16:9 proportions).

  6. Full HD movie recording for extended shooting of high-quality movies

    The WG-3 and WG-3 GPS provide Full HD movie recording employing the H.264 recording format, allowing the user to capture high-quality, extended movie clips (1920 × 1080 pixels, 16:9 proportions) at a frame rate of 30 frames per second. They also feature a high-speed camera function* for slow-motion playback of captured movie clips and a fast-forward movie function** to simplify creative movie techniques. A micro-HDMI terminal (Type D) is also provided on their camera body for simultaneous output of Full HD movie clips and sound to external devices.

    * When this function is selected, the recorded size is fixed at 1280 × 720 pixels).
    ** When this function is selected, the recorded size is fixed at 640 × 360 pixels).

  7. Extra-large, high-resolution, wide-frame 3.0-inch LCD monitor

    These WG-series models incorporate an extra-large, high-resolution 3.0-inch color LCD monitor with horizontally extended 16:9 proportions and approximately 460,000 dots. The PENTAX-original AR (Anti-Reflection) coating minimizes annoying glare and reflections to assure a sharp, clear on-screen image even under harsh sunshine, while its wide-view design offers a clear view of the monitor from approximately 170 degrees horizontally and vertically, making it particularly useful in low and high angle shooting.
  8. Advanced GPS functions and pressure/altitude/depth gauge to facilitate outdoor shooting (available with the WG-3 GPS only)

    The WG-3 GPS comes equipped with a sophisticated GPS module, which automatically records position data* and travel log data onto captured images and adjusts the built-in clock to local time. Thanks to newly incorporated pressure sensor and digital compass, the user can not only check the pressure, altitude/underwater depth and direction of a shooting location, but also record such data onto captured images for future reference.

    * Location data recorded at the time of shooting can be confirmed with the use of the accompanying software (Windows version only).

  9. Wireless recharging (available with the WG-3 GPS only)

    The WG-3 GPS is compatible with the wireless Qi (inductive power standard) recharging system, which automatically recharges the built-in battery simply by placing the camera on a Qi-compatible commercial wireless recharger. Since this system eliminates the need to open and close the battery chamber cover, it greatly reduces the risk of foreign substances such as sand and dust clinging to special water seals installed in the cover.
  10. Other features

    1. Sub-display on the front panel to indicate time, pressure and altitude(WG-3 GPS only)
    2. Two remote control receptors (one in front and another on the back) to widen signal coverage
    3. Digital level to check the camera’s horizontal/vertical inclination
    4. Camera case O-CC135 with a belt loop (optional accessory)
    5. O-CC1352 Protector Jacket (optional accessory) to protect the camera from scratches and grime
    6. O-LA135 Lens Adapter (optional accessory) to broaden the wide-angle coverage to 20mm in the 35mm format using the DW-5 RICOH Wide Conversion Lens (now available)
    7. O-ST1352 Float Strap (optional accessory) to prevent the loss of the camera in the water
    8. Auto Picture mode to automatically select the most appropriate shooting mode from 16 different scene modes
    9. Digital Wide mode to compose an extra-wide-angle picture (equivalent to approx. 19mm wide angle in the 35mm format) from two separate images
    10. Carabiner strap (included) for hooking the camera to a backpack or other outdoor gear
    11. 12 digital filters
    12. Image viewing, editing and filing software included: MediaImpression 3.6.2 LE (Windows version compatible with Windows 8) and MediaImpression 2.2 LE (Macintosh version compatible with Mac OS X 10.8)
    13. Compatibility with Eye-Fi wireless LAN SD memory cards
PENTAX WG-3/WG-3 GPS Specifications
Lens   PENTAX zoom lens, 9 elements in 7 groups(4 aspherical elements)
Focal Length 4.5 - 18 mm
35mm equivalent focal length approx. 25 - 100mm
Aperture F2.0(W) - F4.9(T)
Zoom Optical Zoom 4X
Digital Zoom approx. 7.2X
Intelligent Zoom approx. 6X at 7M, approx. 28.8X at 640 (including optical zoom)
Motion Blur
Reduction
Still Sensor-Shift-Type (SR : Shake Reduction), Dual (SR & Pixel Track SR),
High-sensitivity anti-shake mode (Digital SR)
Movie Movie shake reduction mode (Movie SR)
Focus Type 9-point AF, Spot AF, Auto tracking AF
Focus Range
(From lens face)
Standard:
0.4m - infinity (whole zoom area)
1.31ft - infinity (whole zoom area)

Macro:
0.1 - 0.5m (whole zoom area)
0.33 - 1.64ft (whole zoom area)

1cm Macro:
0.01 - 0.3m (Mid-zoom to telephoto)
0.03 - 0.98ft (Mid-zoom to telephoto)

Infinity-landscape, Pan Focus, Manual Focus: available
Face detection   Face Detection AF&AE is available for all modes up to 32 faces. Smile Capture, Self-portrait Assist, Self-portrait Assist + Smile Capture, Blink Detection
Pet detection   Detect up to 1 pet's face(auto)
Number of
Effective pixels
  approx. 16 megapixels
Image Sensor   1/2.3" CMOS
Number of
Recorded pixels
Still 16M, 12M(1:1), 12M(16:9), 7M, 5M(16:9), 5M, 4M(16:9), 3M. 2M(16:9), 1024, 640
Movie 1920, 1280
Sensitivity
(Standard Output Sensitivity)
  Auto, Manual (ISO 125 - 6400)
White Balance   Auto, Daylight, Shade,Tungsten light, Fluorescent light(D:Daylight Color, N:Daylight White, W:White Light), Manual
Viewfinder   -
Display   3.0" wide-LCD, Wide viewing angle, approx. 460K dots, AR Coating(LCD Cover only)
Exposure Control Metering System Multi-segment metering, Center-weighted metering, Spot AE metering
Exposure Compensation ±2EV(1/3EV steps)
Scene modes   Auto Picture, Program, HDR, Handheld Night Snap, Movie, Underwater, Underwater Movie, Digital Microscope, Landscape, Flower, Portrait, Interval Shot, Interval Movie, High Speed Movie, Time-Lapse Movie, 1cm-Macro Movie, Digital SR, Surf & Snow, Kids, Pet, Sport, Night Scene, Night Scene Portrait, Fireworks, Food, Digital Wide, Digital Panorama, Report, Green
Playback modes   Slidshow, Image Rotation, Small Face Filter, Ink Rubbing Filter, Collage, Digital Filter(B&W/Sepica, Toy Camera, Retro, Color, Extract Color, Color Emphasis, High Contrast, Starburst, Soft, Fish-eye, Brightness, Miniature), HDR Filter, Original Frame, Movie Edit, Red-eye Edit, Resize, Cropping, Image Copy, Protect, DPOF, Start-up Screen
Shutter Speed   1/4000 - 1/4sec.(Mechanical and electronic shutter) 4sec at most. (Night Scene mode setting)
Built-in flash Modes Flash-on and Flash-off modes. "Red-eye" compensation function employs a pre-discharge.
Flash Range Wide:
approx. 0.2 - 10.4m (ISO Auto)
approx. 0.66 - 34 ft (ISO Auto)

Tele:
approx. 0.2 - 4.2m (ISO Auto)
approx. 0.66 - 14 ft (ISO Auto)
Drive Modes   One shot, Self-timer, Continuous Shooting, Burst Shooting, Remote Control, Auto Bracketing
Storage Media   Built-in memory (approx. 70 MB), SD/SDHC/SDXC Memory Card
Power Source   Rechargeable lithium-ion battery D-LI92, Optional AC adapter kit is also available
Battery life Still*: Approx. 240 shots (Rechargeable Lithium-ion battery)
Playback**: Approx. 200 min. (Rechargeable Lithium-ion battery)
Interfaces   USB2.0(Hi-Speed): USB/AV terminal, HDMI terminal(Type D)
Video Output   NTSC/PAL
Water proof / Dustproof   Equivalent to JIS Class 8 waterproof and JIS Class 6 dustproof capabilities.
Dimensions   approx. 125 (W) × 64.5 (H) × 32 (D)mm
approx. 4.9 (W) × 2.5 (H) × 1.3 (D) inches
Weight With battery & SD card PENTAX WG-3 GPS:
approx. 239g (loaded and ready)
approx. 8.4 oz.

PENTAX WG-3:
approx. 229g (loaded and ready)
approx. 8.1 oz.
Body PENTAX WG-3 GPS:
approx. 219g (without battery and SD memory card)
approx. 7.7 oz.

PENTAX WG-3:
approx. 209g (without battery and SD memory card)
approx. 7.4 oz.

* Recording capacity shows approximate number of shots recorded during CIPA-compliant testing. conditions. Actual performance may vary depending on operating.
** According to the result of PENTAX RICOH IMAGING in-house testing.

• Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
• This product supports PRINT Image Matching III. PRINT Image Matching enabled digital still cameras, printers and software help photographers to produce images more faithful to their intentions. Some functions are not available on printers that are not PRINT Image Matching III compliant.
Copyright 2001 Seiko Epson Corporation. All Rights Reserved.
Print Image Matching is a trademark of Seiko Epson Corporation.
The PRINT Image Matching logo is a trademark of Seiko Epson Corporation.
• Mac OS is a trademark of Apple Inc., registered in the U.S. and other countries.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• Google, Google Earth, Google map, and logo are either registered trademarks or trademarks of Google Inc.
• All other brands or product names are trademarks or registered trademarks of their respective companies.
• Design and Specifications are subject to change without notice.
