Press Release

September 11, 2012

smc PENTAX-DA 18-270mm F3.5-6.3 ED SDM
A high-magnification zoom lens featuring 15X zoom ratio and supersonic AF motor,
exclusively designed for K-mount lens-interchangeable digital cameras

smc PENTAX-DA 18-270mm F3.5-6.3 ED SDM

PENTAX RICOH IMAGING COMPANY, LTD. is pleased to announce the launch of the smc PENTAX-DA 18-270mm F3.5-6.3 ED SDM interchangeable zoom lens, designed for exclusive use with PENTAX K-mount lens-interchangeable digital cameras. This high-magnification zoom lens offers 15-times zoom ratio to cover focal lengths from wide angle to super telephoto, while its built-in supersonic AF driving mechanism achieves both smooth, quiet AF operation and a compact, lightweight body. Its extraordinary wide angle-to-long-telephoto zoom coverage makes this zoom lens extremely versatile and handy, as it allows the user to effortlessly capture a wide variety of subjects, ranging from landscapes and snapshots to sports events, without the need of lens changes.

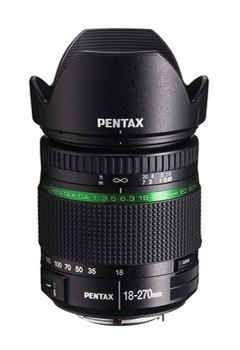

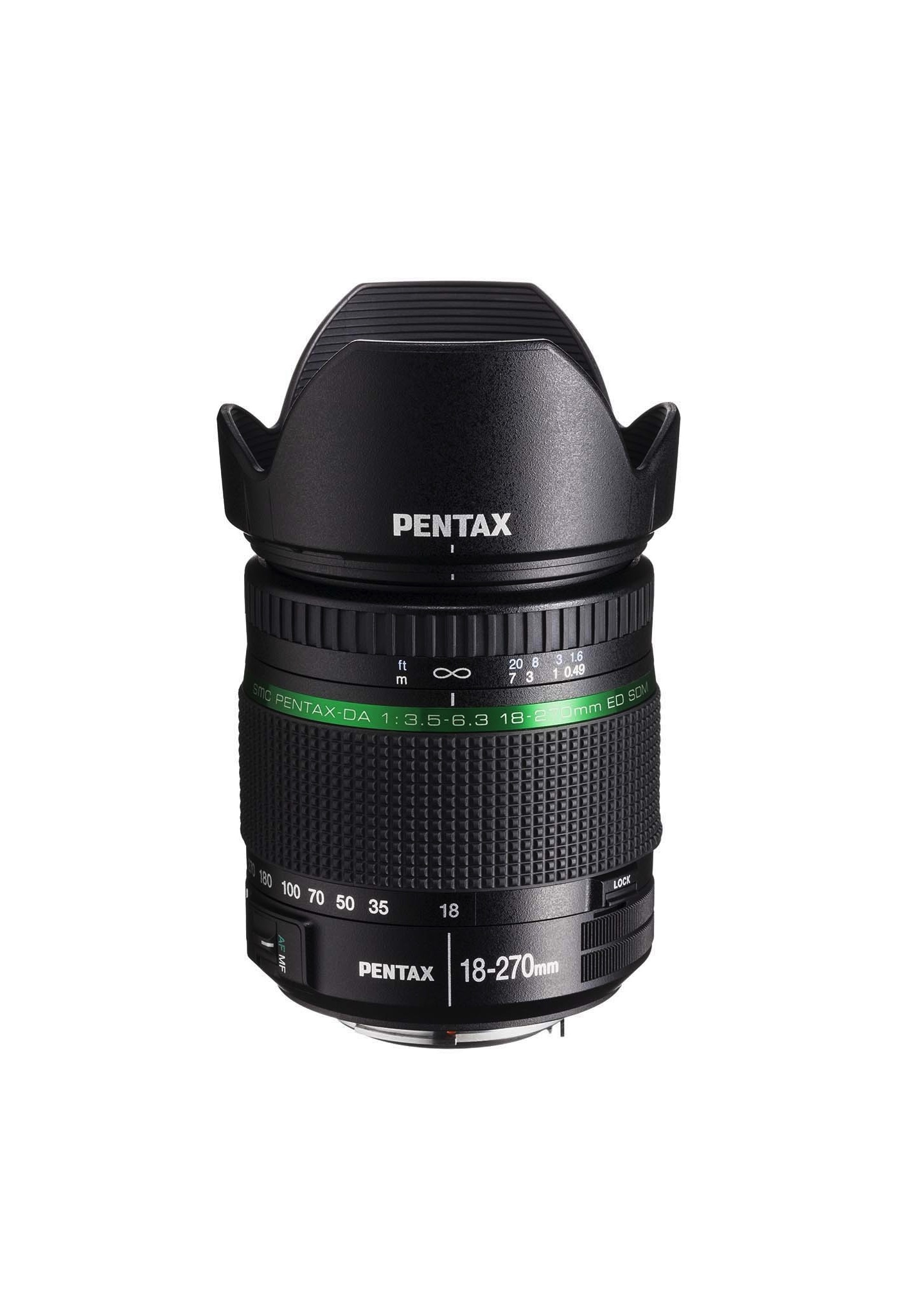

smc PENTAX-DA 18-270mm F3.5-6.3 ED SDM [ ⇒ Product Image]
Major Features
  1. 15-times zoom covering the extra wide range.

    When mounted on a PENTAX K-mount lens-interchangeable digital camera body, this zoom lens offers an 15-times zoom ratio covering focal lengths from 27.5mm wide angle to 414mm super telephoto in the 35mm format. This allows the photographer to capture a wide range of scenes and subjects without lens changes — ranging from such casual applications as scenery, snapshot and portraiture to long-range sports photography. Its newly designed optics is the key to achieving such wide zoom coverage in a compact, lightweight body, for optimal versatility and maneuverability.
  2. Supersonic AF motor (SDM)

    Thanks to the incorporation of the PENTAX-original SDM autofocus system driven by a built-in supersonic motor, this zoom lens offers exceptionally smooth and quiet autofocus operation. When mounted on an SDM-compatible PENTAX K-mount lens-interchangeable digital camera body,* the focus mode is automatically switched to SDM-assisted autofocusing to ensure dependable, flawless AF operation.

    * This lens is compatible with the K-5 II, K-5 II s, K-30, K-01, K-5, K-r, K-7, K-x, K-m, K20D, K200D, K100D Super and K10D camera bodies (with Ver. 1.30 or later firmware installed). When mounted on other camera bodies, the focus mode is automatically switched to manual.

  3. Exceptional image description

    Incorporating two extra-low dispersion (ED) elements in its optics, this zoom lens delivers bright, high-resolution images even at the edges, while effectively minimizing chromatic aberration.
  4. Other features

    1. Minimum focusing distance of 0.49m over the entire zoom range
    2. Rounded diaphragm to produce a smooth, beautiful bokeh (out-of-focus rendition), while minimizing the streaking effect of point light sources
smc PENTAX-DA 18-270mm F3.5-6.3 ED SDM Specifications
Focal Length 18-270mm
(Equivalent to 27.5-414mm in 35mm format)
Aperture F3.5-6.3
Minimum Aperture F22-45
Lens Construction 16 elements in 13 groups
Angle of View 76-6° (with PENTAX D-SLR camera body)
Lens Mount KAF3
Minimum Focusing Distance 0.49m (1.6ft)
Maximum Magnification 0.26x
Filter Diameter 62mm
Diaphragm control Fully Automatic
Number of Diaphragm Blades 7
Aperture ring N/A
Tripod compatibility N/A
Lens hood PH-RBD62
Lens cap O-LC62
Lens case S80-120
Maximum Diameter & Minimum Length 75.8mm x 89.0mm (3.0 inch x 3.5 inch)
Weight 453 g / 16.0 oz (with hood 469 g / 16.5 oz)
Bundle Hood, Lens cap, Mount cover
Notes SDM AF motor
Rounded aperture (From opening to 1.5 step)
Quick-shift Focus System:N/A
SP (Super Protect) Coating:N/A

* Design and Specifications is subject to change without notice.
